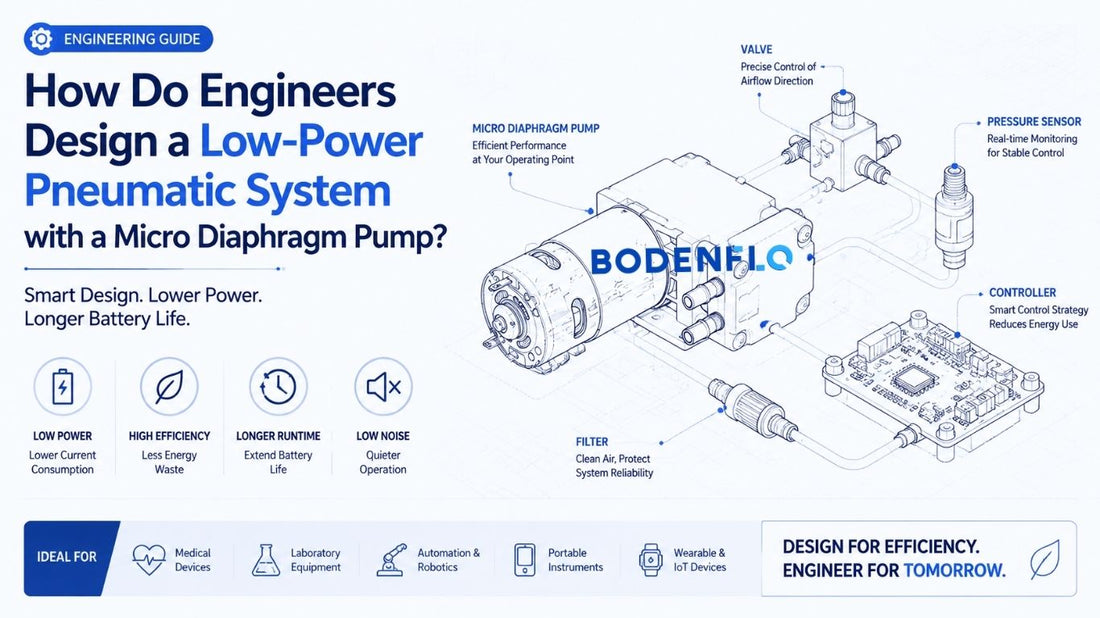

How Do Engineers Design a Low-Power Pneumatic System with a Micro Diaphragm Pump?

Your battery-powered device dies way too fast. You picked a low-current pump, but the system still gets hot and drains the battery, forcing you to use a bigger, heavier power supply.

To design a truly low-power pneumatic system, you must select a micro diaphragm pump that is efficient at your specific operating pressure. Then, reduce energy waste by optimizing the air path and using an intelligent control strategy, like duty cycle control, to run the pump only when necessary.

As a member of the BODENFLO engineering team, one of the biggest challenges I help other engineers solve is battery life. With the explosion of portable medical monitors, wearable devices, and field instruments, everyone wants their product to be smaller, lighter, and run longer. The first instinct is always to find the pump with the lowest current rating on its datasheet. But I've seen countless projects where that approach fails. A truly energy-efficient pneumatic system isn't about one magic component; it's about making the entire system work smarter, not harder. Let's dig into where all that power actually goes and how you can save it.

What Determines the Power Consumption of a Micro Diaphragm Pump System?

You're focused on the pump's rated current, but your system's power draw is still too high. This happens because the datasheet value doesn't account for the real-world load your system creates.

The total power consumption is determined by the pump's current draw under your specific operating pressure, combined with its duty cycle. High pressure, high flow, and continuous operation will always consume more energy, regardless of the pump's nominal rating.

This is the most fundamental concept to grasp. The current listed on a pump's datasheet is often measured in a "free flow" condition, with no back pressure. It's the best-case scenario. In your device, the pump has to work against resistance to create pressure or vacuum. This resistance is the "load." Just like your car uses more fuel going uphill, a pump uses more current when working against a higher load. So, looking at free-flow current alone is misleading. The real power consumption is a function of how hard the pump works and how long it works.

Here is what really determines your energy usage:

Factor	Impact on Power Consumption
Pump Current	The direct energy draw of the motor.
Operating Pressure	The higher the pressure (load), the higher the current.
Flow Requirement	Higher flow generally requires a larger, more powerful motor.
Duty Cycle	How long the pump is running vs. resting.
Control Method	An intelligent controller runs the pump less, saving power.

How Should Engineers Select a Micro Diaphragm Pump for Low-Power Applications?

You're trying to find the best pump by comparing max flow and max pressure specs. This approach often leads you to choose an inefficient pump that wastes energy in your specific application.

For low-power applications, ignore the maximum ratings. Instead, identify your exact operating point—the flow rate you need at your target pressure—and select a pump that is most efficient at that specific point. Efficiency is more important than raw power.

This is where I see the most common mistake. Engineers look for a pump that "can" reach their target pressure, but they don't look at how efficiently it gets there. A pump's efficiency varies across its performance curve. Most pumps are least efficient at their maximum pressure and maximum flow points. The sweet spot, or Best Efficiency Point (BEP), is usually somewhere in the middle of the curve. Your goal should be to select a pump where your system's typical operating point lands as close to that BEP as possible. This ensures that the least amount of electrical energy is wasted as heat, and the most is converted into useful pneumatic work. It's the key to maximizing your battery life.

When selecting a pump, your checklist should focus on:

• Required Performance: What is the actual flow and pressure you need?
• Energy Efficiency: Which pump has the lowest current draw at that specific point?
• Application Conditions: What is the required duty cycle and voltage (e.g., 3.7V for a Li-ion battery)?

Why Is Oversizing a Micro Diaphragm Pump a Common Energy Waste?

You've chosen a large, powerful pump to be "safe," but your battery is draining rapidly. This common practice of oversizing is a major source of inefficiency in portable devices.

Oversizing a pump is like using a V8 engine to power a scooter. While it has plenty of power, it's incredibly inefficient for the task, leading to higher-than-necessary current consumption, more heat, and the need for a larger battery.

I understand the impulse. Engineers are taught to design with a safety factor. If the system needs 3 L/min, choosing a 10 L/min pump seems like a safe bet. But for power consumption, this is a terrible strategy. A larger pump has a larger motor, which has a higher base current draw, even when it's not working hard. It's designed to be efficient at a much higher workload than your application requires.

You end up running it in its inefficient zone, wasting a significant amount of power without any real performance benefit for your specific task. It's always better to accurately define your requirements and then select the smallest pump that can comfortably and efficiently meet them. This approach saves power, reduces heat, allows for a smaller battery, and lowers the overall cost and size of your device.

How Does Operating Pressure Affect Micro Diaphragm Pump Energy Consumption?

Your pump runs efficiently at low pressure but becomes an energy hog when the pressure rises. This is a fundamental characteristic of how diaphragm pumps work against a load.

The power consumption of a micro diaphragm pump is directly proportional to its operating pressure. As pressure increases, the load on the motor rises, forcing it to draw more current to maintain speed and torque. Running a pump continuously near its maximum pressure rating is the fastest way to drain a battery.

Think of the pump's diaphragm pushing against the air in the system. At low pressure, it's an easy push. At high pressure, it's like pushing against a solid wall. The pump's motor must work much harder to complete each stroke. This extra work requires more electrical energy, which means a higher current draw. This is clearly visible on any pump's performance curve that includes current (often called a P-Q-I curve). The current line (I) will almost always slope upwards as the pressure (P) increases.

That's why designing your system to operate at the lowest possible pressure that still achieves the required function is a core principle of low-power pneumatic design. Avoid designing a system that forces the pump to struggle at its pressure limit.

How Can Duty Cycle Control Reduce Power Consumption?

Your pump is running 100% of the time, even when it's not needed. This continuous operation is a massive and unnecessary drain on your battery.

Most pneumatic systems don't need the pump to run continuously. By using a pressure sensor for feedback, you can implement duty cycle control: the pump only runs when needed to build or maintain pressure and then shuts off, drastically reducing average power consumption.

This is one of the most powerful strategies for saving energy. Let's say you are designing a portable blood pressure monitor.

• Traditional Method: The pump runs continuously while the cuff inflates, and a valve bleeds off excess pressure. The pump runs for the entire measurement, wasting energy.
• Optimized Method (Duty Cycle Control): The pump runs to inflate the cuff to the target pressure (e.g., 180 mmHg). A pressure sensor tells the controller the target is reached, and the controller immediately shuts the pump off. The pump is now consuming zero power. If the pressure drops slightly due to a small leak, the pump can kick on for a fraction of a second to top it off.

This "run-on-demand" approach has huge benefits:

• Massively reduces average energy consumption.
• Greatly extends the pump's operational lifespan.
• Generates far less heat and noise.

A pump that is off consumes no power. It's the simplest and most effective way to improve efficiency.

How Can Closed-Loop Control Improve Pneumatic System Efficiency?

Your simple ON/OFF system is imprecise and wastes energy by overshooting its target. Without intelligent control, you're leaving a lot of battery life on the table.

A closed-loop control system, which uses a pressure sensor to provide real-time feedback to a controller, is far more efficient than a simple open-loop (always on) system. It allows the pump to run only when needed and with just enough power, ensuring accurate pressure control while minimizing energy waste.

Moving from an open-loop to a closed-loop design is a game-changer for efficiency. An open-loop system is "dumb"—it just runs the pump at full speed and hopes for the best. A closed-loop system is "smart." Here's how it works:

1. The controller has a target pressure setpoint.
2. It turns on the pump.
3. The pressure sensor continuously measures the actual pressure in the system.
4. This real-time data is fed back to the controller.
5. The controller compares the actual pressure to the setpoint and adjusts the pump's operation (either by turning it OFF or by adjusting its speed with PWM) to precisely hit and maintain the target.

This process ensures not a single joule of energy is wasted by over-pressurizing the system. It offers tighter control, better repeatability, and is a cornerstone of modern, energy-efficient pneumatic design.

How Can Air Path Design Improve Energy Efficiency?

Your pump is working overtime, but you're not getting the performance you expect. This is often because a poorly designed air path is creating unnecessary resistance, forcing the pump to waste energy.

Every bit of resistance in your air path—long tubes, sharp bends, restrictive filters, or leaks—is a load that your pump must overcome. By designing a short, direct, and leak-free air path, you reduce the pump's workload, which directly translates to lower power consumption.

I often describe this as forcing the pump to "breathe through a straw." If the air path is too long or too narrow, the pump has to work much harder to move air through it. This wasted effort shows up as higher current draw.

Common sources of energy waste in the air path:

• Long or Narrow Tubing: Increases frictional losses.
• Excessive Fittings and Bends: Each one adds a little bit of turbulence and resistance.
• Clogged Filters: A dirty filter can dramatically increase the load on the pump.
• Leaks: The most sinister problem. The pump has to run constantly just to make up for the air that is escaping. This is a huge energy drain.

By optimizing the layout to shorten tubes, using properly sized components, and ensuring all connections are perfectly sealed, you make the pump's job easier. An easier job means less effort, and less effort means lower power consumption.

How Does Pump Technology Affect Energy Efficiency?

You're trying to choose between different motor types for your pump. The motor technology you select is one of the single biggest factors in the overall energy efficiency of the system.

Brushless DC (BLDC) motors are significantly more energy-efficient than traditional brushed DC motors. For any battery-powered device where long life and low power are critical, a micro diaphragm pump with a BLDC motor is the superior choice due to its higher efficiency and better control capabilities.

This is a key decision early in the design process. While both motor types can power a pump, they have very different efficiency profiles.

Brushed DC Motor Pumps

• Advantages: Lower initial cost, simple two-wire control.
• Disadvantages: Physical brushes create friction and wear out over time. This friction is wasted energy (heat). Their efficiency is generally lower, typically in the 50-65% range.

Brushless DC (BLDC) Motor Pumps

• Advantages: No brushes means no friction, leading to much higher efficiency (often 75-85% or more). They have a significantly longer operational lifespan. They also allow for precise speed control via PWM, which is essential for advanced power-saving strategies.
• Disadvantages: Higher initial cost and require more complex control electronics.

For any application that runs on a battery or requires thousands of hours of reliable operation, the energy savings and longevity of a BLDC pump almost always outweigh its higher initial cost.

What Should Engineers Test When Developing a Low-Power Pneumatic System?

Your design is complete, but does it actually meet your battery life targets? Without comprehensive testing of the final product, your power consumption numbers are just theoretical.

To validate a low-power design, you must test the complete, assembled system, not just the pump. Measure the actual current draw at the defined operating pressure, perform battery rundown tests to verify runtime, and monitor thermal performance to ensure there is no overheating.

Trust, but verify. This is the final and most critical step. Your calculations and simulations are a great start, but real-world testing is the only way to know for sure. Testing isolated components isn't enough; you need to see how everything interacts within the final product.

Essential Tests for Low-Power Systems

Test	Purpose	What to Look For
Current Test	Verify power consumption under real load.	Is the current draw at the target pressure within specification?
Battery Rundown Test	Confirm the actual device runtime.	Does the device run for the required number of hours or cycles on a full charge?
Pressure Test	Ensure performance isn't compromised.	Does the system still reach its target pressure in the required time?
Thermal Test	Monitor for wasted energy (heat).	Does any component, especially the pump or controller, get too hot during operation?
Life Test	Verify long-term reliability and efficiency.	Does the power consumption remain stable over thousands of hours of operation?

This complete system validation gives you the confidence that your design is not only functional but also truly energy-efficient.

How Can Engineers Build a More Energy-Efficient Pneumatic System?

Building a low-power pneumatic system isn't about finding the pump with the lowest datasheet current. It's about a holistic design process that includes right-sizing the pump, optimizing the operating point, minimizing system resistance, and using intelligent control. BODENFLO provides expert OEM engineering support and a wide range of micro diaphragm pumps for your portable and compact applications. Contact our team at info@bodenpump.com to build a more efficient product.
