How to Build a Portable Vacuum System with a Micro Pump: A Practical Engineering Guide
Share
Portable vacuum systems are used in a growing number of products, from handheld medical devices and portable gas analyzers to battery-powered vacuum grippers and field inspection tools. As products become smaller, lighter, and more mobile, engineers face increasing pressure to integrate reliable vacuum generation into compact spaces while maintaining low power consumption and long battery life.
Many developers assume that building a portable vacuum system is simply a matter of connecting a micro vacuum pump to a battery. In reality, system performance depends on how well the pump, battery, tubing, sensors, and control electronics work together.
This guide explains how to design a reliable portable vacuum system using a micro vacuum pump and highlights common mistakes that can affect performance, efficiency, and product reliability.
What Is a Portable Vacuum System and How Does It Work?
A portable vacuum system is a self-contained device that generates negative pressure without requiring an external compressed air source or wall power supply.

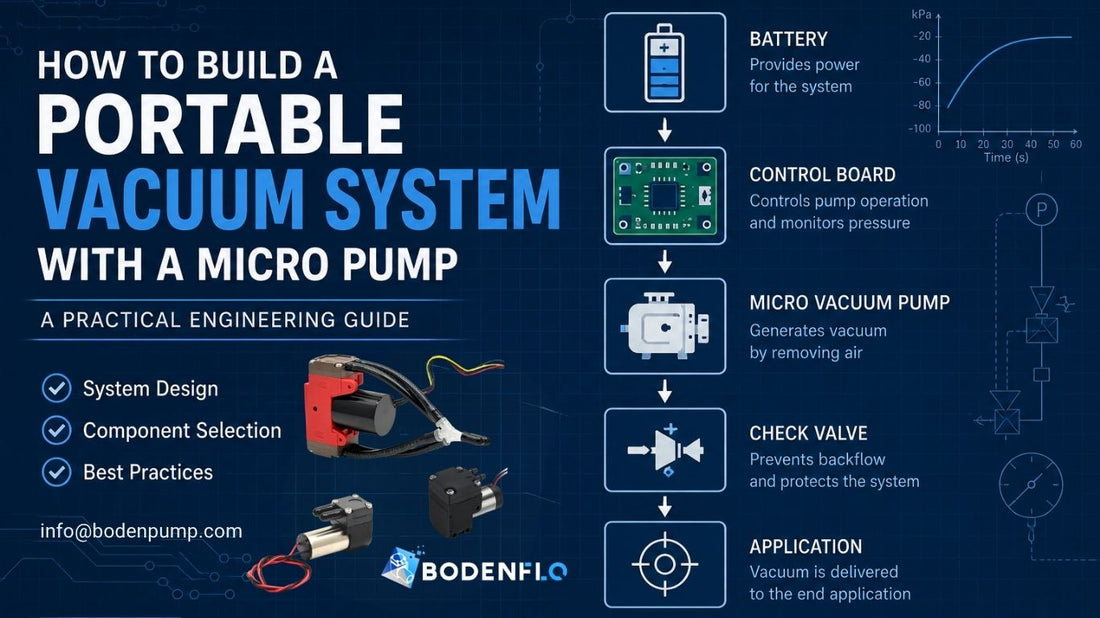

Most battery powered vacuum systems include:
- A micro vacuum pump
- A rechargeable battery
- Tubing and fittings
- A pressure sensor or vacuum switch
- A control board
The basic working principle is simple:
The battery powers the micro vacuum pump, which removes air from a chamber or application. As pressure decreases, a vacuum is created. A sensor monitors the vacuum level and controls the pump to maintain the desired pressure.
Common applications include:
- Portable medical suction devices
- Vacuum grippers
- Gas sampling instruments
- Leak detection equipment
- Laboratory instruments
- Wearable pneumatic devices
How to Choose the Right Micro Vacuum Pump for a Portable Vacuum System
The micro vacuum pump is the most important component in the system.
Selecting the wrong pump often leads to poor vacuum performance, excessive battery consumption, and unnecessary costs.
What Vacuum Level Does Your Application Require?
Different applications require different vacuum levels.
| Application | Typical Vacuum Requirement |
|---|---|
| Gas Sampling | -10 to -30 kPa |
| Vacuum Gripping | -40 to -60 kPa |
| Medical Suction | -60 to -80 kPa |
| Leak Testing | -70 to -90 kPa |
A common engineering mistake is choosing the highest vacuum pump available. Higher vacuum capability often means higher power consumption and does not necessarily improve system performance.
How Much Flow Rate Does a Portable Vacuum System Need?
Flow rate determines how quickly vacuum is generated.
A system with a large chamber volume may require a higher-flow micro vacuum pump to achieve acceptable response times.
For example:
- Small sensors may need less than 1 L/min
- Portable vacuum grippers may require 3–10 L/min
- Medical devices may require even higher airflow
Brushless vs Brushed Micro Vacuum Pumps
For battery powered vacuum systems, brushless pumps are often preferred because they offer:
- Longer service life
- Lower maintenance
- Higher efficiency
- Better reliability
Although brushless pumps may have a higher initial cost, they typically reduce total ownership costs over the life of the product.
Choosing the Best Battery for a Battery Powered Vacuum Pump
Battery selection directly affects portability and runtime.
Even an efficient micro vacuum pump cannot compensate for an undersized battery.
14500 vs 18650 vs 21700 Lithium Batteries
| Battery Type | Typical Capacity | Best For |
|---|---|---|
| 14500 | 600–1200 mAh | Ultra-compact devices |
| 18650 | 2000–3500 mAh | General portable systems |
| 21700 | 4000–5000 mAh | Long runtime applications |
For most portable vacuum pump designs, 18650 lithium batteries provide the best balance between size, cost, and operating time.
How to Calculate Battery Runtime
Battery runtime can be estimated using:
Runtime = Battery Capacity ÷ Pump Current
For example, a 2000mAh battery powering a 500mA pump could theoretically operate for approximately four hours.
Actual operating time will vary depending on duty cycle, controller efficiency, and battery condition.
Battery Protection Is Essential
Every portable vacuum system should include:
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short-circuit protection
Proper battery management improves safety and extends battery life.
Tubing and Air Path Design for Micro Vacuum Pump Systems
Many vacuum system problems originate from poor tubing design rather than the pump itself.
Choosing the Right Tubing Material
Different applications require different tubing materials.
| Material | Advantages |
|---|---|
| Silicone | Flexible and economical |
| PVC | Cost-effective |
| PTFE | Excellent chemical resistance |
| FKM | Suitable for aggressive gases and refrigerants |
How Tubing Length Affects Vacuum Performance
Long tubing increases flow resistance and slows vacuum generation.
To improve efficiency:
- Keep tubing as short as possible
- Avoid unnecessary connectors
- Minimize sharp bends
- Select appropriate tubing diameters
Preventing Air Leaks
Even small leaks can significantly reduce vacuum performance.
Engineers should carefully inspect:
- Hose connections
- Barbed fittings
- Check valves
- Reservoir seals
Leak testing should always be part of product validation.
Why Pressure Sensors and Vacuum Switches Improve Portable Vacuum System Performance
Allowing a micro vacuum pump to run continuously wastes energy and shortens pump life.
Mechanical Vacuum Switches
Advantages:
- Simple
- Low cost
- Easy integration
Limitations:
- Limited accuracy
- Fixed switching points
Electronic Pressure Sensors
Advantages:
- Precise control
- Adjustable settings
- Smart monitoring capabilities
A typical vacuum control strategy may stop the pump at -55 kPa and restart it when pressure rises to -45 kPa.
This significantly reduces battery consumption while maintaining stable vacuum performance.
Designing the Control Board for a Portable Vacuum Pump System
The control board acts as the brain of the portable vacuum system.
Typical functions include:
- Pump control
- Battery charging
- Battery protection
- Pressure monitoring
- User interface management
Useful Features for Modern Portable Vacuum Systems
Many manufacturers now incorporate:
- One-button operation
- LED battery indicators
- Low battery warnings
- Automatic shutdown
- PWM speed control
These features improve user experience while reducing energy consumption.
Should You Add a Vacuum Reservoir to Your Portable Vacuum System?
A vacuum reservoir stores negative pressure and acts as a buffer between the pump and the application.
Benefits of Using a Vacuum Reservoir
Adding a reservoir can:
- Improve vacuum stability
- Reduce pump cycling
- Lower operating noise
- Extend pump life
Applications That Benefit Most
Vacuum reservoirs are particularly useful in:
- Medical devices
- Vacuum gripping systems
- Leak testing equipment
- Laboratory instruments
For applications with fluctuating vacuum demand, a reservoir often improves overall system performance.
Common Portable Vacuum System Design Problems and Solutions
Why Does Vacuum Build Too Slowly?
Possible causes include:
- Insufficient pump flow
- Excessive tubing length
- Air leakage
- Oversized vacuum chamber
Why Does Battery Runtime Fall Short?
Common causes include:
- Continuous pump operation
- Oversized vacuum pump
- Insufficient battery capacity
Why Is the Vacuum Pump Too Noisy?
Noise may originate from:
- Mechanical vibration
- Airflow pulsation
- Rigid mounting structures
Using silicone vibration mounts and mufflers can significantly reduce noise levels.
Why Can't the System Maintain Vacuum?
Potential causes include:
- Leaking fittings
- Faulty check valves
- Damaged diaphragms
Always perform leak testing before replacing the pump.
Portable Vacuum System Design Checklist for Engineers
Before releasing a product, engineers should verify:
✔ Vacuum level meets application requirements
✔ Flow rate provides acceptable response time
✔ Battery capacity supports target runtime
✔ Tubing design minimizes pressure losses
✔ Pressure feedback control is implemented
✔ Leak testing has been completed
✔ Thermal performance has been evaluated
✔ Noise levels meet product specifications
✔ Battery protection functions are enabled
Following this checklist can significantly reduce development risks and improve long-term reliability.
Conclusion: Building a Reliable Portable Vacuum System with a Micro Vacuum Pump
A successful portable vacuum system is the result of system-level engineering rather than individual component selection. While choosing the right micro vacuum pump is important, battery design, tubing layout, pressure control, and electronic integration all contribute to overall performance.
By carefully balancing vacuum requirements, flow rate, energy consumption, and control strategies, engineers can develop battery powered vacuum systems that are compact, efficient, reliable, and suitable for demanding real-world applications.
Whether you are designing a portable medical device, a gas sampling instrument, or a battery powered vacuum gripper, understanding these design principles will help improve performance while reducing development time and integration risks.
