Diaphragm Brushless Pump 24V 4.6L Micro Vacuum Pump BD-05TVB-S BODENFLO

Optimize your system performance with the BD-05TVB-S Diaphragm Brushless Pump, a compact and high-efficiency micro vacuum solution designed for precision gas handling and long-term OEM integration.This 24V Quiet Micro Vacuum Pump adopts a high-end DC brushless motor and advanced diaphragm structure to deliver stable airflow, strong vacuum capability, and ultra-long service life. With low power consumption and compact dimensions, it is ideal for analytical instruments, gas sampling equipment, and medical devices that require reliable and continuous operation.

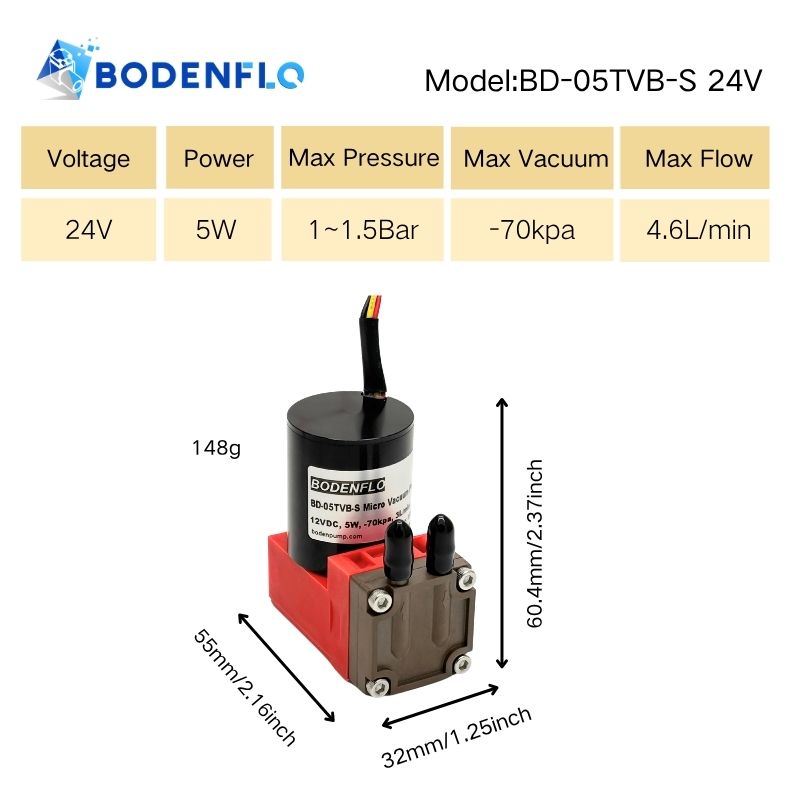

BD-05TVB-S Technical Specifications

• Name: Brushless Vacuum Pump
• Model: BD-05TVB-S
• Motor Type: High-end DC Brushless Electric Motor
• Rated Voltage: 24V DC
• Max Power: 5 W
• Max Flow Rate:

1. Float Flow Meter:4.6 L/min (4.6LPM / 276L/H)
2. Electronic Flow Meter:3.0 L/min (3 LPM / 180 L/H)

• Max Positive Pressure: 1.0 – 1.5 bar (100-150kPa / 0.1-0.15 MPa / 14.50-21.67 psi)
• Noise:60dB

 General Specifications

• Motor Type:  DC Brushless Motor
• Waterproof Level:  IP20
• Service Life:  >10,000 Hours
• Dimensions:  60.4 × 32 × 55 mm(2.37/2.16/1.25inch)
• Weight: 148 g
• Storage Temperature Range:  –40 ℃ ~ 60 ℃
• Operating Temperature (Ambient):  –20 ℃ ~ 50 ℃
• Medium Temperature Range:  –10 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05TVB-S Micro Diaphragm Pump Youtube video

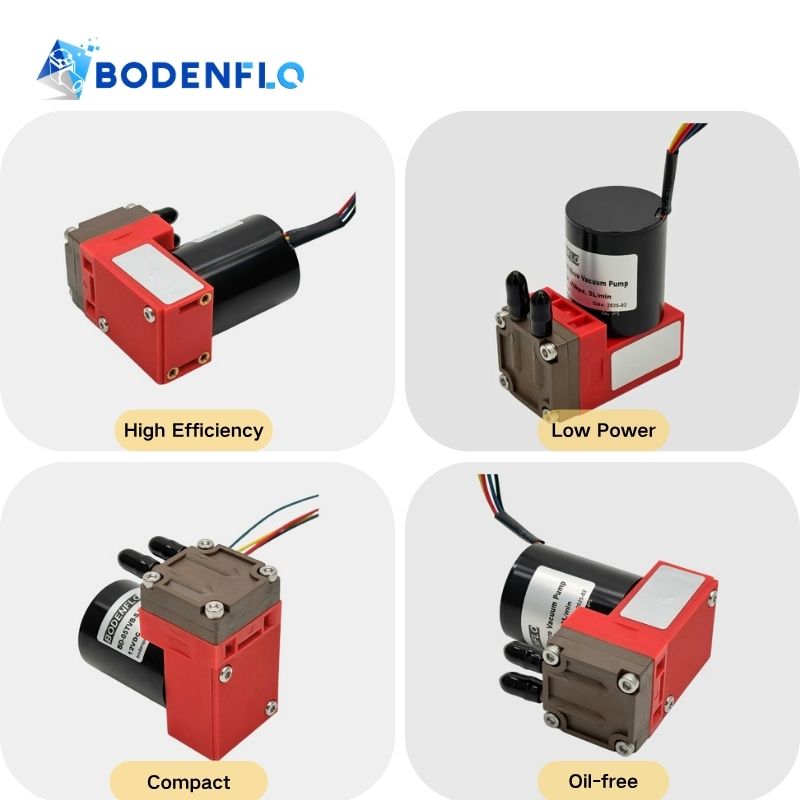

Key Features of 24V Brushless Diaphragm Pump

• Advanced Diaphragm Brushless Technology
  Combines a high-performance diaphragm mechanism with a brushless motor for stable airflow and reduced mechanical wear.
• Quiet and Energy Efficient Operation
  As a 24V Quiet Micro Vacuum Pump, it operates with low vibration and low power consumption, making it suitable for sensitive instruments.
• Compact and Lightweight Design
  The small footprint allows easy integration into portable equipment, laboratory devices, and embedded systems.
• Strong Vacuum Capability
  Provides up to –70 kPa vacuum pressure, enabling reliable gas sampling and vacuum-driven processes.
• Long Service Life
  The brushless motor ensures over 10,000 hours of continuous operation, minimizing maintenance and downtime.

Applications

• Gas Sampling & Environmental Monitoring
  Ideal for portable gas analyzers and environmental monitoring systems requiring stable vacuum generation.
• Medical & Laboratory Instruments
  Suitable for diagnostic devices, analytical equipment, and precision laboratory applications.
• Industrial Automation Equipment
  Provides reliable vacuum and airflow for automated systems and precision instrumentation.

Manufacturer Information:

Brand: BODENFLO

Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, ROHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
