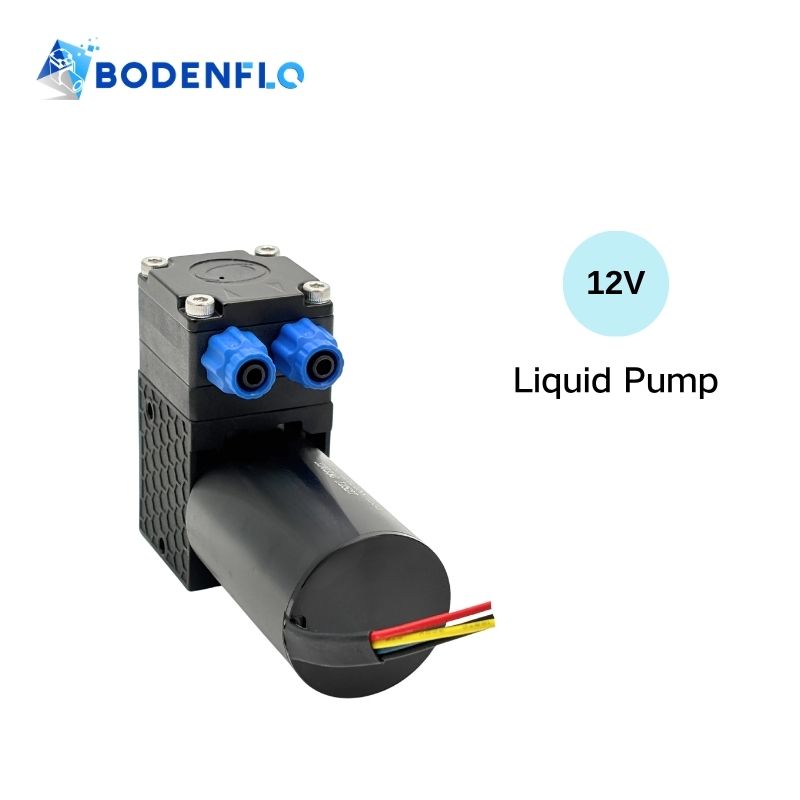

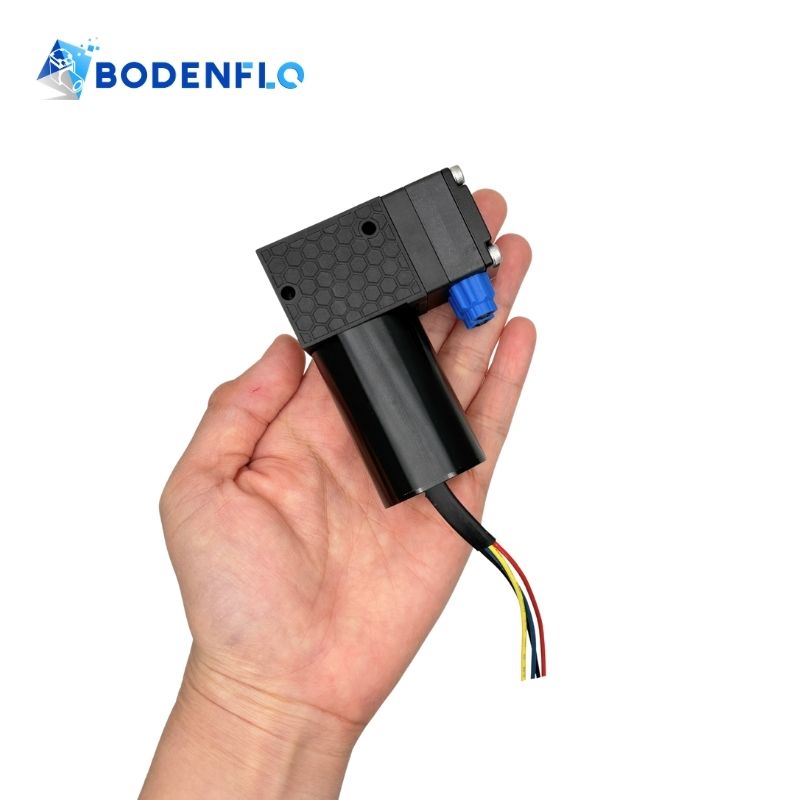

Miniature Liquid Pump 300 mL Brushless Quiet Vacuum Pump BD-05TF300WB BODENFLO

This compact diaphragm pump provides consistent, low-pulsation liquid flow with reliable suction, optimized for energy efficiency. Built with corrosion-resistant materials, it delivers dependable performance for medical rehabilitation devices, laboratory instruments, digital printing equipment, and small fluid handling systems in demanding applications.

BD-05TF300WB Technical Specifications:

• Name: Miniature gas-liquid pump
• Model: BD-05TF300WB
• Rated Voltage: 12V DC
• Max Power: 15 W
• Max Suction Lift: 6 mWg (–60 kPa / –0.06 MPa / –8.7 psi)
• Max Water Flow: 300 mL/min (0.30 LPM / 18 L/H)（Liquid flow, water）
• Max Air Flow: 2.6 L/min (2.6 LPM / 156 L/H)
• Max Vacuum: –60 kPa (–0.06 MPa / –8.7 psi)
• Max Continuous lift Head: 10 mWg (1 bar / 0.1 MPa / 14.5 psi)
• Max Instantaneous lift Head: 17 mWg (1.7 bar / 0.17 MPa / 24.7 psi) (intermittent work)
• Max Pressure: 1.7Bar (170kPa / 0.17 MPa)

General Specifications:

• Medium: Water / Liquid / Air
• Motor Type: Brushless Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS
• Valve Material: EPDM
• Diaphragm Material: EPDM
• Life time: 6000–8000 Hours
• Noise:  ＜60dB
• Dimention: 69 × 30 × 58 mm (2.72 × 1.18 × 2.28 inch)
• Weight: 170g (approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~45℃

Product Showcase Video

Video link: BD-05TF300WB 300ml/min  Miniature Liquid Pump Youtube video

Key Features:

• Stable Water Flow – Ensures precise liquid transfer for laboratory instruments, medical rehabilitation devices, and compact fluid systems.
• High Pressure Capacity – Handles continuous and intermittent high-head operations without compromising performance, ideal for dosing, ink transfer, and mini automation modules.
• Low Pulsation Design – Reduces vibration and flow fluctuations to maintain accuracy in sensitive and precision systems.
• Corrosion-Resistant Materials – Pump head, diaphragm, and valves resist chemical wear, supporting long-term operation in neutral and corrosive liquid environments.
• Durable & Long-Lasting – Brushless DC motor combined with a high-strength PA66 body extends service life under continuous or intermittent use, lowering maintenance needs.
• Customized Design – Supports OEM/ODM development according to the customer’s system and allows idling or operation in harsh environments.

Applications:

• Digital Printing Equipment – Suitable for stable ink transfer and precise micro-fluid control in compact digital printing and marking systems.
• Biochemical Analyzers – Supports accurate liquid dosing and sample transport in automated biochemical analysis equipment.
• Chemical Analysis Systems – Enables reliable micro-liquid handling for reagent delivery and analytical testing processes.
• Liquid Sampling Devices – Ideal for controlled liquid collection and transfer in portable or embedded sampling instruments.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
