12V Air Pump 3–6 L/min High Pressure 2–3 Bar Micro Diaphragm Pump BD-03AB BODENFLO

Designed for compact air pressure and transfer applications, the BD-03AB Series combines a 12V brushless motor, 3–6 L/min airflow, and 2–3 bar pressure performance in a compact micro diaphragm pump platform. Three versions are available with different flow, current, and pressure levels while sharing the same installation dimensions.

BD-03AB3L Technical Specifications:

• Name: 12V Air Pump
• Model: BD-03AB3L
• Rated Voltage: 12V DC
• Current: ≤0.3 A
• Max Pressure: ≥2 bar (200 kPa / 0.20 MPa)
• Max Flow: ≥3 L/min (3 LPM / 180 L/H)
• Noise: ★

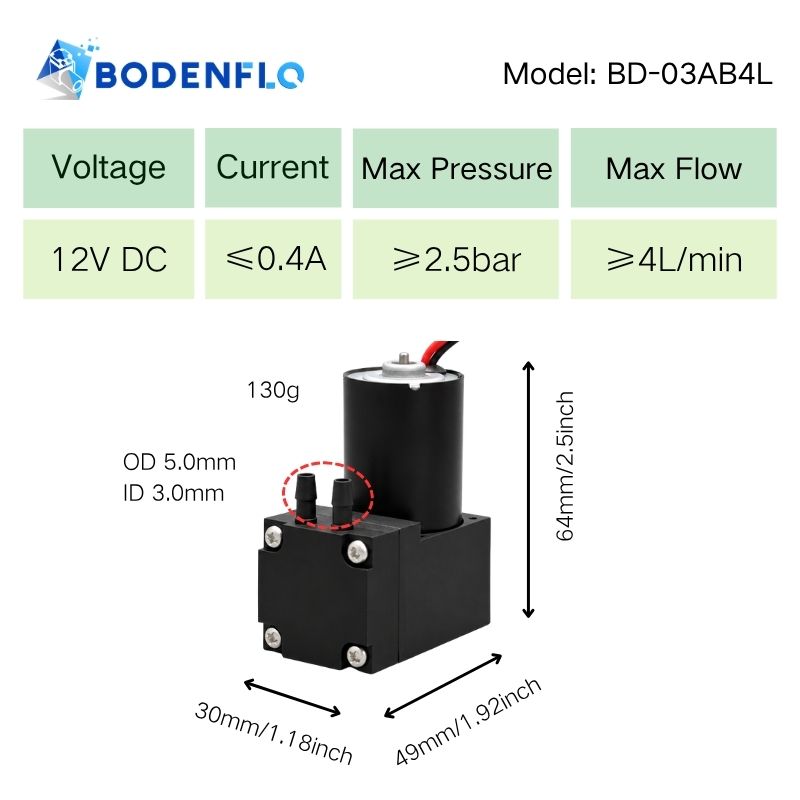

BD-03AB4L Technical Specifications:

• Name: Micro Diaphragm Pump
• Model: BD-03AB4L
• Rated Voltage: 12V DC
• Current: ≤0.4 A
• Max Pressure: ≥2.5 bar (250 kPa / 0.25 MPa)
• Max Flow: ≥4 L/min (4 LPM / 240 L/H)
• Noise: ★★

BD-03AB6L Technical Specifications:

• Name: DC Air Pump
• Model: BD-03AB6L
• Rated Voltage: 12V DC
• Current: ≤0.6 A
• Max Pressure: ≥3 bar (300 kPa / 0.30 MPa)
• Max Flow: ≥6 L/min (6 LPM / 360 L/H)
• Noise: ★★★

Important: Maximum flow and maximum pressure represent different operating points. The pump does not deliver its maximum rated flow at maximum pressure. For final selection, use the required working flow at the actual system pressure.

General Specifications

• Motor Type: DC Brushless Motor
• Pump Head: Nlyon
• Valve/Diaphragm Material: EPDM

• Life Time: 3000-5000 Hours
• Noise: ≤58-65dB

• Working Mode: Intermittent
• Dimension: 64 × 49 × 30 mm (2.52 × 1.93 × 1.18 inch)
• Weight: 130g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

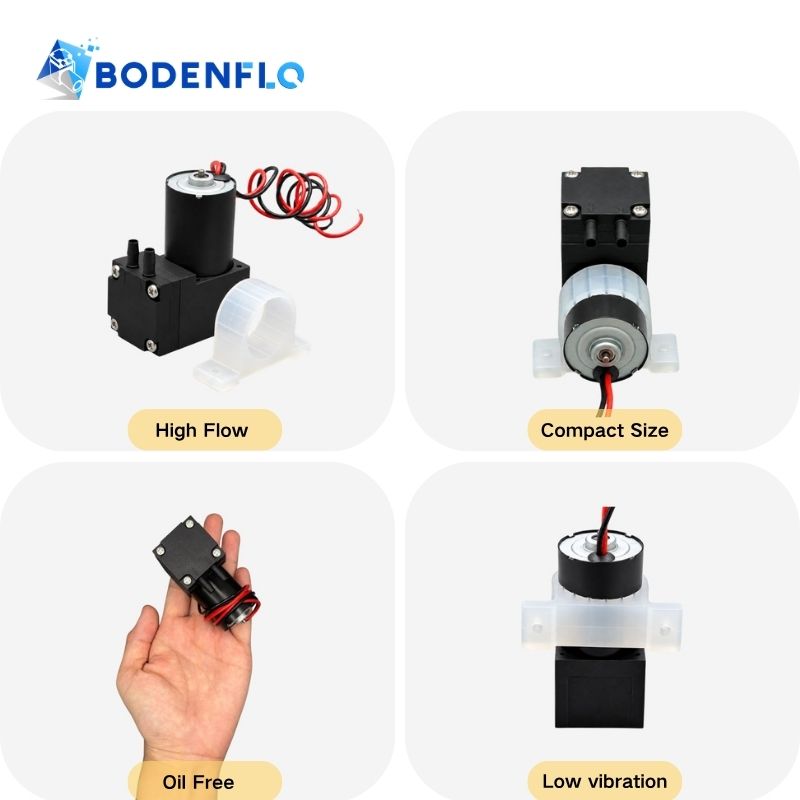

Key Features of Micro Diaphragm Pump:

• Brushless DC Motor: Reduces motor wear and provides a service life of 3,000–5,000 hours.
• High Pressure Performance: Three models provide maximum pressure from 2 to 3 bar for different pressure requirements.
• 3–6 L/min Airflow: Available in 3 L/min, 4 L/min, and 6 L/min versions for different airflow demands.

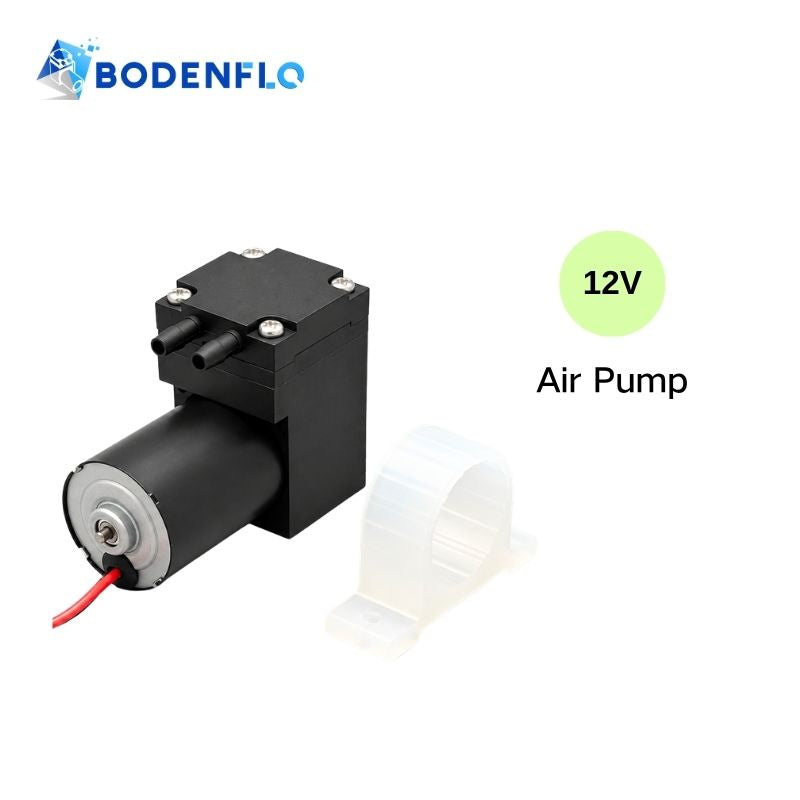

• Flexible Silicone Mount: Each pump includes one silicone mounting bracket, allowing flexible mounting positions and orientations while helping reduce vibration and structure-borne noise.
• Vibration & Noise Reduction: The silicone mount helps isolate pump vibration and reduce noise transferred to the equipment.
• Oil-Free Operation: The diaphragm structure provides clean air transfer without lubricating oil in the airflow path.


Common Applications:

• Compact Pneumatic Equipment: Provides pressurized airflow for small pneumatic devices and systems.
• Air Transfer Equipment: Suitable for equipment requiring continuous or intermittent air delivery.
• Pressure Supply Systems: Provides 2–3 bar positive pressure for compact air pressure applications.
• Testing & Measuring Devices: Supplies airflow for instruments and compact testing equipment.
• Portable Equipment: The 12V DC supply and compact dimensions support integration into portable devices.

Package & Shipping

• Package Includes: 1 × Micro Diaphragm Pump + 1 × Silicone Mounting Bracket
• Lead Time: Typically 3–5 working days for standard orders.
• Shipping: DHL or FedEx express shipping available.
