12V Air Pump Compact High-Pressure Diaphragm Pump for OEM Applications | Limited Stock Sale

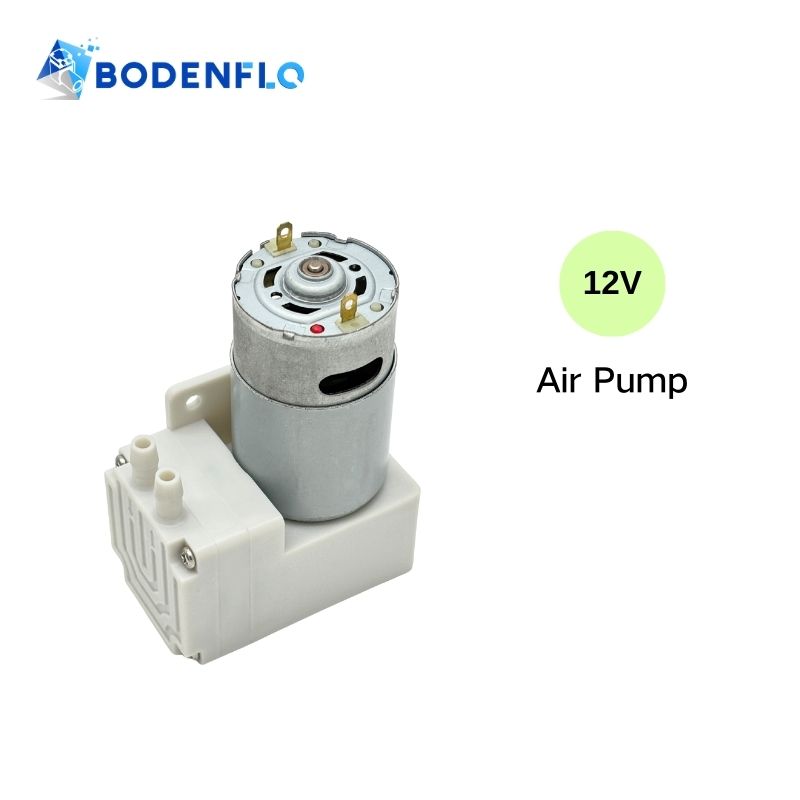

The BD-04A 12V Diaphragm Pump from BODENFLO is a compact and robust miniature air pump engineered for applications requiring strong output pressure and reliable intermittent-duty performance. Built with a durable DC brushed motor and an oil-free diaphragm structure, this model provides clean airflow, stable pressure output, and excellent integration flexibility.

Limited-Time Promotion — Only 1000 Units in Stock

The BD-04A 12V Air Pump is now available at a special discounted price.
This is a limited inventory clearance, and there will be no restock once sold out.
To secure an even better discounted price, please contact info@bodenpump.com.

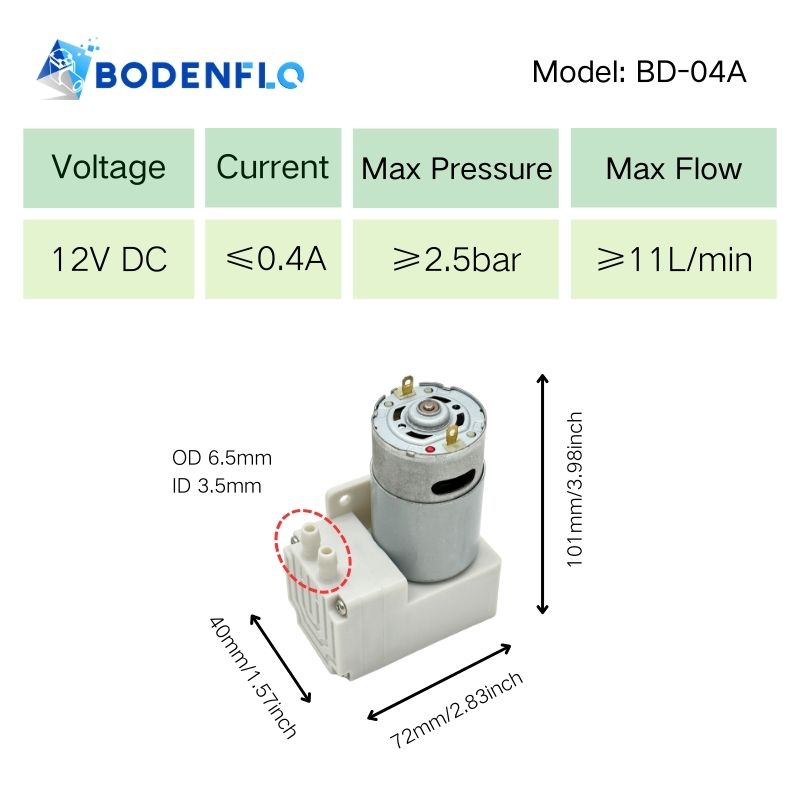

BD-04A 12V Technical Specifications

• Name: Diaphragm Air Pump

• Model: BD-04A

• Rated Voltage: 12V DC

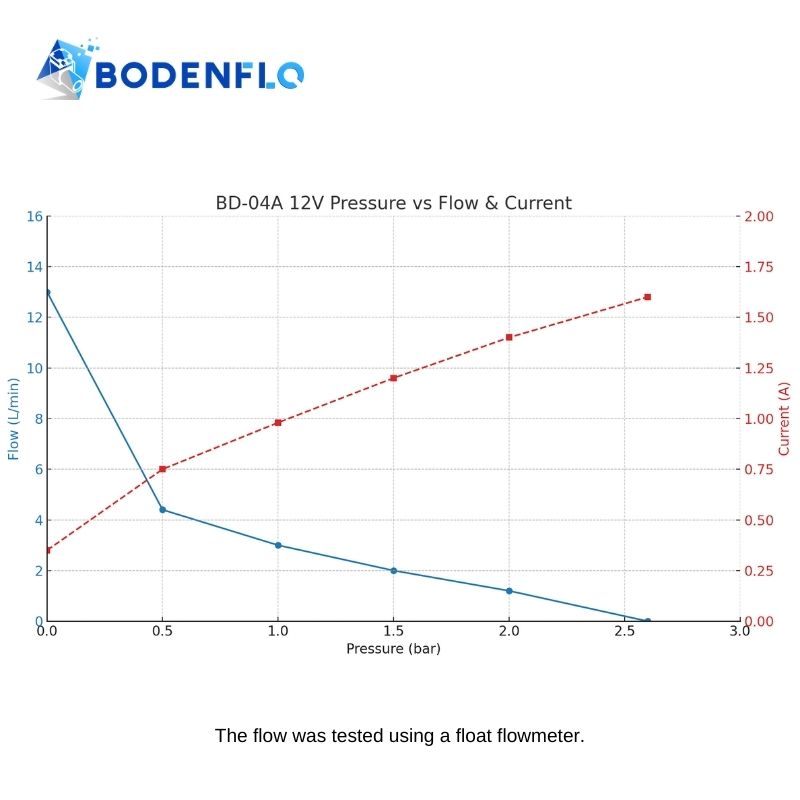

• Maximum Pressure: ≥2.5 bar

• Maximum Flow: ≥11 L/min

• No-load Current: ≤0.4A

• Life Time: 1000 hours

• Noise: 62 dB



General Specifications

• Motor Type: DC Brush Motor
• Pump Head / Body Material: Nylon
• Diaphragm & Valve Material: EPDM
• Working Mode: Intermittent
• Inlet / Outlet Diameter: Φ6.5 mm / Φ3.5 mm
• Dimensions: 101 × 72 × 40 mm
• Weight: 308 g
• Operating Temperature: 5–45℃

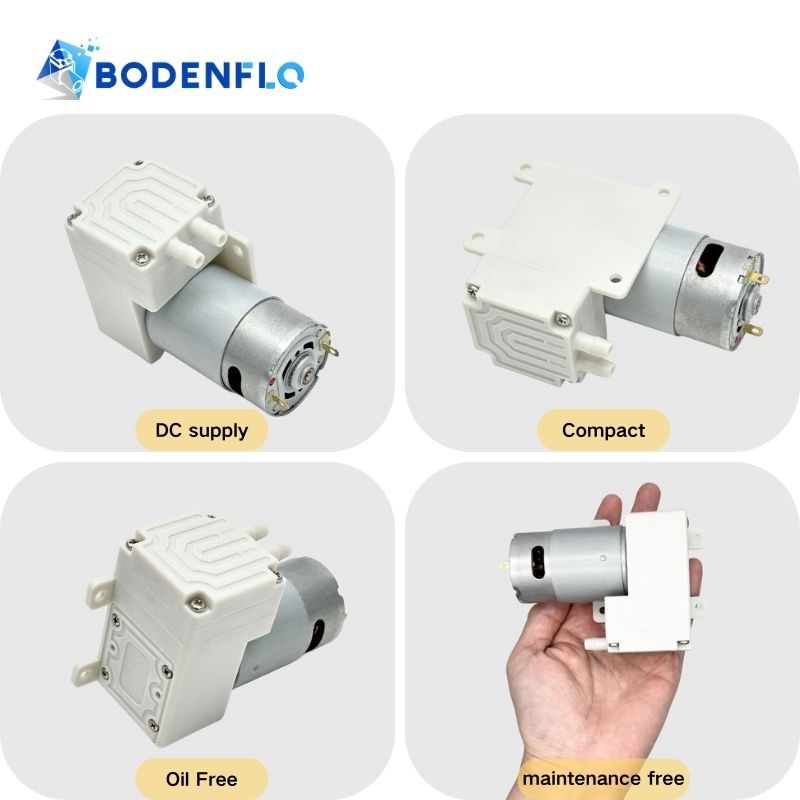

Key Features of the BD-04A Air Pressure Pump

• High Output Pressure Capability: Delivers ≥2.5 bar continuous pressure output, suitable for compact pneumatic systems, inflation modules, and pressure-assisted mechanisms.
• Oil-Free & Clean Operation: Diaphragm structure eliminates oil contamination risk, making it suitable for medical, laboratory, and sensor-sensitive applications.
• Compact, Rigid, and Easy to Integrate: Small footprint and reinforced nylon construction make integration easier in portable devices and consumer appliances.
• Reliable Intermittent-Duty Performance: Designed for short-cycle operation with stable performance and extended reliability in demanding OEM applications.
• Cost-Effective for Pilot Run: Special pricing makes it ideal for small batch production, prototyping, and market testing.
• Limited Inventory Advantage: With only 1000 units available, OEM buyers can secure consistent batch quality from the same production lot.

Common Applications

• Inflation and Pneumatic Modules: Ideal for portable inflators, pressure assist units, and pneumatic actuators.
• Small Home Appliances: Suitable for cleaning devices, massage machines, and compact pressurization systems.
• Industrial & Automation Devices: Used in gas circulation, pressure supply modules, and light-duty pneumatic tools.

Manufacturer Information

• Brand: BODENFLO
• Place of Origin: China


BODENFLO is a dedicated manufacturer of high-performance micro air, vacuum, and liquid pumps engineered for industrial, medical, and analytical systems. Backed by more than 15 years of engineering and manufacturing experience, we provide reliable, customizable, and ISO9001-certified pump solutions that support OEMs in developing higher-performance, higher-value products. All BODENFLO pumps meet international compliance standards including CE, RoHS, and REACH.

For OEM customization, engineering support, or technical consultation, visit https://bodenpump.com or contact us at info@bodenpump.com.Our team delivers tailored micro pump solutions designed to improve system performance, reduce development time, and strengthen your product’s competitive edge.
