12V Eccentric Piston Pumps High Pressure Versatile Applications Micro Air Pump BD-07A BODENFLO

BD-07A Small Piston Air Pumps is designed for high performance in compact applications. This powerful 12V micro air pump provides excellent pressure capabilities (up to 6 bar) and a consistent flow rate, making it perfect for industries requiring reliable, compact air solutions. Its durable piston material and DC brush motor ensure stable operation while its compact dimensions enable seamless integration into various devices and systems.

BD-07A17L Technical Specifications:

• Name: Eccentric Piston Pumps
• Model: BD-07A17L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Pressure: >500 kPa ( 5 bar/ 0.5 MPa / 72.5psi)
• Max Flow: >17 L/min (17 LPM / 1020 L/H)
• Noise:★

BD-07A25L Technical Specifications:

• Name: Micro Air Pump 12V
• Model: BD-07A25L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.7psi)
• Max Flow: >25 L/min (25 LPM / 1500 L/H)
• Noise:★★

BD-07A30L Technical Specifications:

• Name: Micro Air Pump
• Model: BD-07A30L
• Rated Voltage: 12V DC
• Current : ≤4A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87psi)
• Max Flow: >30 L/min (30 LPM / 1800 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Plastic Material: PPS
• Valce Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-68dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86.6x43mm
• Weight: 580g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

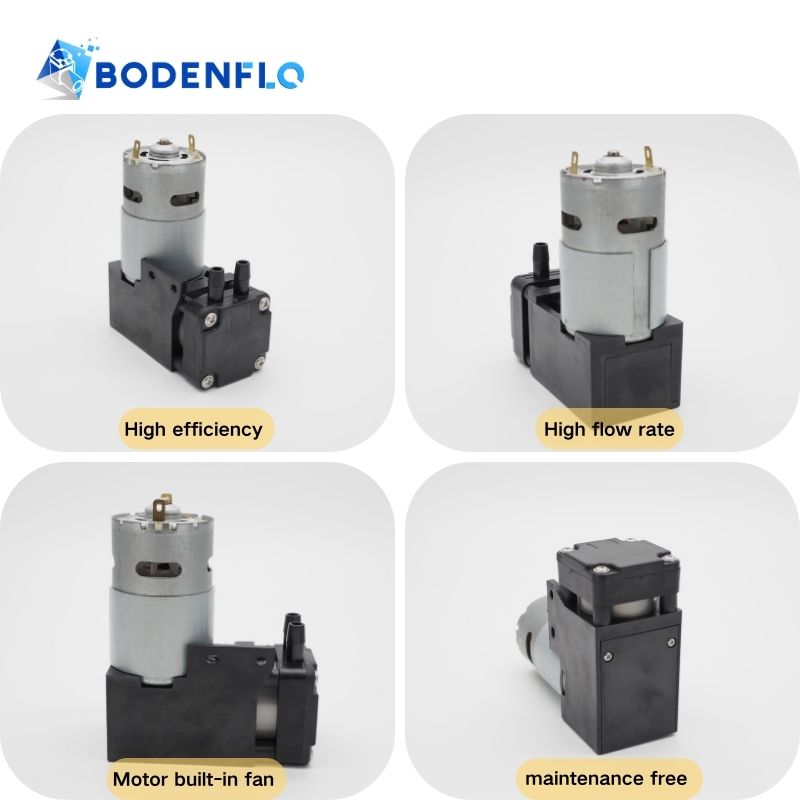

Key Features of Micro Air Pump:

• Compact Size: Designed to fit into tight spaces, perfect for applications with limited installation space.
• High Efficiency: Capable of delivering consistent performance with low energy consumption.
• Oil-Free Operation: The BD-07A vacuum pump operates without oil, ensuring cleaner performance and eliminating the risk of contamination, making it ideal for environments where purity and cleanliness are paramount.
• Stable Pressure and Flow: Provides steady airflow and pressure, essential for precise and consistent performance in sensitive applications.
• Versatile Applications: Suitable for a wide range of uses, from medical devices to environmental monitoring and laboratory systems.

Common Applications:

• Household Appliances: The BD-07A vacuum pump is integral to various household appliances, providing essential suction for devices such as robotic vacuum cleaners and air purifiers, ensuring efficient operation and enhanced indoor air quality.
• Health Care: In health care, the BD-07A is used to power medical devices that require precise vacuum control, such as wound therapy systems and dental suction equipment, offering reliable performance for patient care.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
