12V Brushless Piston Pump 650 kPa 35L For Compressor Air BD-07AB-M BODENFLO

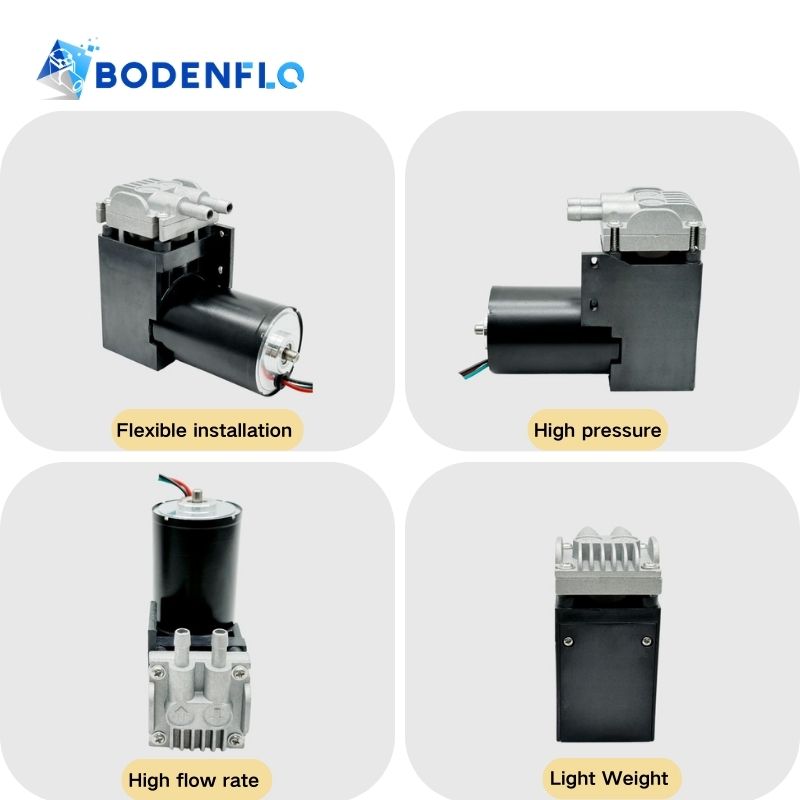

The Brushless Piston Pump (BD-07AB-M) is designed for high-pressure, high-flow air applications requiring efficient, long-lasting performance. Powered by a 12V DC brushless motor, this pump delivers robust performance with a maximum pressure of up to 650 kPa (6.5 bar) and a flow rate range of 18 L/min to 35 L/min, making it ideal for demanding industrial, medical applications.

BD-07AB-M18L Technical Specifications:

• Name: Brushless Piston Pump
• Model: BD-07AB-M18L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.7707psi)
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07AB-M26L Technical Specifications:

• Name: High Pressure Air Pump
• Model: BD-07AB-M26L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87.0266psi)
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

BD-07AB-M35L Technical Specifications:

• Name: Air Pump 12V
• Model: BD-07AB-M35L
• Rated Voltage: 12V DC
• Current : ≤4A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.2745psi)
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 3000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 102.5x86x43mm
• Weight: 560g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Brushless Piston Pump:

• High-Pressure Performance: Ideal for applications requiring consistent, high-pressure air flow, such as industrial and medical devices.
• Long-Lasting Durability: The brushless motor and metal head construction ensure the pump remains durable and performs reliably over time.
• Low Maintenance: The brushless motor design reduces wear and tear, resulting in lower maintenance costs and fewer replacements.
• Versatile: Suitable for use in a wide range of industries, from medical devices to industrial equipment, making it adaptable to various needs.
• Flexible Integration: Can easily be incorporated into different devices or systems, offering design flexibility for manufacturers and engineers.

Common Applications:

• Compression therapy
• Power tool

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
