12V Diaphragm Air Pump Brushless Compressor BD-05T033B 3L -55KPA BODENFLO

The BD-05T033B is a compact and efficient 12V diaphragm air pump designed for continuous operation in demanding micro air suction tasks. Equipped with a long-life brushless motor and EPDM diaphragm, it offers reliable performance in medical devices, environmental sampling instruments, and precision automation systems. Its ultra-small footprint, low noise, and stable flow make it an ideal solution for engineers seeking durable and quiet micro vacuum technology.

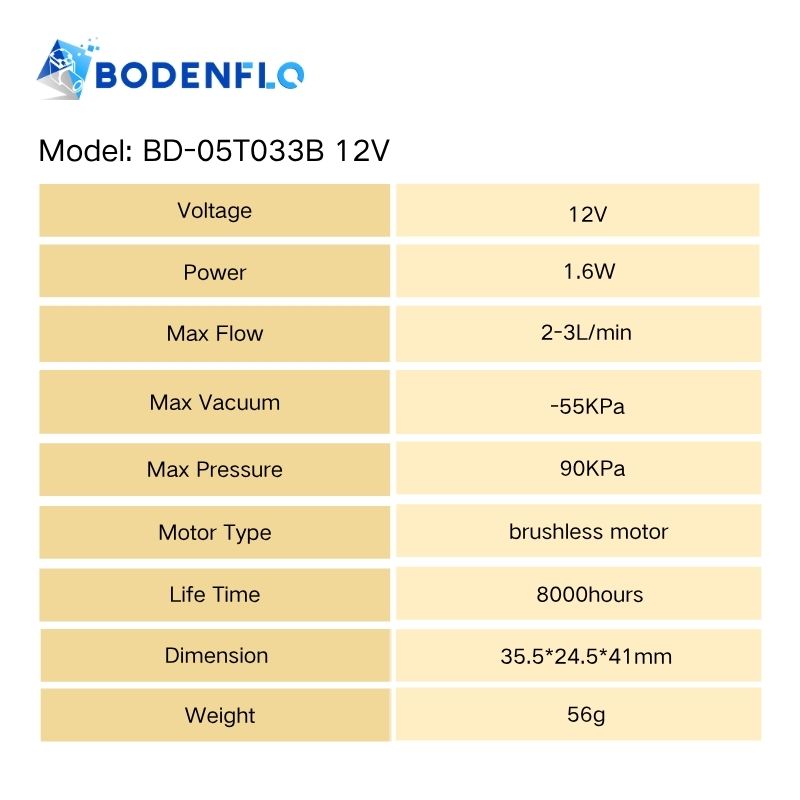

BD-05T033B 12V Technical Specifications:

• Name: Diapharagm gas pump
• Model: BD-05T033B 12V
• Rated Voltage: 12V DC
• Power : 1.6W
• Max Pressure: >90 kPa ( 0.9 bar/ 0.09 MPa / 13.0533 psi)
• Max Vacuum: >-55 kPa ( -412mmHg /0.055 MPa )
• Max Flow: > 2-3L/min ( 2-3LPM / 120-180L/H)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)

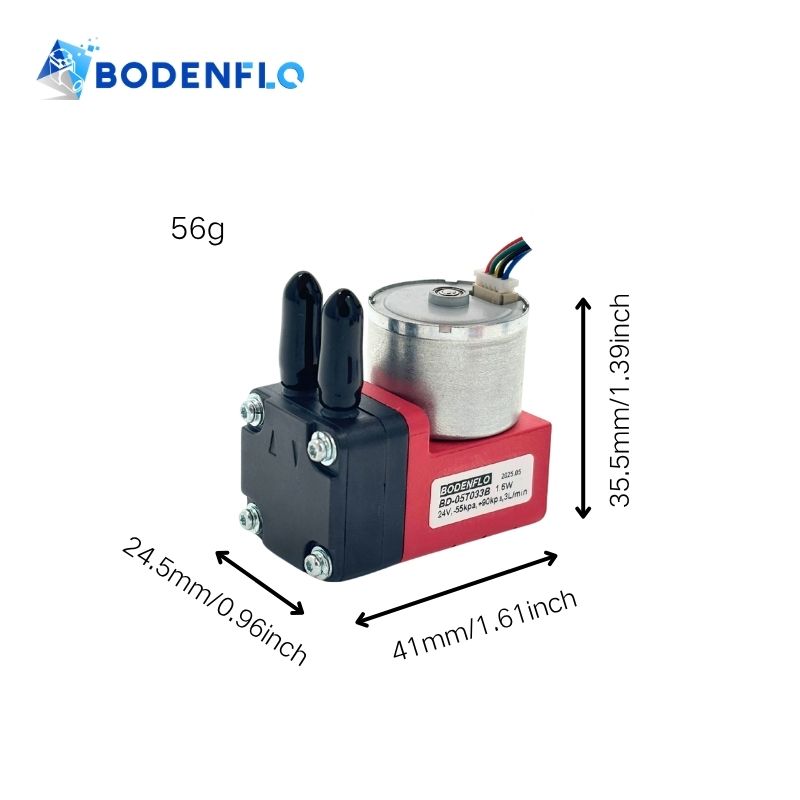

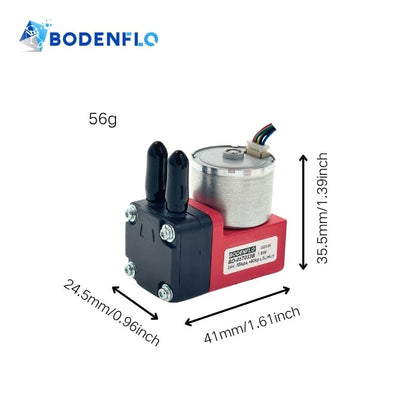

• Dimension: 35.5*24.5*41mm
• Weight: 56G(approx.)
• Storage temperature: -40℃~60℃
• Medium environment: -10℃~45℃

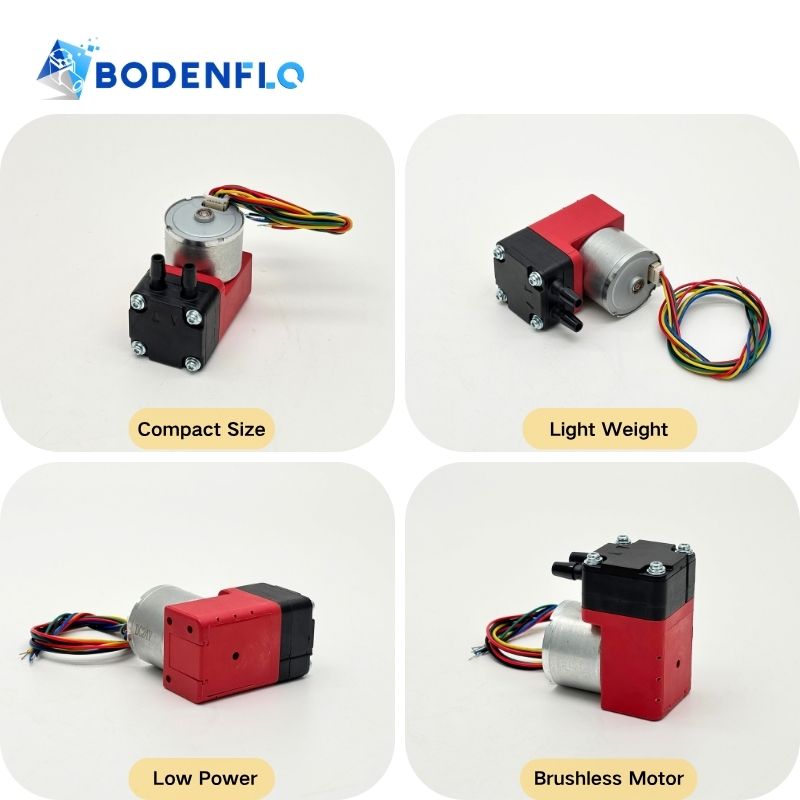

Key Features of Diaphragm Vacuum Pump:

• Ultra-Compact Design: Small footprint allows easy integration into portable devices or narrow enclosures.
• Brushless Motor: Offers longer operational life and higher reliability than brushed motors, especially under continuous use.
• Stable Suction Flow: Maintains precise vacuum performance even during long-term or variable-load operation.
• Quiet Operation: Engineered for low acoustic output, ideal for medical, laboratory, or office environments.
• Low Power: Consumes minimal energy, making it suitable for battery-powered or energy-sensitive equipment.

Common Applications:

• Gas Detection Devices: Extracts small volumes of air to help handheld detectors identify hazardous gases like methane or CO.
• Air Quality Monitors: Continuously draws ambient air into sensors for VOC, CO₂, or particle concentration measurement.
• Medical Suction Units: Provides controlled suction in portable devices for mucus extraction, wound drainage, or dental vacuum.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
