12V Diaphragm Pump -70kPa For Oil Free Air Vacuum Pump BD-05TVB-S BODENFLO

Enhance the performance of precision equipment with the BD-05TVB-S Diaphragm Brushless Pump, a compact micro vacuum pump designed for stable airflow, reliable vacuum generation, and long operational life. The pump integrates a high-end DC brushless motor with an optimized diaphragm structure to ensure efficient, oil-free gas transfer and consistent performance in demanding environments.

BD-05TVB-S Technical Specifications

• Name: 12V Micro Vacuum Pump
• Model: BD-05TVB-S
• Motor Type: High-end Brushless DC Motor
• Max Power: 5 W
• Rated Voltage: 12V DC
• Max Flow Rate:

1. Float Flow Meter: 4.6 L/min (4.6LPM / 276L/H)
2. Electronic Flow Meter: 3.0 L/min (3 LPM / 180 L/H)

• Max Negative Pressure: -70 kPa (525 mmHg/0.07Mpa)
• Max Positive Pressure: 1.0-1.5 bar(100-150kPa / 0.1-0.15 MPa / 14.50-21.67 psi)
• Noise: 60dB

General Specifications

• Motor Type: DC Brushless Motor
• Waterproof Level: IP20
• Service Life: >10,000 Hours
• Dimensions: 60.4*32*55 mm(2.32.37*2.16*1.25inch)
• Weight: 148 g
• Storage Temperature Range: –40 ℃ ~ 60 ℃
• Operating Temperature (Ambient): –20 ℃ ~ 50 ℃
• Medium Temperature Range: –10 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05TVB-S Micro Diaphragm Pump Youtube video

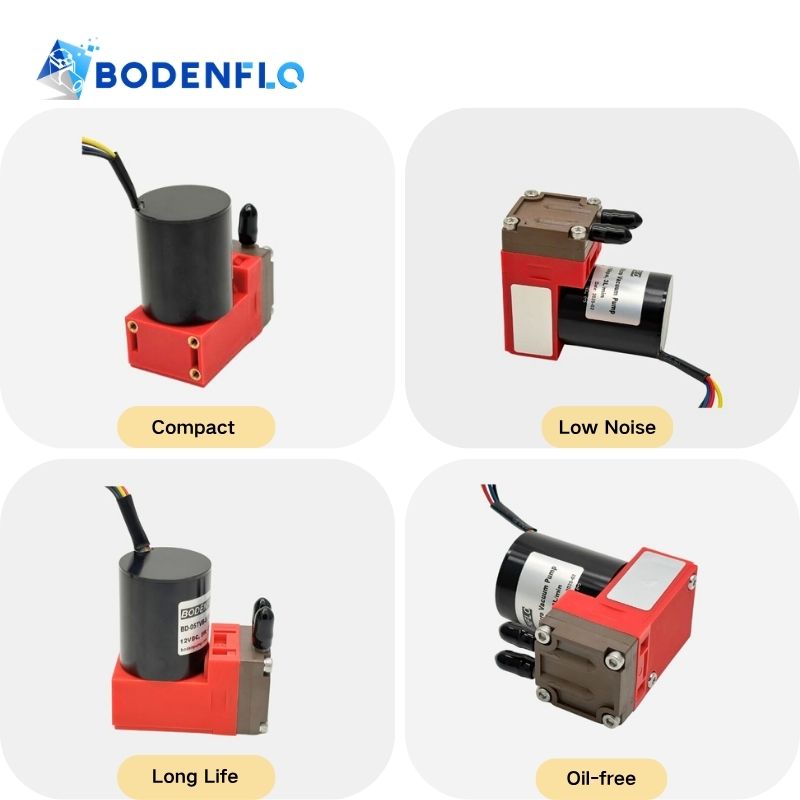

Key Features of 12V Diaphragm Pump:

• Brushless Diaphragm Technology: Combines a durable diaphragm mechanism with a brushless motor to achieve stable airflow, reduced mechanical wear, and extended service life.

• Quiet Operation for Sensitive Equipment: The optimized motor structure reduces vibration and mechanical noise, making the pump suitable for instruments requiring quiet operation.

• Compact Engineering Design: With its small dimensions and lightweight structure, the pump is easy to integrate into portable equipment, analytical instruments, and compact systems.

• Reliable Vacuum Performance: Providing dependable suction for gas sampling, air extraction, and vacuum-assisted systems.

• Energy-Saving Operation: The pump offers efficient performance while maintaining stable airflow and vacuum output.

Common Applications:

• Gas Analysis and Sampling Systems: Provides stable airflow for portable gas analyzers and environmental monitoring instruments.

• Laboratory and Diagnostic Devices: Suitable for analytical instruments, diagnostic equipment, and automated laboratory systems.

• Industrial Instrumentation: Used in precision instruments and automated systems requiring compact vacuum generation.
