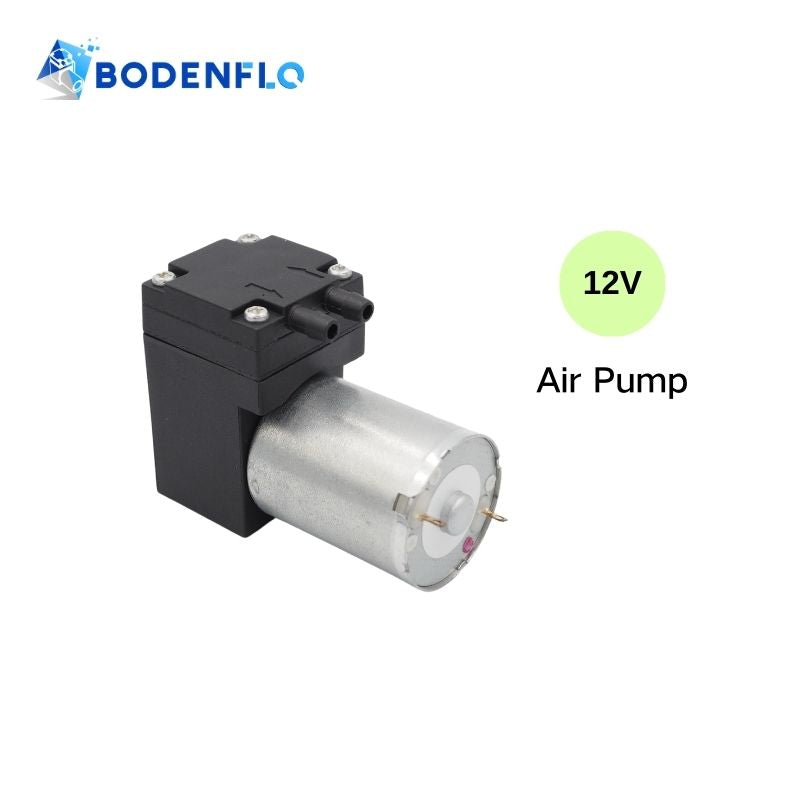

12V Eccentric Diaphragm Air Pump Reliable Pressure for Medical Device BD-02A 3L BODENFLO

BD-02A3L Eccentric Diaphragm Pump by BODENFLO is designed for high-performance air pumping applications. With a 12V DC power source and a maximum flow rate of 3 L/min, this air pump delivers up to 150kPa of pressure. Its compact size and low-noise operation make it ideal for confined spaces where performance and quiet operation are essential. This versatile pump is suited for a variety of applications requiring reliable airflow and robust pressure control.

BD-02A1.5L Technical Specifications:

• Name: Eccentric Diaphragm Pumps
• Model: BD-02A1.5L
• Rated Voltage: 12V DC
• Current : ≤0.1A
• Max Pressure: >120kPa (1.2 bar / 0.12 MPa / 17.4045 psi)
• Max Flow: >1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

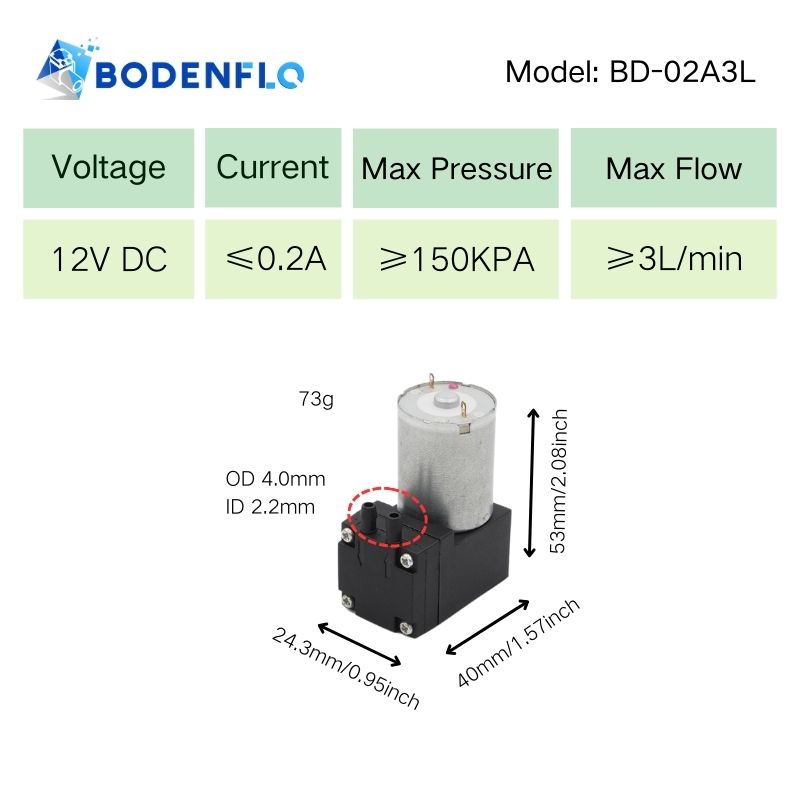

BD-02A3L Technical Specifications:

• Name: Air Pump 12V
• Model: BD-02A3L
• Rated Voltage: 12V DC
• Current : ≤0.2A
• Max Pressure: >150kPa (1.5 bar / 0.15 MPa / 21.7556 psi)
• Max Flow: >3 L/min (3 LPM / 180 L/H)
• Noise:★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 53x40x24.3mm
• Weight: 73g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Micro Air Pump:

• Precise Flow Control: Delivers accurate and consistent air or fluid flow, essential for sensitive applications.
• Self-Priming Capability: Can operate dry without damage, making it versatile for various uses.
• Compact and Lightweight: Small form factor allows easy integration into tight spaces and portable devices.
• Low Noise Level: Operates quietly, making it ideal for environments that require minimal noise interference.
• Easy to Install: Simple integration into systems, making it ideal for quick assembly in various applications.

Common Applications:

• Pressure Therapy Devices: Provides consistent air pressure for therapeutic compression, promoting circulation and aiding in the recovery process.
• Cooling Systems: Facilitates airflow in electronics cooling to maintain optimal temperatures for sensitive devices.
• Beauty Equipment: Incorporated into facial steamers and other skincare devices for controlled airflow.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
