12V Liquid Diaphragm Pumps Efficient Flow Control Medical Waste Disposal Applications BD-04WB BODENFLO

BD-04WB liquid diaphragm pump is engineered for precision and efficiency in water handling. This pump operates on a 12V DC power supply, providing reliable flow rates of up to 1.5 L/min and a vacuum level of -30 kPa. Its lightweight and compact design make it suitable for various setups, while its low noise operation ensures it is unobtrusive in laboratory and industrial environments. Whether you’re in need of water transfer or vacuum generation, the BD-04WB stands out for its versatility and performance.

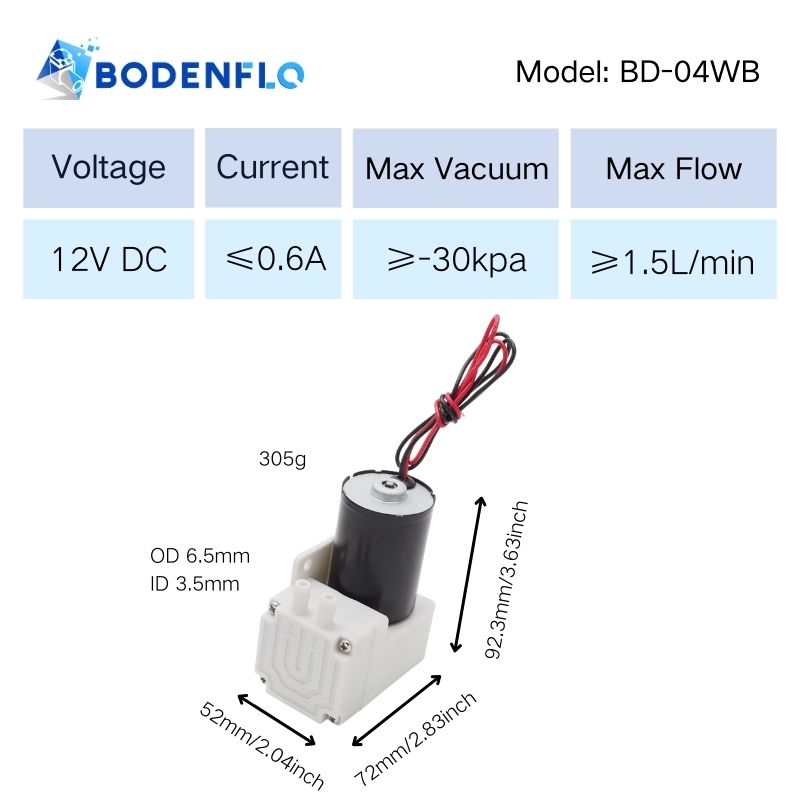

BD-04WB Technical Specifications:

• Name: Liquid Diaphragm Pumps
• Medium: Water
• Model: BD-04WB
• Rated Voltage: 12V DC
• Current : ≤0.6A
• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -225 mmHg)
• Max Flow: ≥1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM
• Life time: 5000 Hours
• Noise: 55dB
• Dimension: 92.3x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

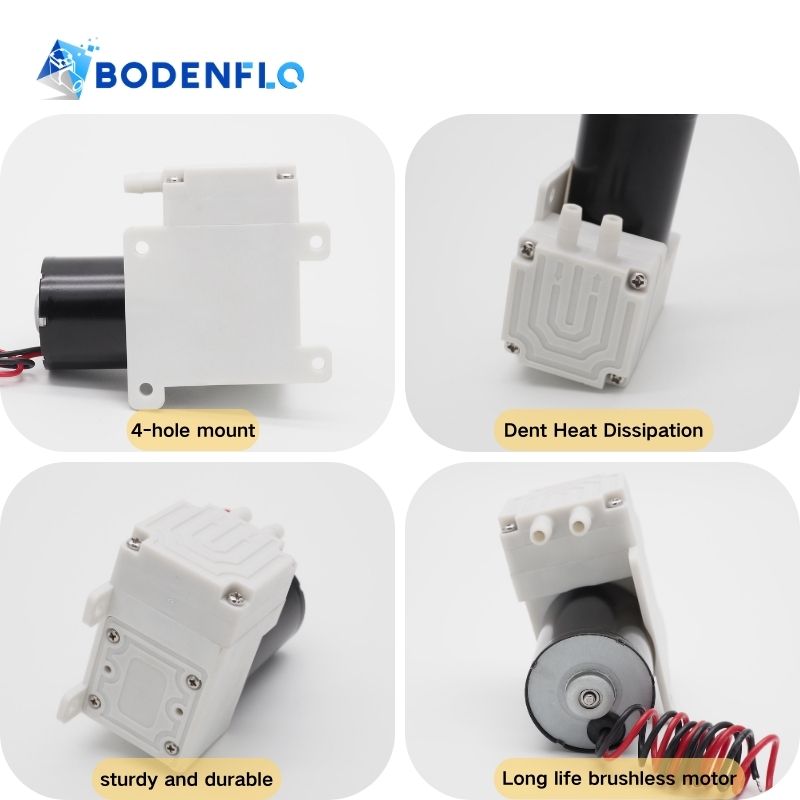

Key Features of Liquid Diaphragm Pumps:

• Space-Efficient: Its compact size allows for easy installation in confined spaces.

• Low Noise Level: Operates quietly, making it ideal for environments requiring minimal disruption.

• Long Operational Life: Built to last with a lifespan of approximately 5000 hours.

• User-Friendly Maintenance: Simple structure allows for hassle-free upkeep.

• Reliable Build Quality: Designed to withstand operational stress while maintaining efficiency.

Common Applications:

• Medical Waste Disposal (Backwashing): Plays a role in clearing medical waste fluids through backwashing systems, maintaining cleanliness.
• Fluid Transportation: Efficiently transports liquids in industrial or lab equipment for precise flow control.
• Cooling: Provides effective liquid circulation to dissipate heat in various cooling mechanisms.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
