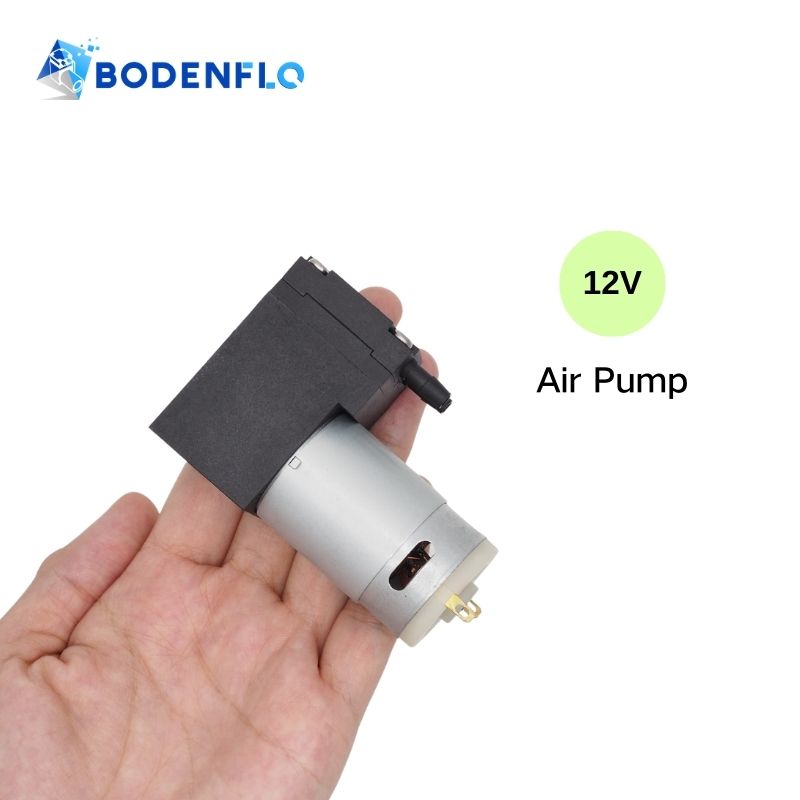

12V Micro Air Pump High Flow for Electric Power Tools Low Noise Mini Pumps BD-03A 3L 6L BODENFLO

12V Micro Air Pump High Flow for Electric Power Tools Low Noise Mini Pumps BD-03A 3L 6L BODENFLO

Regular price $20.00 USD
Regular price $25.00 USD Sale price $20.00 USD
Sale Sold out
BD-03A

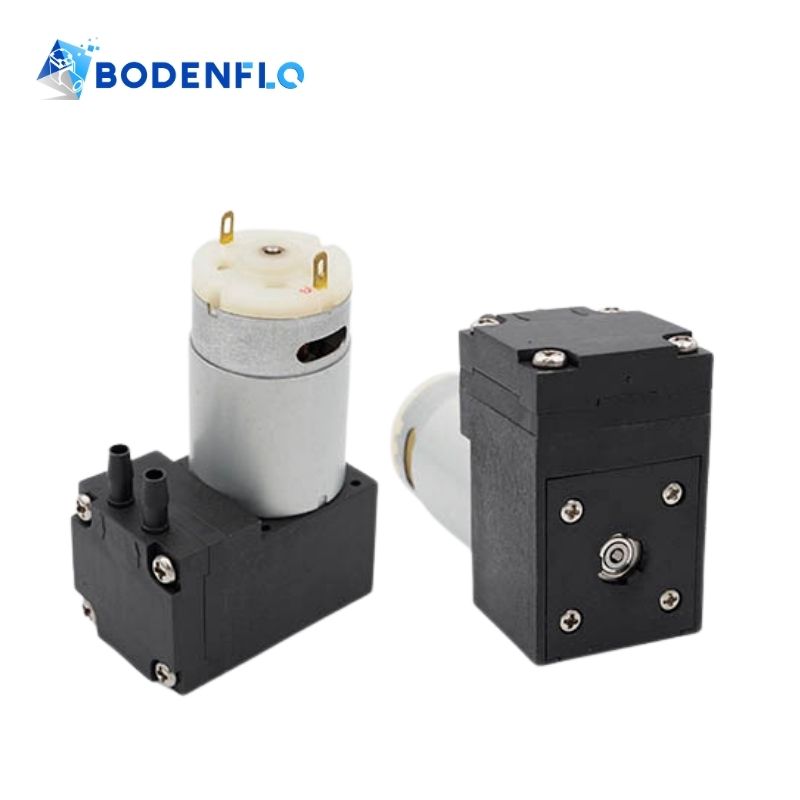

Optimize your operations with the BD-03A series Micro Air Pumps, featuring two models tailored for varying needs. The BD-03A3L and BD-03A6L are engineered for efficiency and reliability in demanding environments.

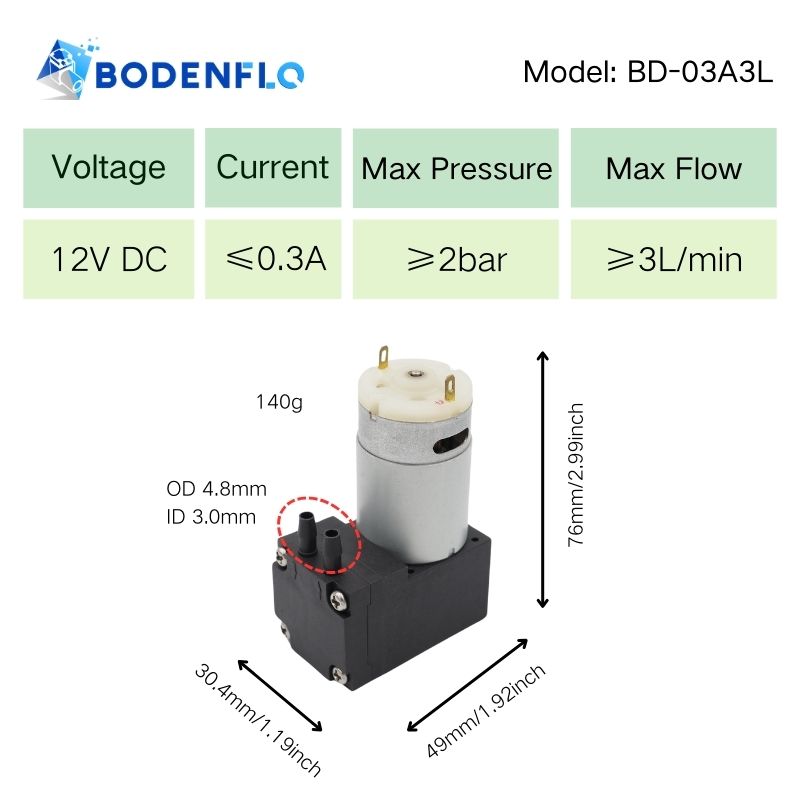

BD-03A3L Technical Specifications:

  • Name: Micro Diphragm Air Pump
  • Model: BD-03A3L
  • Rated Voltage: 12V DC
  • Current Consumption: ≤0.3A
  • Max Pressure: ≥2 bar (200 kPa / 0.2 MPa / 29 psi)
  • Max Flow: ≥3 L/min (3 LPM / 180 L/H)

BD-03A6L Technical Specifications:

  • Name: Miniature Diaphragm Pump 12V
  • Model: BD-03A6L
  • Rated Voltage: 12V DC
  • Current Consumption: ≤0.6A
  • Max Pressure: ≥3 bar (300 kPa / 0.3 MPa / 43.5114 psi)
  • Max Flow: ≥6 L/min (6 LPM / 360 L/H)

General Specifications

  • Motor Type: DC Brush Motor
  • Diaphragm Material: EPDM
  • Life time: 800-1000 Hours
  • Noise: ≤58-65dB (with silencer can be reduced by 1-3dB)
  • Dimension: 76x49x30mm
  • Weight: 140g (approx.)
  • Environment temperature range: 0~40℃
  • Ambient humidity range: <80%

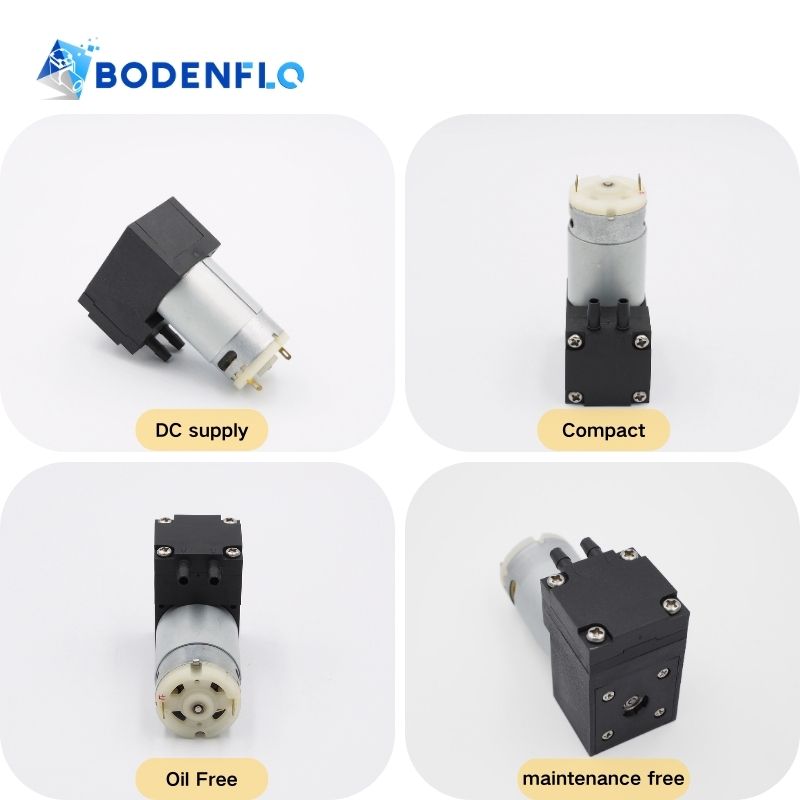

Key Features of Micro Diaphragm Air Pumps:

  • High Efficiency: Provides excellent airflow and pressure while minimizing energy consumption.
  • Compact Design: Small size allows for easy integration into various applications, including medical devices and portable equipment.
  • Durable Construction: Built with high-quality materials for longevity and reliable performance in demanding environments.
  • Low Vibration: Operates smoothly with minimal vibration, ensuring stable performance and reducing noise levels.
  • User-Friendly Maintenance: Designed for easy servicing and replacement of components, facilitating hassle-free upkeep.

Common Applications:

  • Electric Power Tools: Supplies compressed air in cordless airbrushes and mini pneumatic tools, enabling precise control in tasks like painting, cleaning, or inflating.
  • Compact Equipment: Enhances air circulation in small devices like portable air purifiers, tire inflators, and electronic cooling systems, improving efficiency in confined spaces.
  • Beauty Devices: Used in misting systems to deliver a fine spray of skincare products for improved absorption.

Manufacturer Information:

  • Brand: BODENFLO
  • Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
