12V Micro Compressor Pump with High Pressure for Spray Devices BD-079A-M 650KPA 45L BODENFLO

The BD-079A-M micro compressor pump is designed for high-pressure and high-flow applications, offering a robust and reliable solution with its DC brush motor and metal head construction. Capable of delivering superior airflow and pressure, this pump is ideal for industries such as medical, industrial and more. Its compact size, long-lasting valve material, and optimized performance make it the preferred choice for demanding environments. Whether used in pneumatic rehabilitation devices, or industrial tools, the BD-079A-M delivers consistent results with exceptional durability.

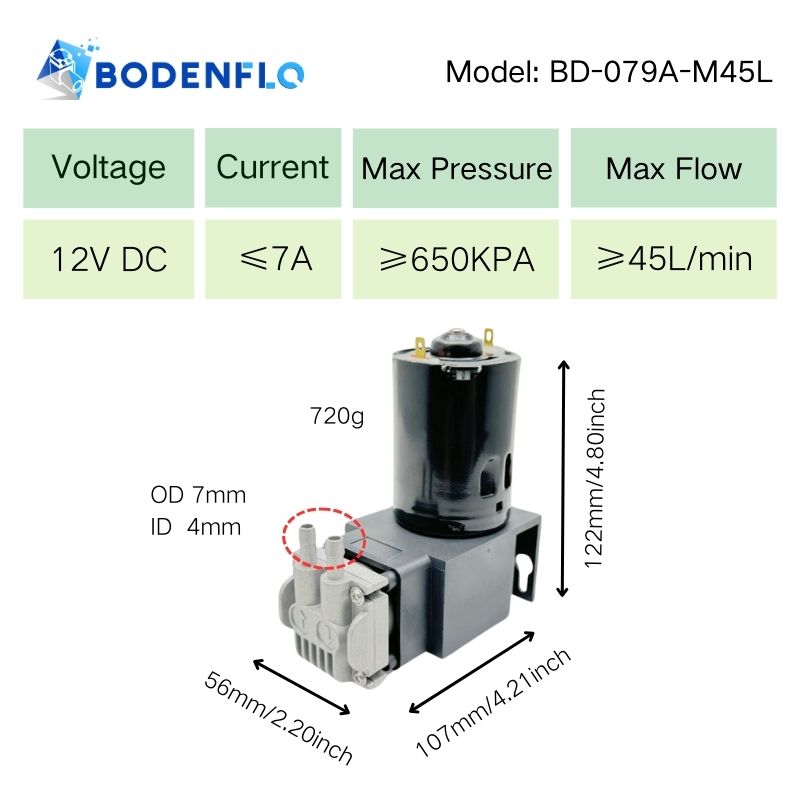

BD-079A-M45L Technical Specifications:

• Name: Air Pump 12V
• Model: BD-079A-M45L
• Rated Voltage: 12V DC
• Current : ≤7A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.2745psi)
• Max Flow: >45 L/min (45 LPM / 2700 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Life time: 1000 Hours
• Noise: ≤75dB(with silencer can be reduce 1-3dB)
• Dimension: 122x107x56mm
• Weight: 720g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

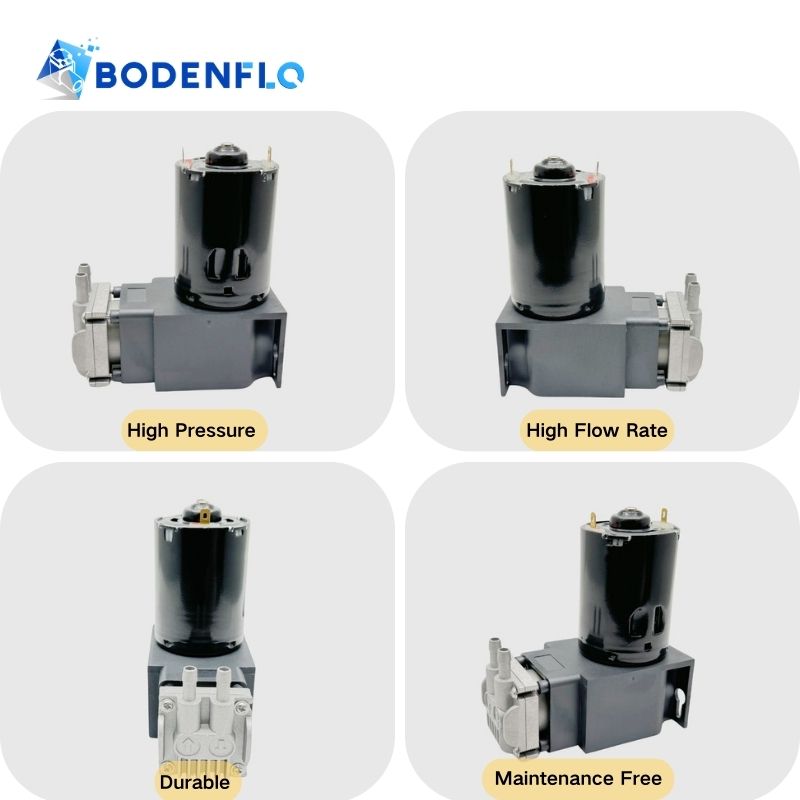

Key Features of Micro Compressor Pump:

• High Pressure Capability: Handles demanding industrial and commercial tasks with consistent performance.
• Durable Metal Head Construction: Ensures reliable operation and long-term resistance to wear and damage.
• Energy-Efficient Design: Reduces energy consumption without compromising output efficiency.
• Extended Service Life: Built with high-quality materials to deliver dependable, long-lasting performance.
• Stable and Precise Airflow: Maintains consistent pressure for sensitive and high-precision applications.

Common Applications:

• Pneumatic Rehabilitation Devices: Provides controlled air pressure for rehabilitation therapy, enabling precise adjustments in pneumatic compression systems to aid in recovery and physical therapy.
• High-Pressure Sprayers: Delivers powerful and consistent pressure for atomizing liquids in applications like cleaning, disinfection, and industrial coating.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
