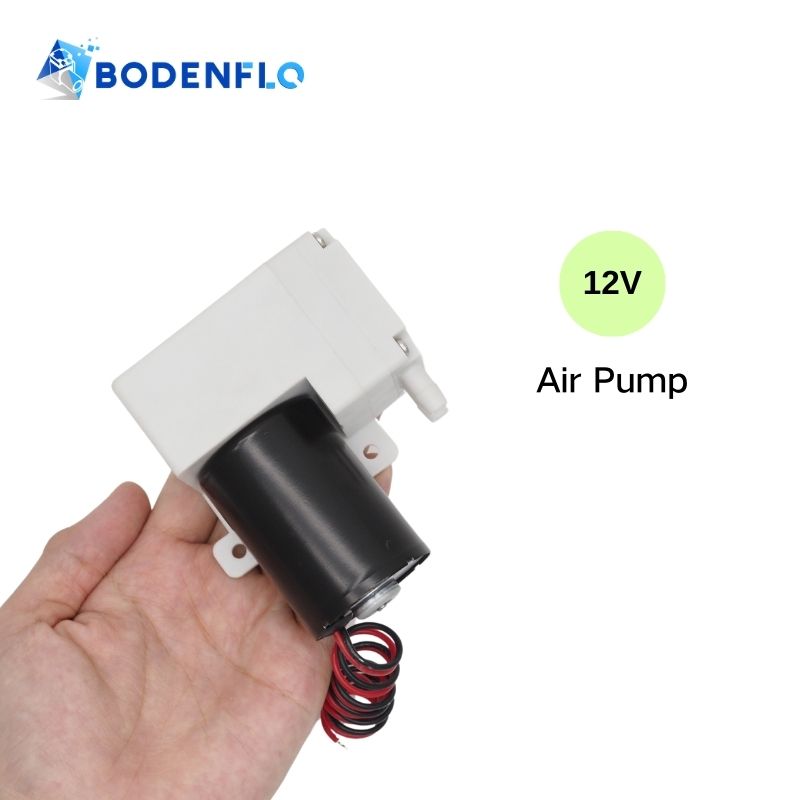

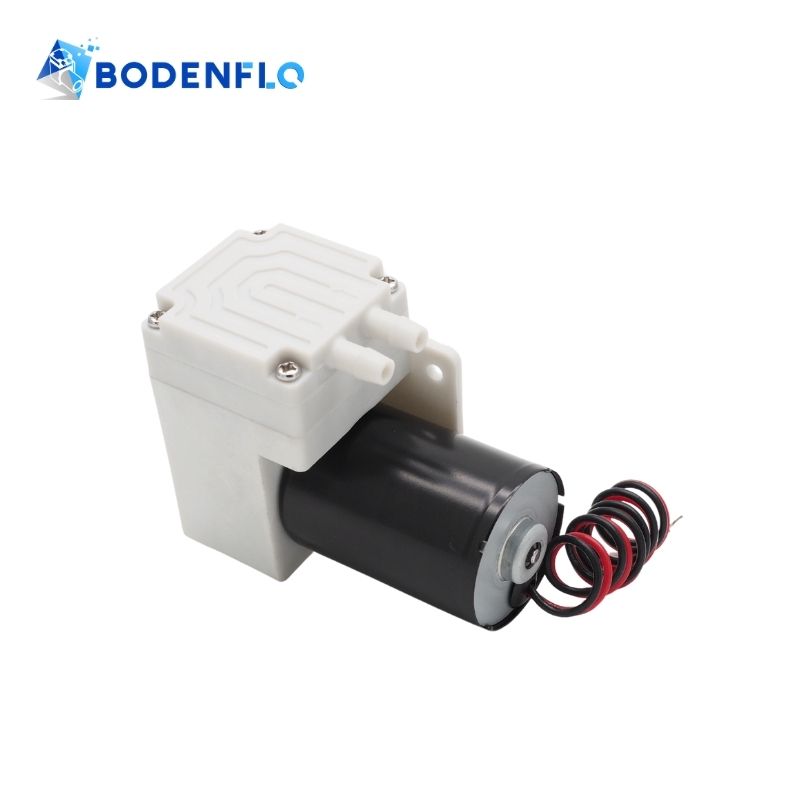

12V Mini Gas Pump High Pressure for Paint Spraying Systems Brushless Air Pump BD-04AB 20L BODENFLO

BD-04AB 12V micro brushless air pumps offer exceptional air pressure and flow in a compact, durable design. Powered by advanced brushless motor technology, these pumps ensure long-lasting performance with minimal wear, providing precise air handling solutions for demanding applications. The BD-04AB series is engineered for reliability, offering flexible models with pressure capacities up to 3.5 bar and flow rates of up to 20 L/min.

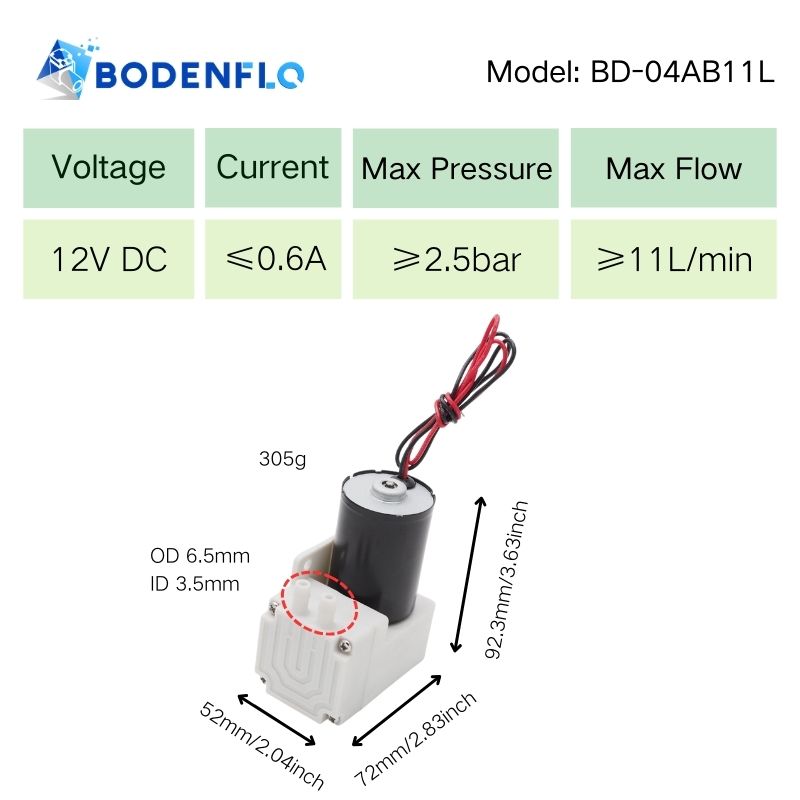

BD-04AB11L Technical Specifications:

• Name: Micro Air Pump
• Model: BD-04AB11L
• Rated Voltage: 12V DC
• Current : ≤0.6A
• Max Pressure: ≥2.5 bar (250 kPa / 0.25 MPa / 36.2594 psi)
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise:★

BD-04AB15L Technical Specifications:

• Name: Micro Air Pump 12V
• Model: BD-04AB15L
• Rated Voltage: 12V DC
• Current : ≤0.8A
• Max Pressure: ≥3 bar (300 kPa / 0.3 MPa / 43.5114 psi)
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise:★★

BD-04AB20L Technical Specifications:

• Name: Brushless Diaphragm Pump
• Model: BD-04AB20L
• Rated Voltage: 12V DC
• Current : ≤1.2A
• Max Pressure: ≥3.5 bar (350 kPa / 0.35 MPa / 50.7632 psi)
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 5000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 92.3x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

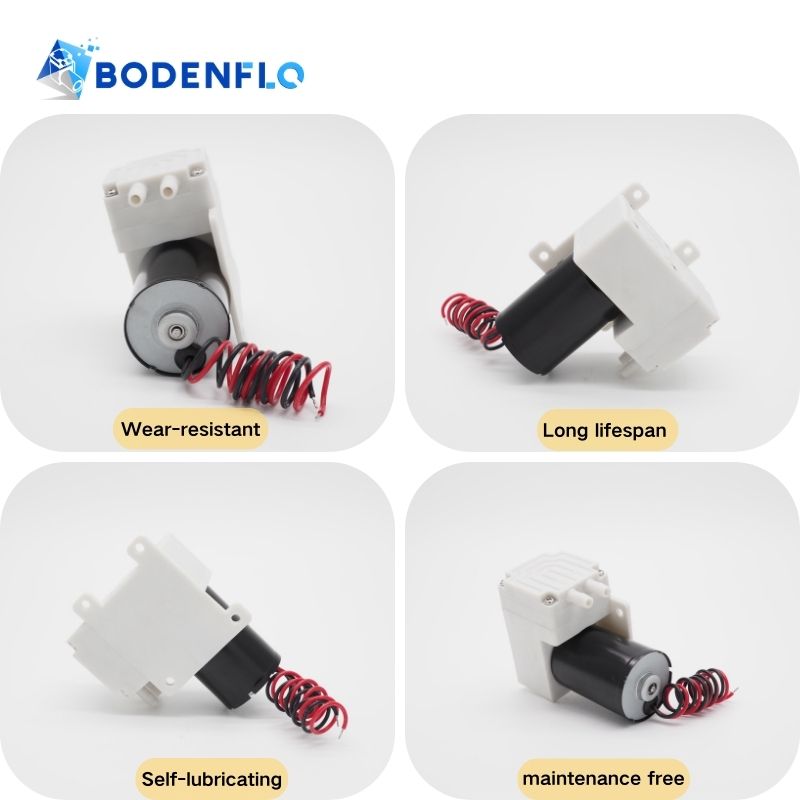

Key Features of Mini Gas Pump:

• Durable Brushless Technology: Eliminates the need for brushes, reducing wear and extending the pump’s lifespan significantly.

• High Air Pressure Capabilities: Capable of delivering high pressure, ensuring powerful and efficient air movement even in challenging applications.

• Consistent Air Flow: Provides reliable and steady air flow, even under continuous use, ensuring stable performance over time.

• Long Service Life: The brushless motor design ensures longer operational life, allowing for continuous use in critical applications.

• Vibration-Free Operation: The smooth, brushless operation reduces vibration, protecting sensitive equipment and offering a more stable performance.

Common Applications:

• Paint Spraying Systems: Controls the air pressure in precision paint spraying systems used in automotive and industrial painting, ensuring even coating.

• Blood Pressure Monitors: Provides precise air compression and release in digital blood pressure cuffs for accurate readings in medical diagnostics.

• Inkjet Printers: Controls air flow to ensure precise ink distribution in high-performance printers used in industrial or commercial applications.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
