12V Micro Diaphragm Vacuum Pump BD-04V 20L -85KPA BODENFLO

BD-04V mini vacuum pumps operate at 12V DC, offering powerful suction with maximum flow rates of up to 20 L/min and vacuums exceeding -85 kPa. Compact and lightweight, these pumps are engineered for reliable performance across diverse applications, from food packaging to environmental monitoring.

 BD-04V11L Technical Specifications:

• Name: Micro Diaphragm Suction Pump
• Model: BD-04V11L
• Rated Voltage: 12V DC
• Current : ≤0.6A
• Max Vacuum: ≥-75 kPa (-562 mmHg /0.075 MPa )
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise: ★

 BD-04V15L Technical Specifications:

• Name: DC Vacuum Pump 12V
• Model: BD-04V15L
• Rated Voltage: 12V DC
• Current : ≤0.8A
• Max Vacuum: ≥-80 kPa (-600 mmHg / 0.08 MPa )
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise: ★★

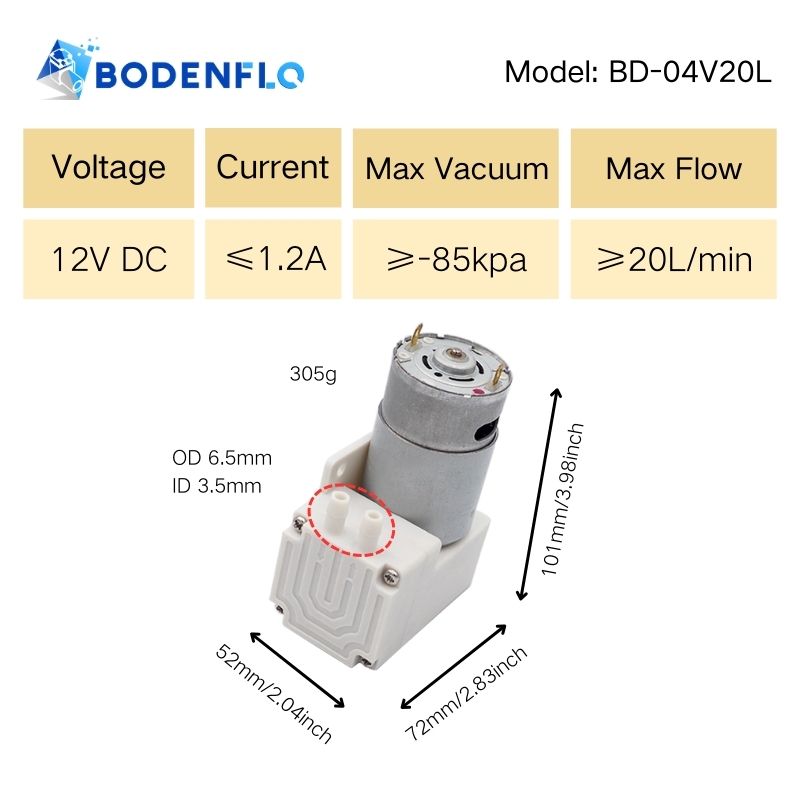

 BD-04V20L Technical Specifications:

• Name: Small Diaphragm Vacuum Pump
• Model: BD-04V20L
• Rated Voltage: 12V DC
• Current : ≤1.2A
• Max Vacuum: ≥-85 kPa (-637 mmHg / 0.085 MPa )
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise: ★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 101x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Micro Diaphragm Vacuum Pumps:

• Powerful Suction: Delivers effective vacuum performance for a variety of tasks.
• Lightweight Design: Easily integrates into portable applications without added bulk.
• Versatile Operation: Suitable for both continuous and intermittent use.
• User-Friendly Installation: Simple setup process for quick deployment.
• Low Power Consumption: Energy-efficient design minimizes operational costs.

Common Applications:

• Vacuum Therapy Devices: Supports non-invasive vacuum therapy equipment for body contouring and cellulite reduction.
• Vacuum Lifting Systems: Facilitates the handling of materials and components by creating controlled vacuum pressure for safe lifting and placement.

• Food Packaging: Used in vacuum sealing processes to extend shelf life.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
