12V Micro Diaphragm Vacuum Pump Brushless Long-Life for Gas Analysis BD-05T067L BODENFLO

BODENFLO BD-05T067L 12V is a compact, oil-free micro diaphragm vacuum pump engineered for precision gas sampling and analysis tasks. With strong negative pressure and stable flow, it’s ideal for integration into CEMS, VOC monitors, gas analyzers, and environmental gas detection equipment. The brushless motor ensures quiet, long-life operation in demanding applications.

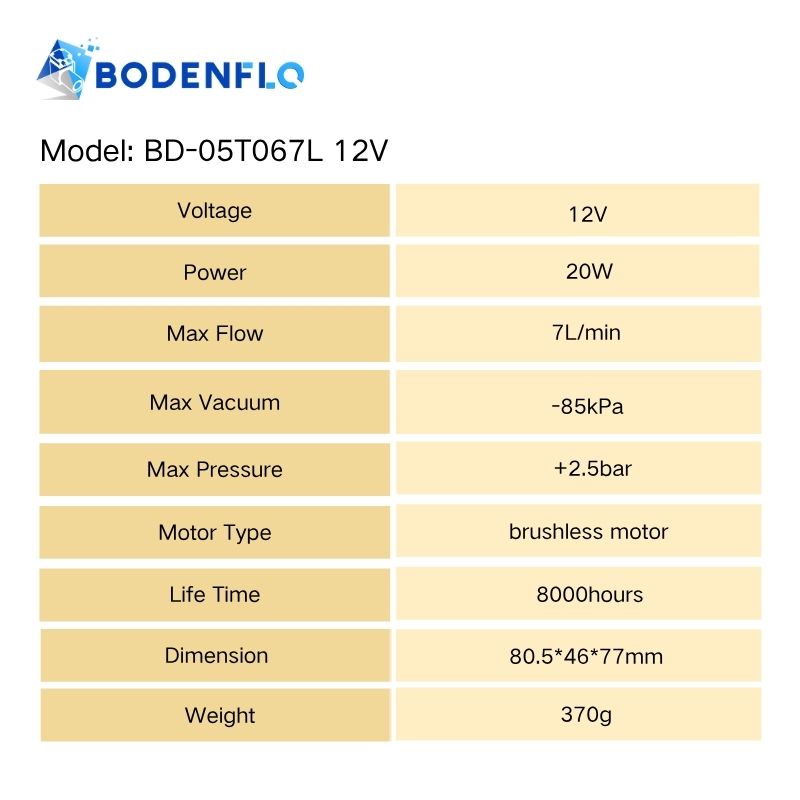

BD-05T067L 12V Technical Specifications:

• Name: Micro Diaphragm Vacuum Pump
• Model: BD-05T067L 12V
• Rated Voltage: 12V DC
• Power: 20W
• Max Pressure: >250 kPa ( 2.5 bar/ 0.25 MPa / 36.2594 psi)
• Max Vacuum: >-85 kPa ( -637mmHg /0.085 MPa )
• Max Flow: > 7L/min ( 7LPM / 420L/H)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)

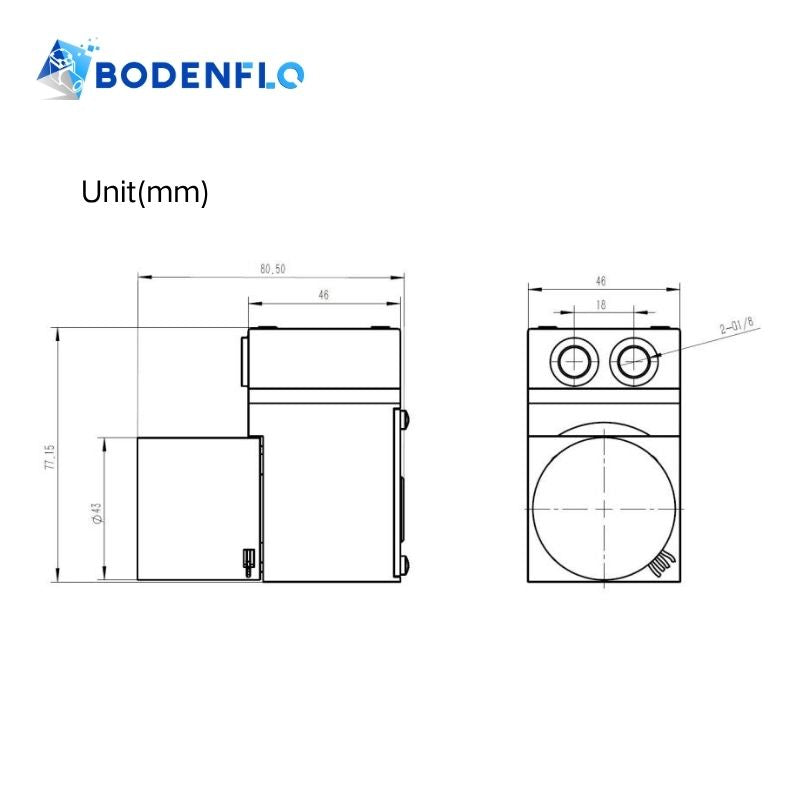

• Dimension: 80.5*46*77mm
• Weight: 307G(approx.)
• Storage Temperature: -40℃~60℃
• Operating Environment: 0℃~45℃
• Max Medium Temperature: -10℃~45℃

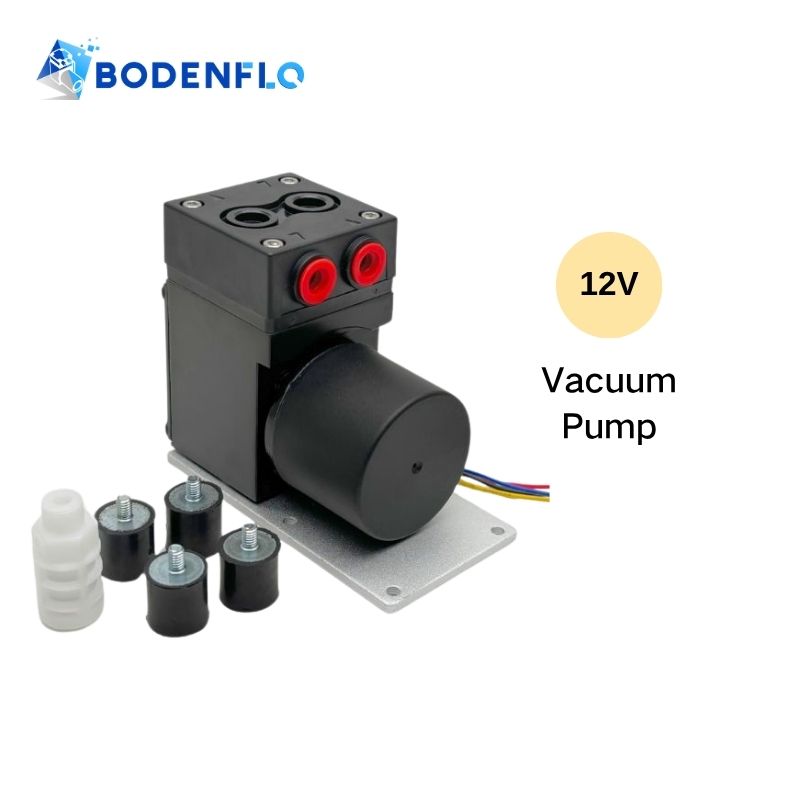

• Accessories: 4 shock absorbers, 1 filter

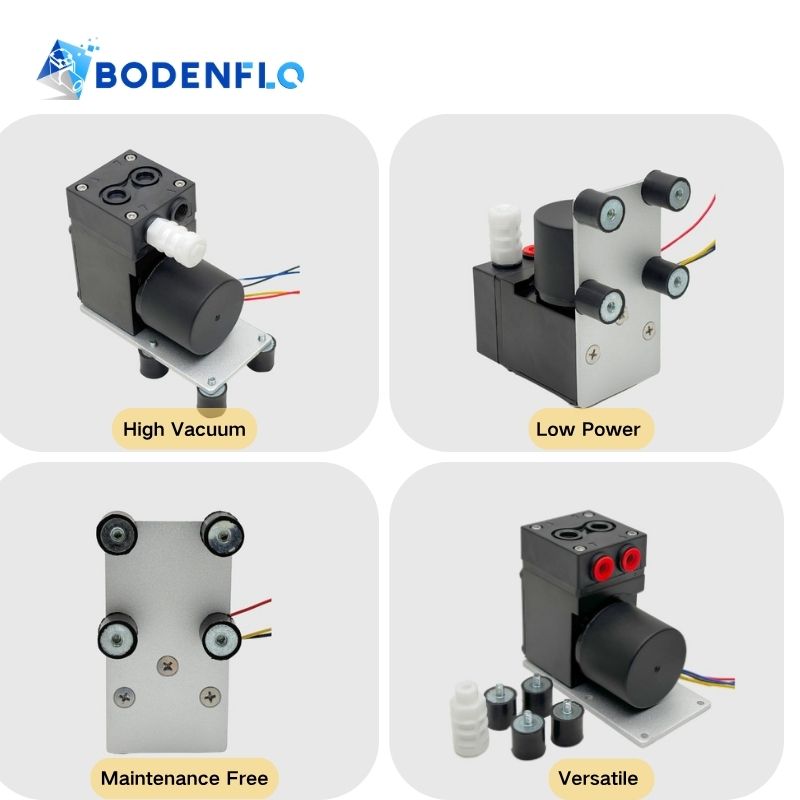

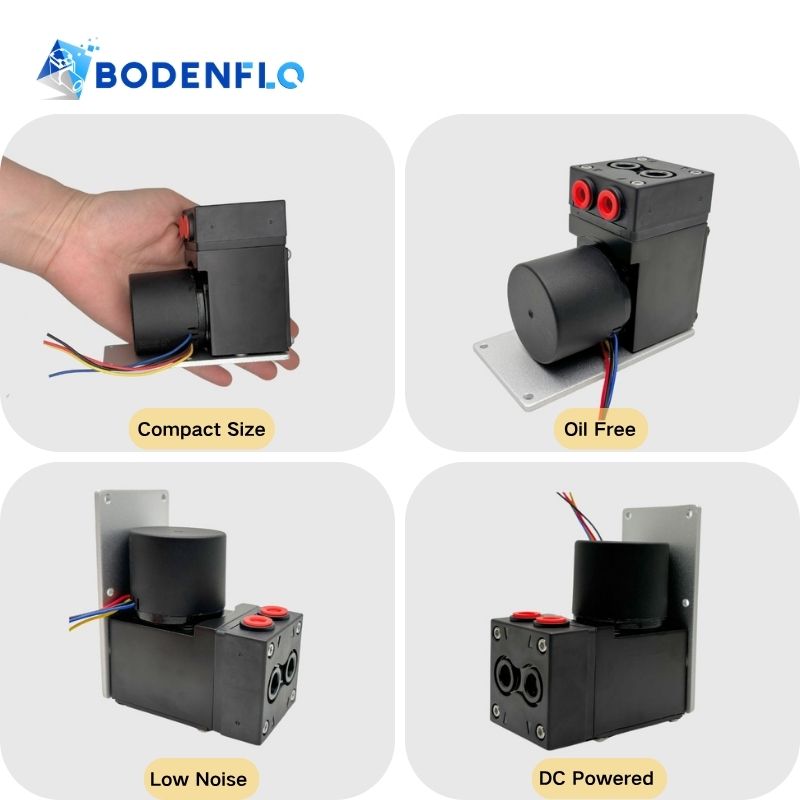

Key Features of Air Suction Pump:

• Compact Size: Easily integrated into portable or embedded equipment.
• Oil-Free Operation: Prevents contamination in gas sampling and lab analysis.
• Brushless Motor: Offers long service life with stable vacuum output.
• Quiet Running: Designed to minimize noise during continuous operation.
• Strong Negative Suction: Maintains consistent vacuum for accurate readings.

Common Applications:

• Gas Analysis Instruments: Supports precise sampling in laboratory and field-use gas analyzers.
• CEMS: Extracts gas samples for real-time emissions analysis in industrial stacks.
• VOC Detection Devices: Used in portable and stationary units to draw air samples for volatile organic compound monitoring.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
