12V Air Pump Piston Movement Aluminum Pump Head 35L Fast pumping BD-07A-M BODENFLO

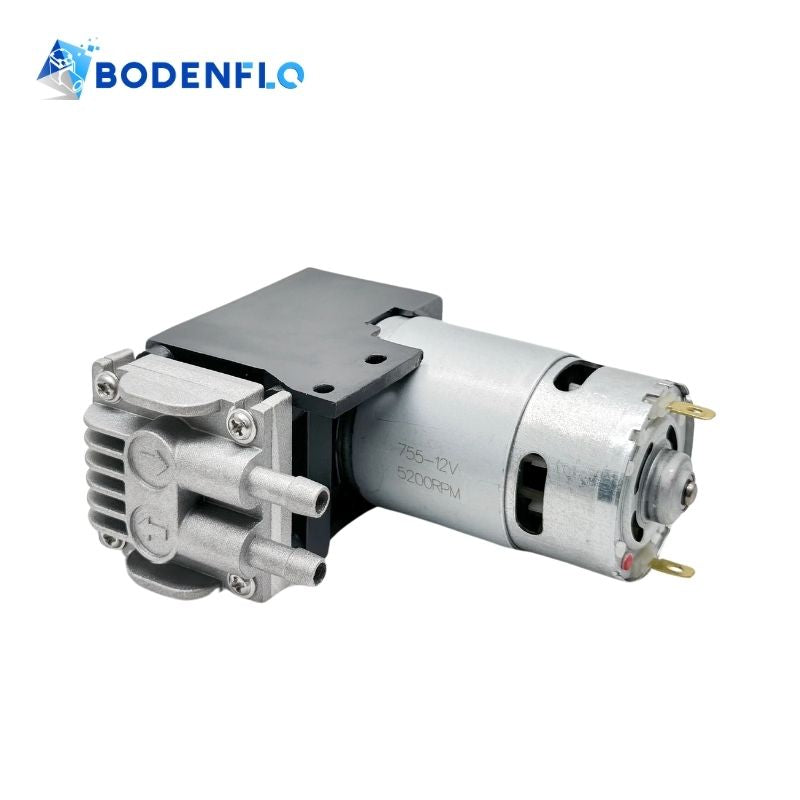

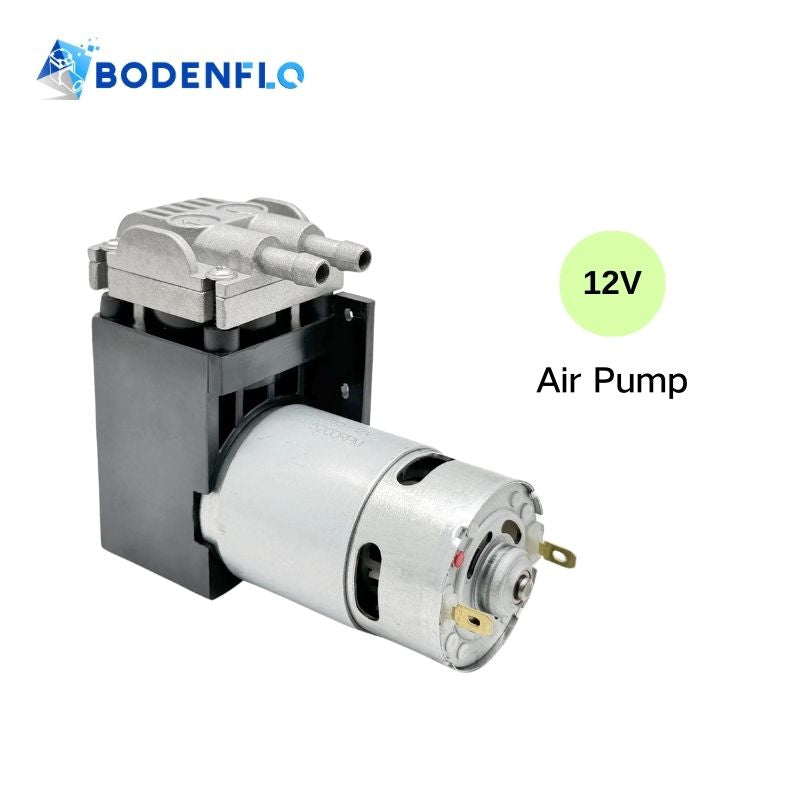

Introducing the BD-07A-M Micro Piston Air Pump, designed for efficiency and versatility in a compact form. Operating at 12V DC, this pump delivers exceptional performance with a maximum pressure of up to 650 kPa and a flow rate exceeding 35 L/min. Equipped with a durable aluminum alloy pump head and high-temperature, high-pressure custom valve plates, it ensures reliable and robust operation in demanding environments.

BD-07A-M18L Technical Specifications:

• Name: Micro Pressure Pump
• Model: BD-07A-M18L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.8psi)
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

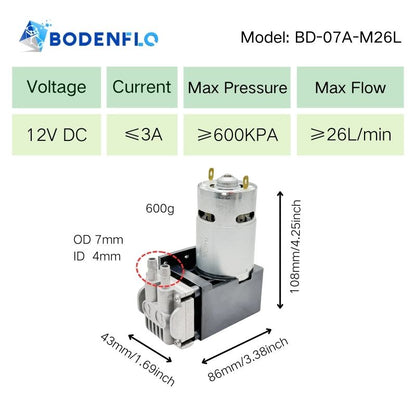

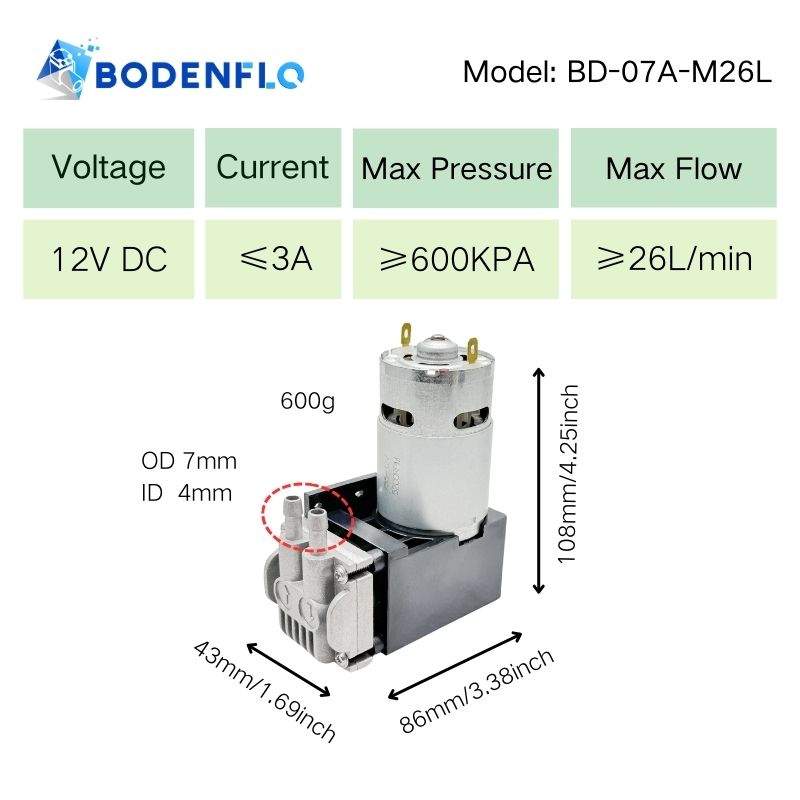

BD-07A-M26L Technical Specifications:

• Name: Mini Piston Air Pump
• Model: BD-07A-M26L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87psi)
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

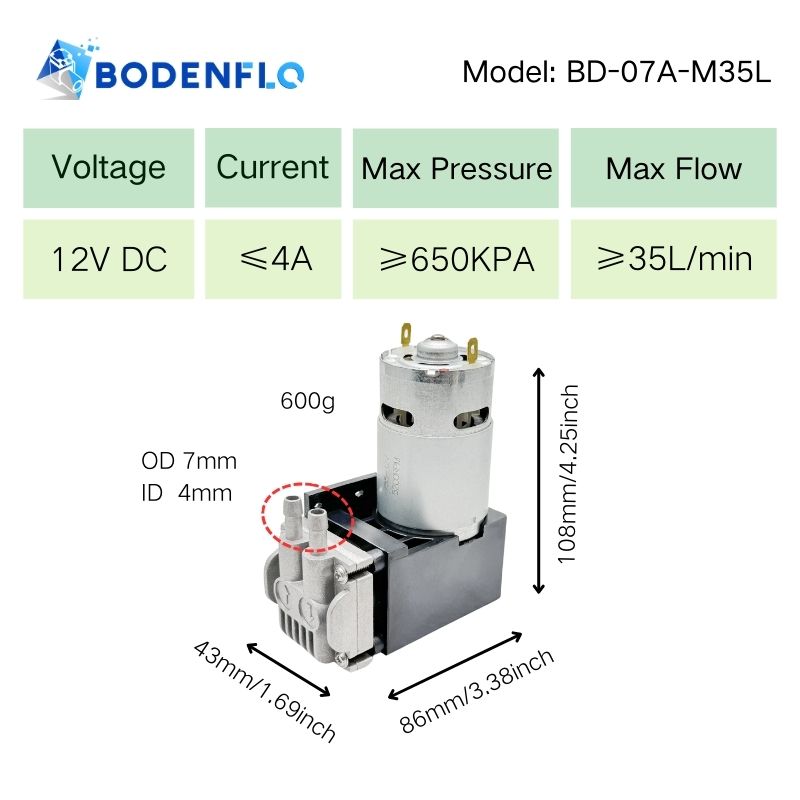

BD-07A-M35L Technical Specifications:

• Name: Air Pump 12V
• Model: BD-07A-M35L
• Rated Voltage: 12V DC
• Current : ≤4A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.3psi)
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Rabber Material: Customized high temperature and high pressure resistant
• Life time: 800-1000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86x43mm
• Weight: 600g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

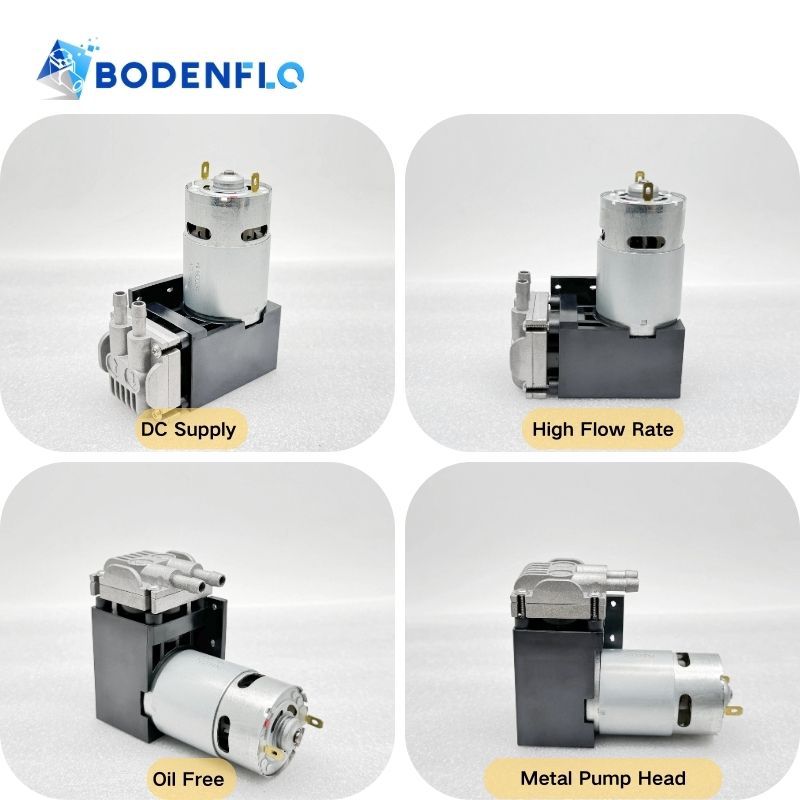

Key Features of Micro Pressure Pump:

• Enhanced Durability: The metal head construction provides greater strength and resistance to wear, ensuring long-lasting performance even in demanding environments.
• Improved Heat Dissipation: Metal heads can dissipate heat more effectively than plastic, which helps maintain optimal operating temperatures and prolongs the pump's lifespan.
• Easy Maintenance: The design facilitates straightforward maintenance, reducing downtime and ensuring continuous operation in critical applications.
• High Efficiency: Optimized for performance, this pump achieves superior pressure and flow rates, making it effective for demanding tasks.
• Temperature Resistance: The metal head allows the pump to operate effectively in a wider temperature range, accommodating various industrial processes.

Common Applications:

• Dental Syringes: Provide air for drying the work area during treatments, ensuring surfaces are properly prepped for bonding materials.
• Air Pressure Massage Devices: Engineered to drive air pressure massage systems, offering therapeutic benefits such as enhanced circulation and muscle relaxation with consistent air pressure delivery.
• Portable Air Compressors: Used in compact air pumps for inflating items like air mattresses, sports equipment, and small inflatables, offering convenience and portability.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
