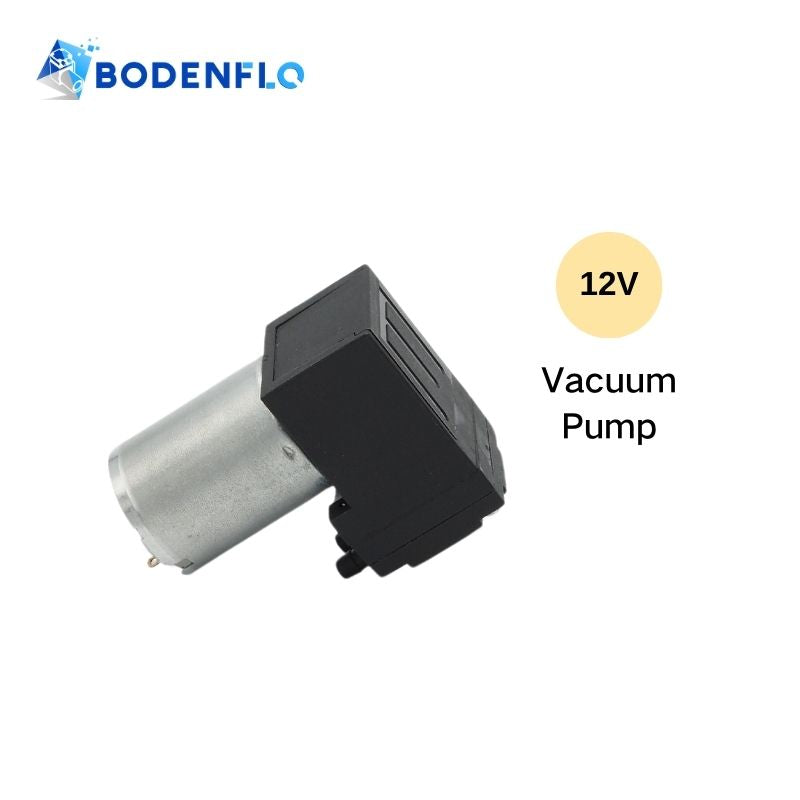

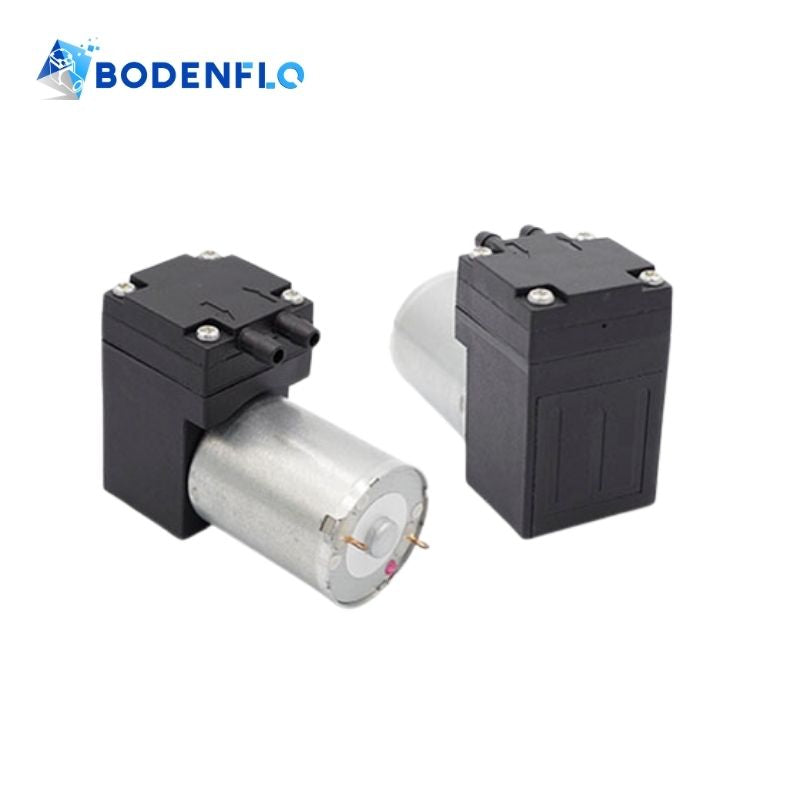

12V Micro Vacuum Pumps High Efficiency Negative Suction Pressure for Vacuum Therapy Devices BD-02V3L BODENFLO

BD-02V Micro Vacuum Pump by BODENFLO is designed for superior performance in applications requiring reliable negative suction pressure. Operating on 12V DC, this compact pump can achieve a maximum vacuum of -60 kPa, with flow rates exceeding 3 L/min. Its quiet operation (≤65dB) and durable design make it suitable for various settings, from medical devices to laboratory equipment. With a lifespan of up to 1000 hours, this micro vacuum pump ensures long-term reliability and efficiency.

 BD-02V1.5L Technical Specifications:

• Name: Micro Vacuum Pump
• Model: BD-02V1.5L
• Rated Voltage: 12V DC
• Current : ≤0.1A
• Max Vacuum: >-50 kPa ( -375mmHg /0.05 MPa )
• Max Flow: >1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

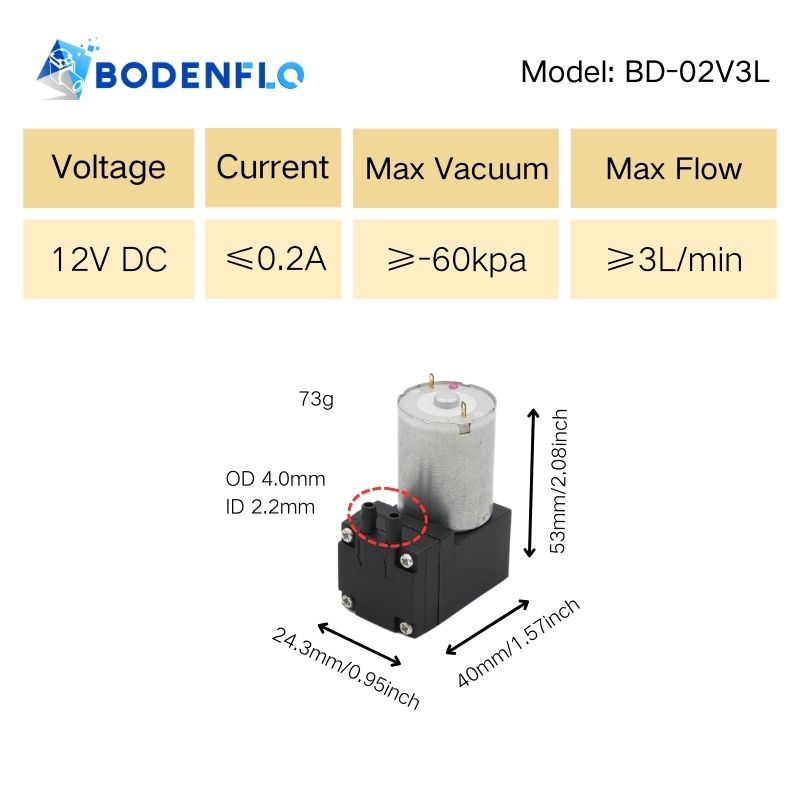

 BD-02V3L Technical Specifications:

• Name: Mini Vacuum Pump
• Model: BD-02V3L
• Rated Voltage: 12V DC
• Current : ≤0.2A
• Max Vacuum: >-60 kPa (-450mmHg / 0.06 MPa )
• Max Flow: >3 L/min (3 LPM / 180 L/H)
• Noise:★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 53x40x24.3mm
• Weight: 73g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

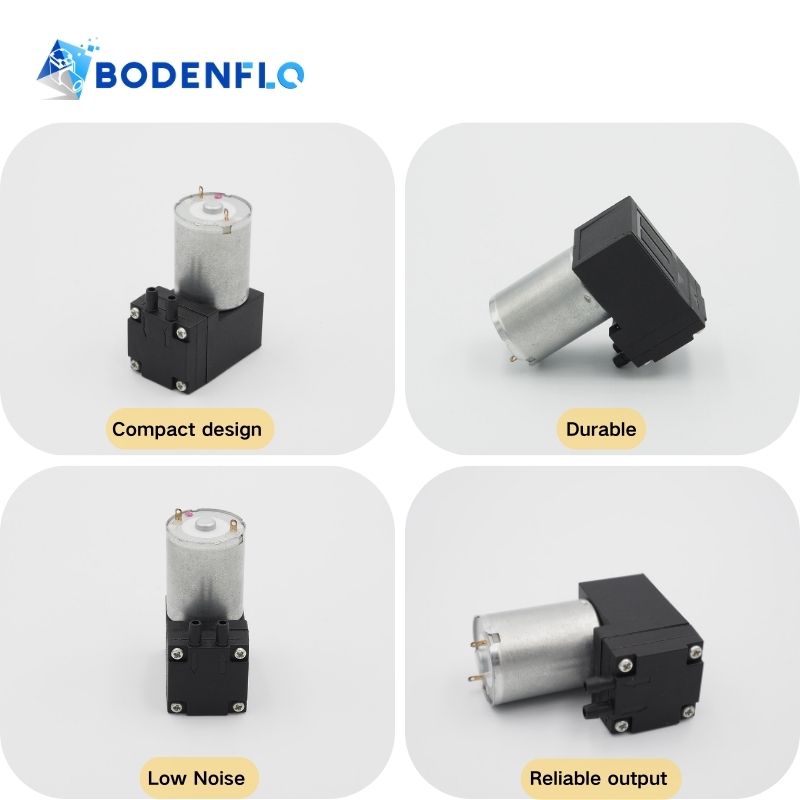

Key Features of Micro Vacuum Pump:

• High Efficiency: Provides powerful suction capabilities, making it ideal for demanding applications.
• Compact Size: Small footprint allows for easy integration into portable devices and limited spaces.
• Durable Design: Built to last, ensuring long operational life with minimal maintenance.
• Quiet Operation: Low noise levels make it suitable for environments where sound control is important.
• Fast Response Time: Quickly achieves desired vacuum levels, enhancing productivity in various applications.

Common Applications:

• Vacuum Therapy Devices: Powers systems for vacuum-assisted wound healing, promoting healing in medical applications.
• Personal Care Devices: Provides suction in facial vacuum cleaners, enhancing skincare routines by removing impurities.
• Medical Vacuum Systems: Powers suction devices in operating rooms and clinics for safe removal of fluids during procedures.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
