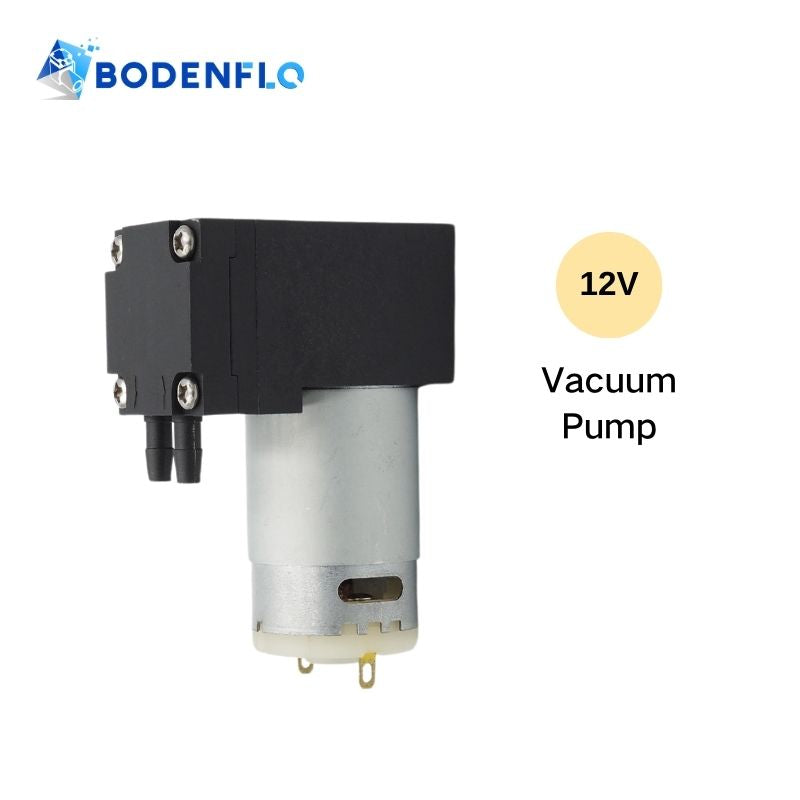

12V Vacuum Pump Mini High Vacuum for Compressor Vacuum BD-03V3L 6L BODENFLO

Enhance your system's performance with the BD-03V series Micro Vacuum Pumps, crafted specifically for diverse operational demands. The BD-03V3L and BD-03V6L models deliver unmatched efficiency and reliability in stringent environments, making them perfect for critical vacuum applications.

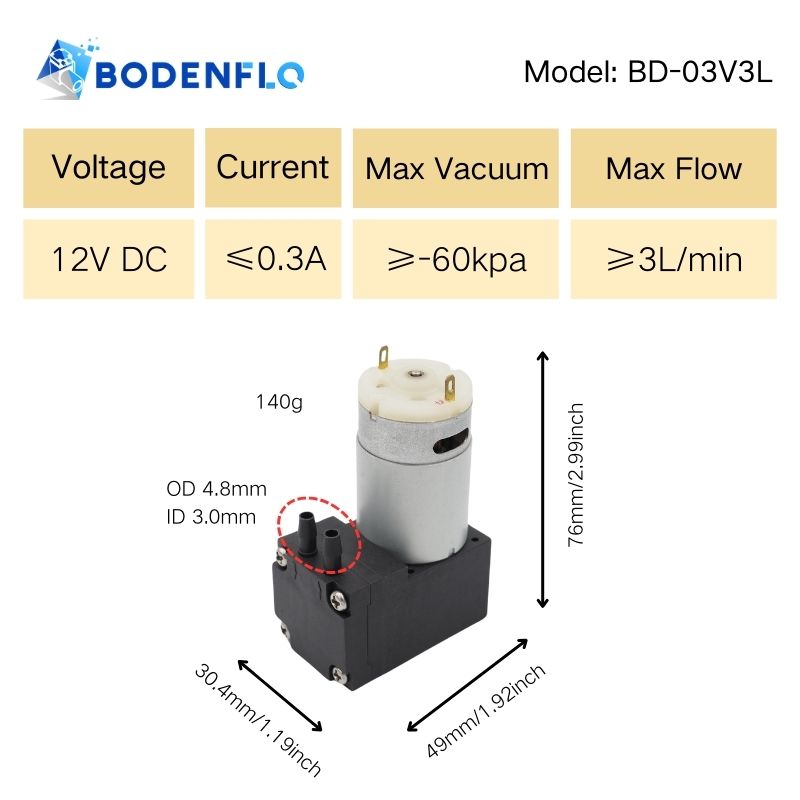

BD-03V3L Technical Specifications:

• Name: Micro Diaphragm Vacuum Pump
• Model: BD-03V3L
• Rated Voltage: 12V DC
• Current: ≤0.3A
• Max Vacuum: >-60 kPa (-450 mmHg / -0.060 MPa)
• Max Flow: >3 L/min (180 L/h)
• Noise: ★

BD-03V6L Technical Specifications:

• Name: Diaphragm Vacuum Pump 12V
• Model: BD-03V6L
• Rated Voltage: 12V DC
• Current: ≤0.6A
• Max Vacuum: >-70 kPa (-525 mmHg / -0.070 MPa)
• Max Flow: >6 L/min (360 L/h)
• Noise: ★★

General Specifications:

• Motor Type: DC Brush Motor
• Life time: 800-1000 Hours
• Noise: ≤58-65dB (with silencer can be reduced by 1-3dB)
• Dimension: 76x49x30mm
• Weight: 140g (approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Micro Diaphragm Vacuum Pumps:

1. Precision Vacuum Control: Enables accurate pressure settings for sensitive applications.
2. Energy Efficient: Low power consumption enhances operational cost savings.
3. Compact and Durable: Small footprint allows easy integration into space-constrained environments; built to last.
4. Low Acoustic Noise: Designed for quiet operation, ideal for noise-sensitive environments.
5. Maintenance-Free: Requires minimal upkeep, thanks to its robust construction and reliable design.

Common Applications:

1. Vacuum Packaging: Ensures airtight sealing for food preservation and electronic product packaging.
2. Medical Devices: Supports various medical applications requiring precise vacuum, such as respiratory machines.
3. Laboratory Equipment: Used in scientific research for vacuum filtration and other lab processes needing controlled suction.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
