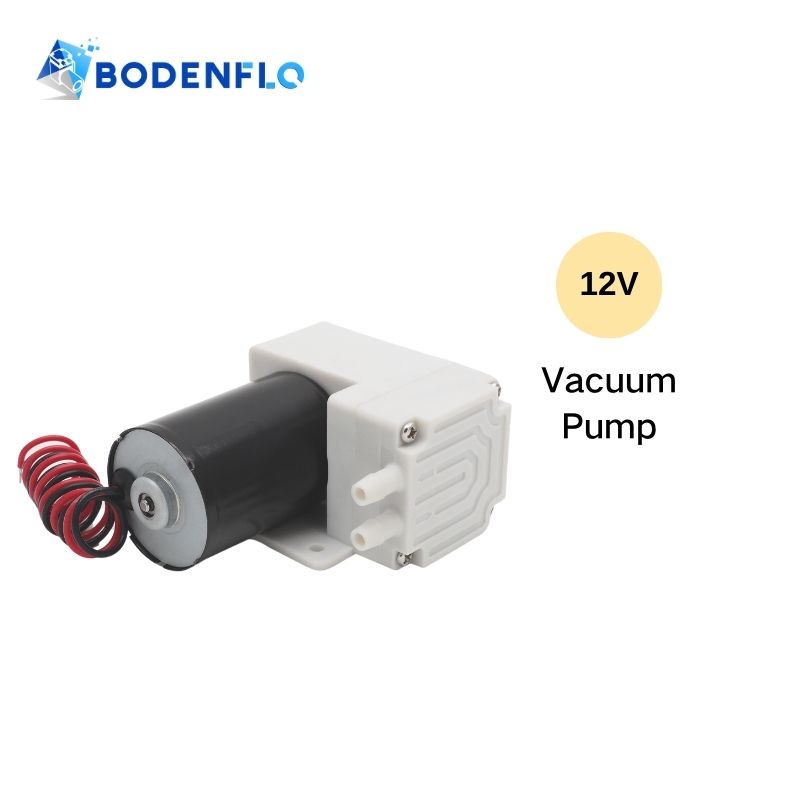

12V Micro Vacuum Pump High Flow 20L/min Dental Suction Systems Use BD-04VB BODENFLO

BD-04VB is a range of high-performance, small suction pumps powered by advanced brushless DC motors. Available in models offering a variety of vacuum and flow rates (11 L/min, 15 L/min, and 20 L/min), these pumps are designed for high-efficiency operation with low noise.

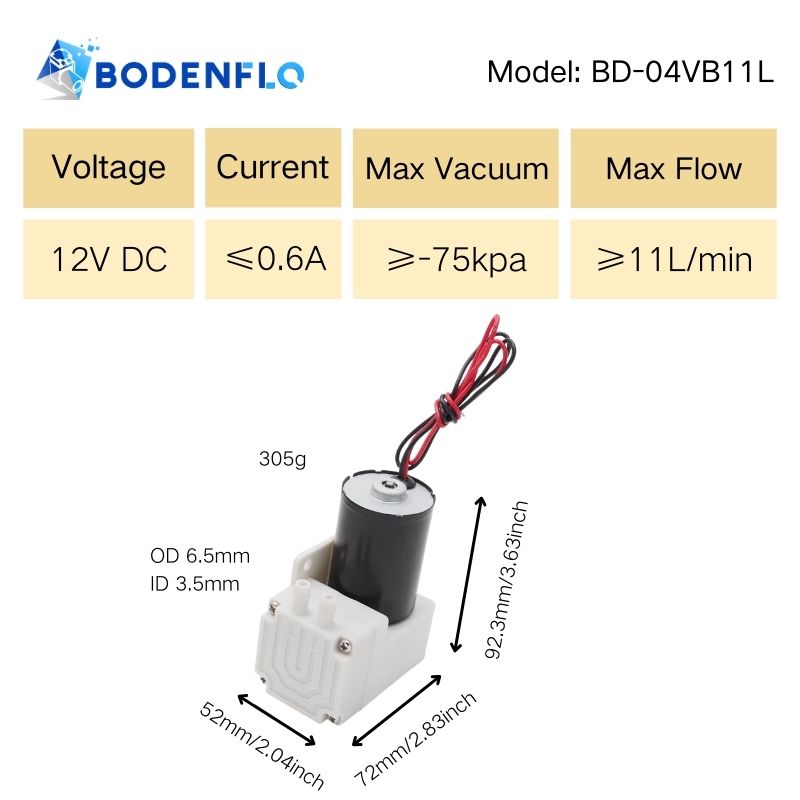

BD-04VB11L Technical Specifications:

• Name: 12 Volt Vacuum Pump
• Model: BD-04VB11L
• Rated Voltage: 12V DC
• Current : ≤0.6A
• Max Vacuum: ≥-75 kPa (-562 mmHg /0.075 MPa )
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise: ★

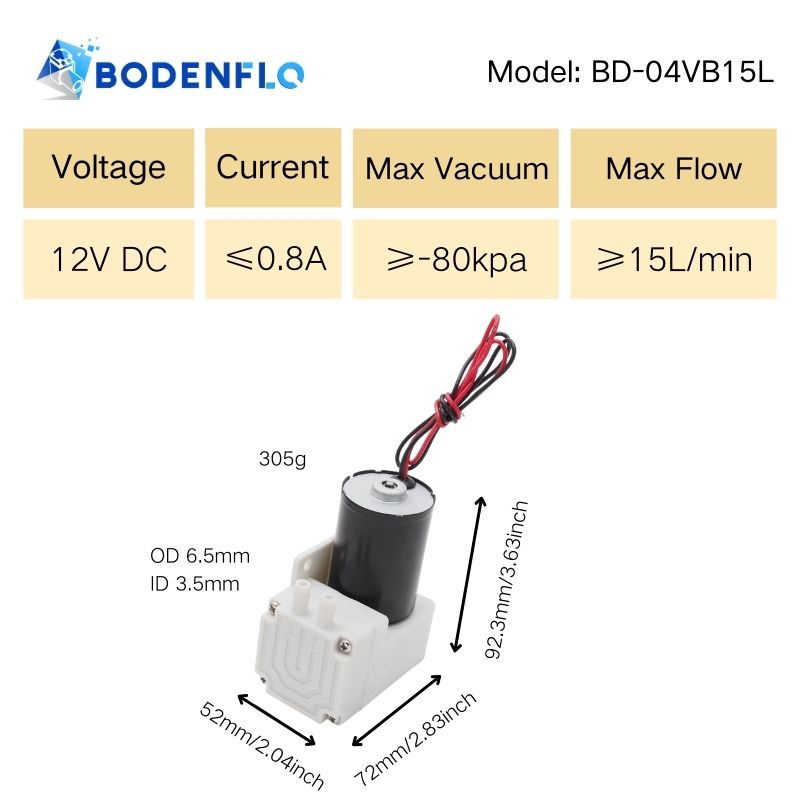

 BD-04VB15L Technical Specifications:

• Name: Small Diaphragm Air Pump
• Model: BD-04VB15L
• Rated Voltage: 12V DC
• Current : ≤0.8A
• Max Vacuum: ≥-80 kPa (-600 mmHg / 0.08 MPa )
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise: ★★

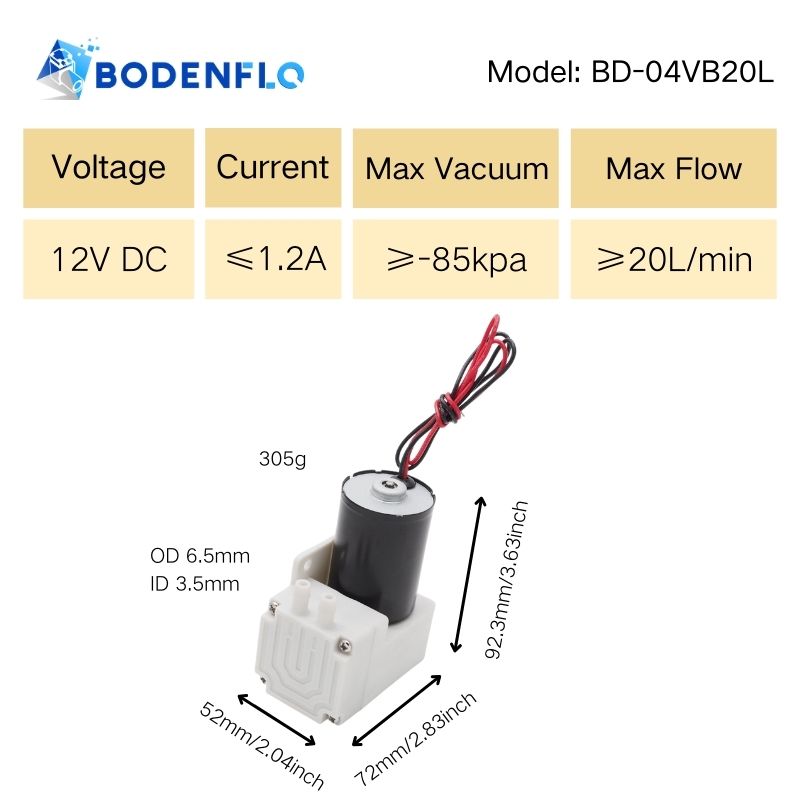

 BD-04VB20L Technical Specifications:

• Name: Micro Vacuum Pumps
• Model: BD-04VB20L
• Rated Voltage: 12V DC
• Current: ≤1.2A
• Max Vacuum: ≥-85 kPa (-637 mmHg / 0.085 MPa )
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise: ★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 5000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 92.3x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Vacuum Pump:

• Longer Lifespan: The brushless motor ensures up to 5000 hours of continuous use, reducing maintenance costs.
• Precise Control: Brushless designs allow for more accurate control of speed and pressure, ideal for sensitive industrial processes.
• Low Maintenance: The absence of brushes reduces the need for frequent maintenance, leading to lower operational costs.
• Stable Vacuum Output: Offers consistent and reliable vacuum performance over time, making it ideal for precision applications.

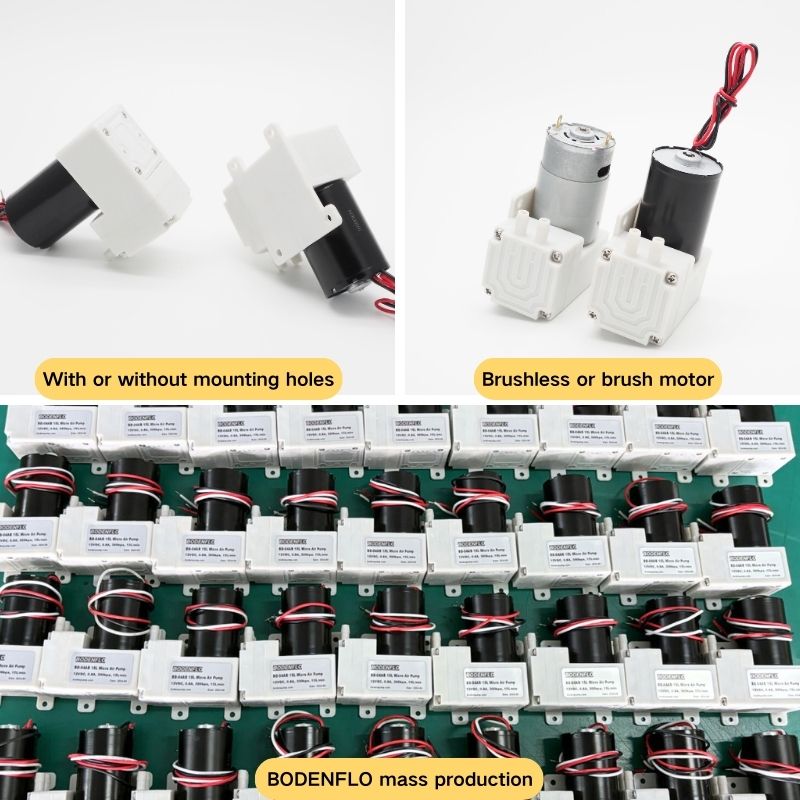

• Customizable Options: OEM options allow for modifications in flow rate, vacuum pressure, and more, to meet specific customer needs.

Common Applications:

• Dental Suction Systems: Employed in dental vacuum devices for efficient fluid extraction during surgical procedures.
• Portable Refrigeration Units: Used in portable cooling systems and refrigeration units where efficient vacuum creation is necessary for system operation.
• Electronic Component Manufacturing: Ideal for pick-and-place machines, used in semiconductor and PCB manufacturing where delicate suction is needed.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
