12V Vacuum Pump High Pressure Piston 17-30L Negative Pump BD-07V 637mmHg BODENFLO

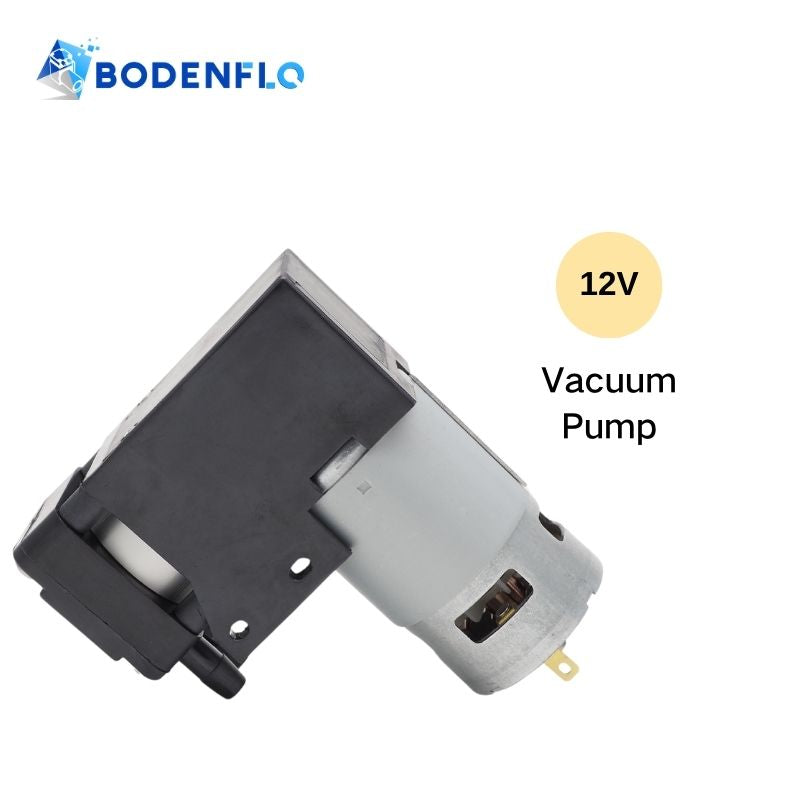

BD-07V Series Vacuum Pump, designed for high performance in a compact form. This diaphragm pump operates efficiently at 12V DC, providing a maximum vacuum pressure of up to -85 kPa and flow rates reaching 30 L/min. Engineered for durability with a lifespan of 800-1000 hours, this pump is ideal for various industrial applications. Its low noise operation makes it perfect for environments requiring discretion.

BD-07V17L Technical Specifications:

• Name: Vacuum pump
• Model: BD-07V17L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Vacuum: >-80 kPa ( -600mmHg /0.08 MPa )
• Max Flow: >17 L/min (17 LPM / 1020 L/H)
• Noise:★

BD-07V25L Technical Specifications:

• Name: 12V Vacuum Pump
• Model: BD-07V25L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >25 L/min (25 LPM / 1500 L/H)
• Noise:★★

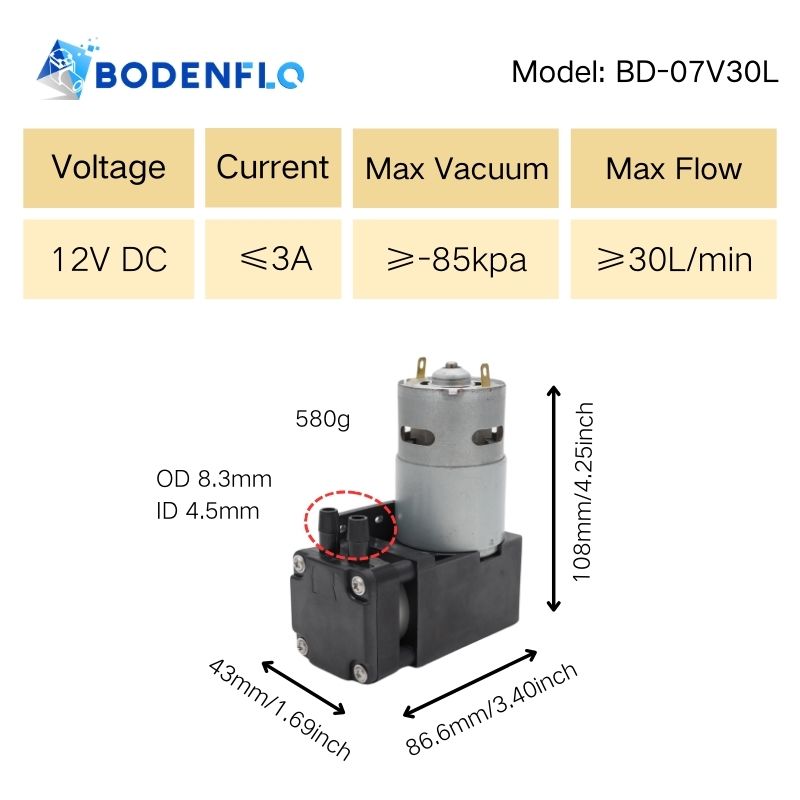

BD-07V30L Technical Specifications:

• Name: DC Vacuum Pump
• Model: BD-07V30L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >30 L/min (30 LPM / 1800 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-67dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86.6x43mm
• Weight: 580g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Vacuum Pump:

• Stable Vacuum Pressure: Maintains consistent vacuum levels for effective performance.
• User-Friendly: Intuitive design allows for straightforward installation and operation.
• Versatile Applications: Suitable for a wide range of industries and uses.
• Easy Maintenance: Designed for simple upkeep and long-term reliability.
• Compact Design: Small footprint makes it easy to integrate into various systems.

Common Applications:

• Beauty Equipment: The 12V vacuum pump is essential in beauty devices, offering gentle yet effective suction for skin treatments and enhancing cosmetic procedures.
• Automation: The 12V vacuum pump enhances automation systems, enabling rapid and reliable vacuum solutions for various automated material handling and processing tasks.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
