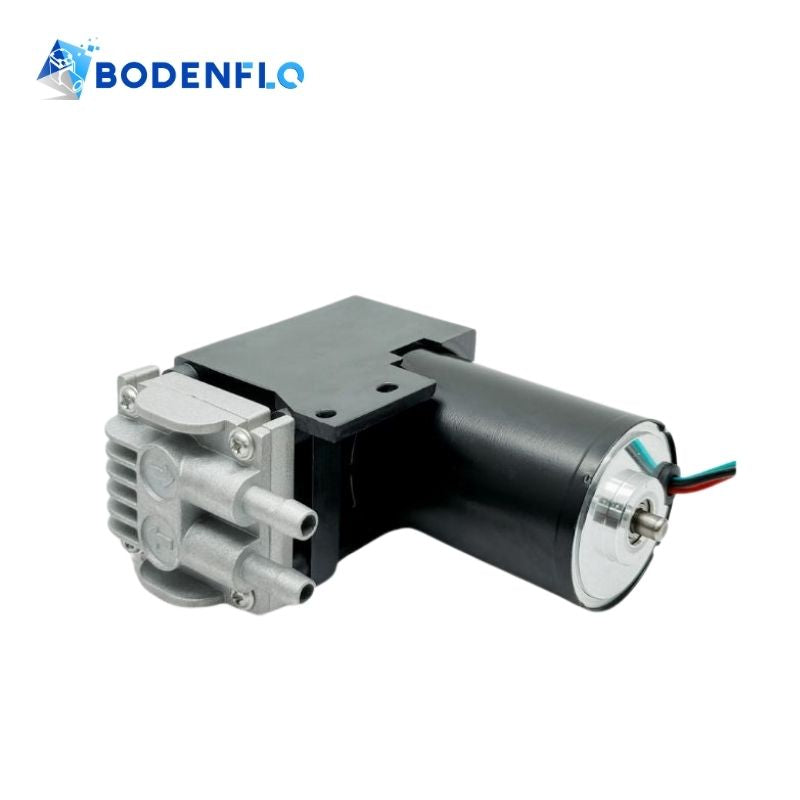

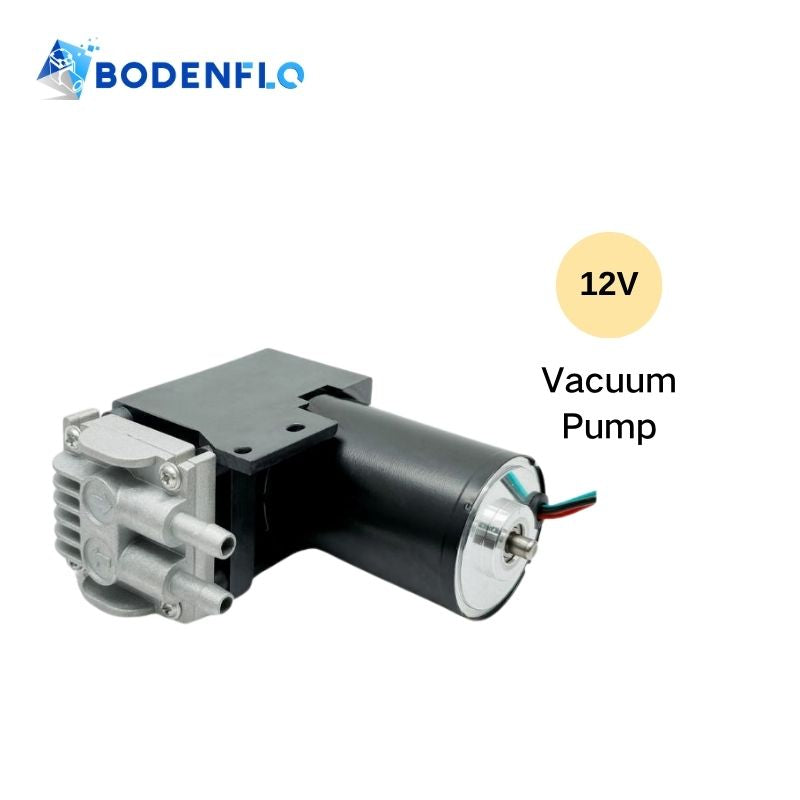

12V Mini Vacuum Pump Brushless For Pick-and-Place Robot BD-07VB-M 35L -86KPA BODENFLO

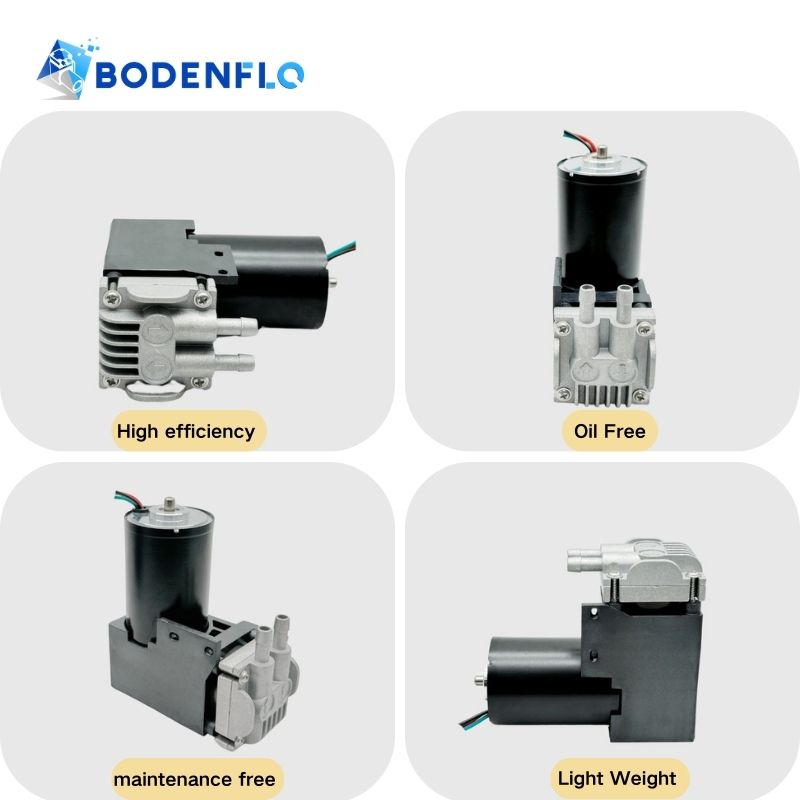

The BD-07VB-M Mini Vacuum Pump is a reliable and compact solution designed for high-performance vacuum applications. Powered by a 12V DC brushless motor, this pump delivers impressive vacuum pressures of up to -86 kPa, making it suitable for medical, industrial use. Available in multiple flow rates (18 L/min, 26 L/min, 35 L/min), it offers versatility to meet various needs. Featuring a durable metal head and a long service life of up to 3000 hours, this pump ensures consistent and efficient operation for demanding applications.

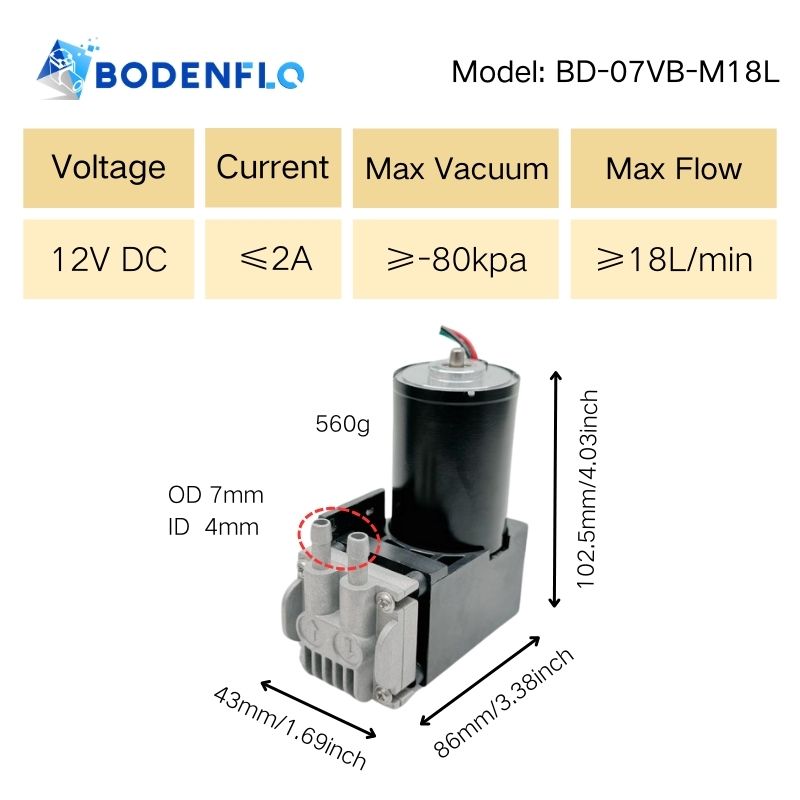

BD-07VB-M18L Technical Specifications:

• Name: Mini Vacuum Pump
• Model: BD-07VB-M18L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Vacuum: >-80 kPa ( -600mmHg /0.08 MPa )
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07VB-M26L Technical Specifications:

• Name: Piston Vacuum Pump
• Model: BD-07VB-M26L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

BD-07VB-M35L Technical Specifications:

• Name: Micro Piston Pump
• Model: BD-07VB-M35L
• Rated Voltage: 12V DC
• Current : ≤4A
• Max Vacuum: >-86 kPa (-645mmHg / 0.086 MPa )
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 3000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 102.5x86x43mm
• Weight: 580g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Mini Vacuum Pump:

• Brushless DC Motor: Ensures high energy efficiency, a longer service life, and reduced maintenance.
• High Vacuum Performance: Delivers reliable suction power, ideal for precise applications requiring strong vacuum forces.
• Compact & Lightweight: Easily integrated into tight spaces while offering powerful performance.
• Durable Metal Head Construction: Provides superior resistance to wear and tear, ensuring extended pump longevity.
• Minimal Maintenance: Fewer moving parts result in easier upkeep and longer lifespan.

Common Applications:

• Suction Cups for Automation: Powers suction cups in automated systems for efficient material handling in manufacturing and assembly lines.
• Pick-and-Place Systems: Used in electronics manufacturing to handle delicate components safely, ensuring accurate placement on circuit boards.
• Dental Suction: Provides efficient suction for saliva, water, and debris removal during dental procedures, ensuring a clean and dry environment.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
