12V Miniature Vacuum Pump -70kpa 7.2L Oil-Free for Medical & Sampling BD-05TVB BODENFLO

BD-05TVB is a dc vacuum pump designed for high-efficiency air suction in compact devices. Its lightweight, oil-free design and dual-head structure make it a versatile component for vacuum therapy, portable analyzers, and sampling systems.

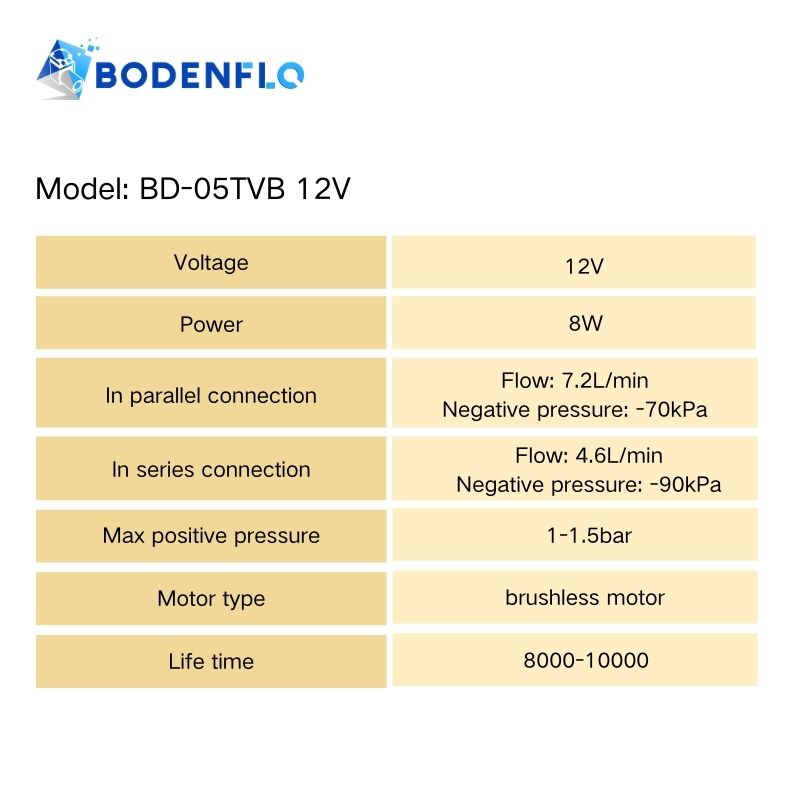

BD-05TVB 12V Technical Specifications:

• Name: 12V Negative Pressure Pump
• Model: BD-05TVB 12V
• Rated Voltage: 12V DC
• Power: 8W
• In Parallel Connection:

           Flow: 7.2L/min

           Negative Pressure: -70kPa ( -525 mmHg /0.07 MPa )

• In Series Connection:

           Flow: 4.6L/min

           Negative Pressure: -90kPa ( -675 mmHg /0.09 MPa )

• Max Pressure: >100-150 kPa ( 1-1.5 bar/ 0.1-0.15 MPa / 14.5037-21.7556 psi)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000-10000 Hours
• Noise: ≤60dB

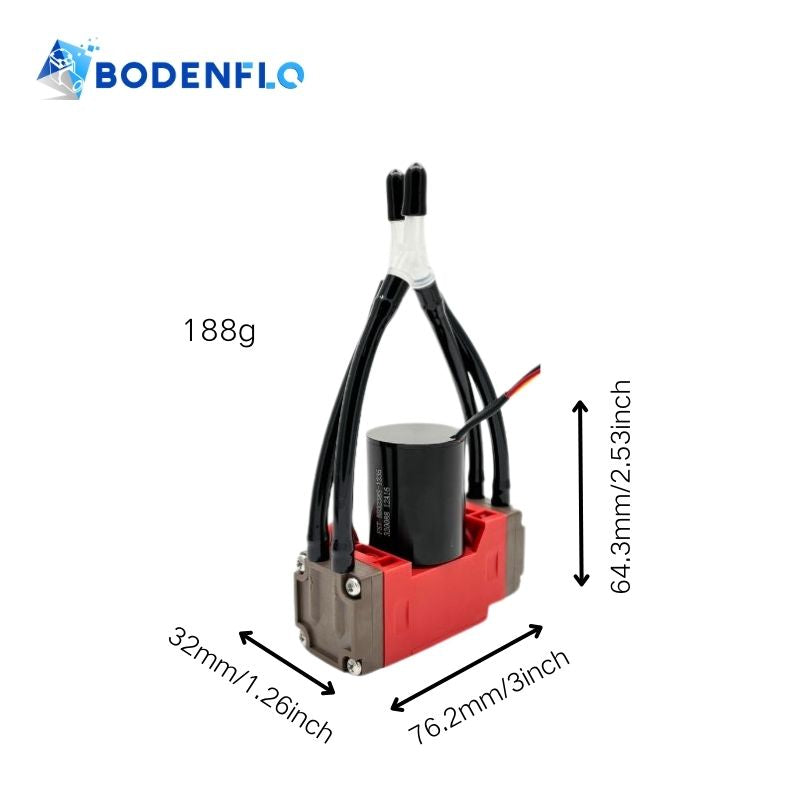

• Dimension: 76.2x64.3x32mm
• Weight: 188G(approx.)
• Operating Environment Temperature: -20-45℃
• Medium Temperature: -10-45℃

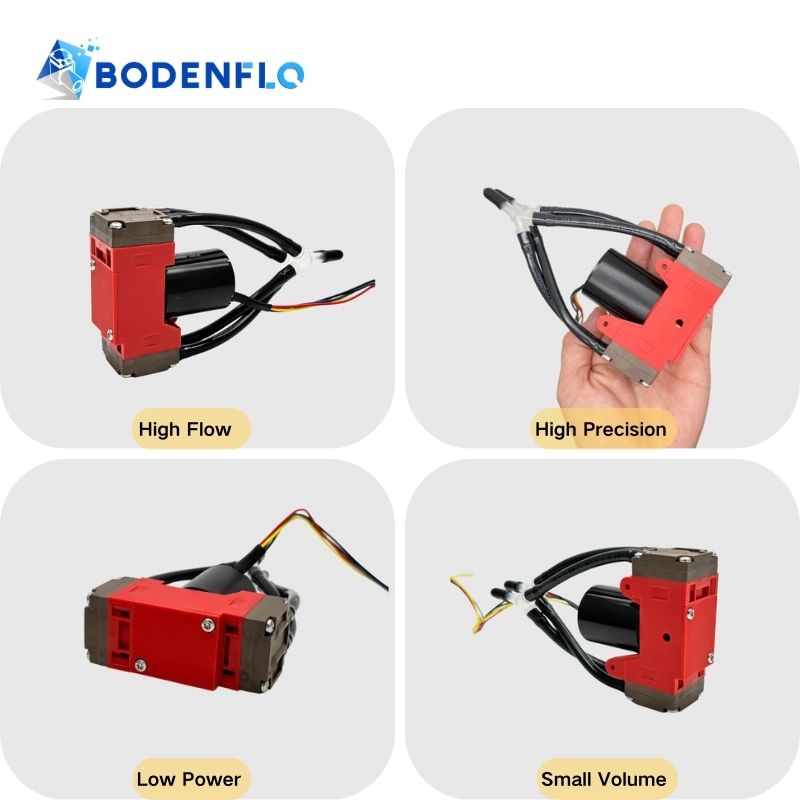

Key Features of Miniature Vacuum Pump:

• Compact Size: Easy to integrate into space-constrained devices such as portable medical or analytical tools.
• Oil-Free Operation: Provides clean airflow with no risk of oil contamination or maintenance interruptions.
• Low Power Consumption: Ideal for battery-operated systems or energy-efficient equipment.
• Stable Suction Performance: Maintains consistent negative pressure, crucial for applications requiring controlled vacuum.
• Long Service Life: Designed with wear-resistant components for extended continuous-duty operation.

Common Applications:

• Vacuum Therapy Devices: Generates controlled negative pressure in wound healing and rehabilitation equipment.
• Handheld Air Quality Detectors: Powers suction in portable instruments for real-time environmental monitoring.
• VOC Detection: Used in compact systems to extract and analyze volatile organic compounds.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
