12V Piston Compressor Oil free 620g CE-EMC High-Pressure Brush Air Pumps | BODENFLO

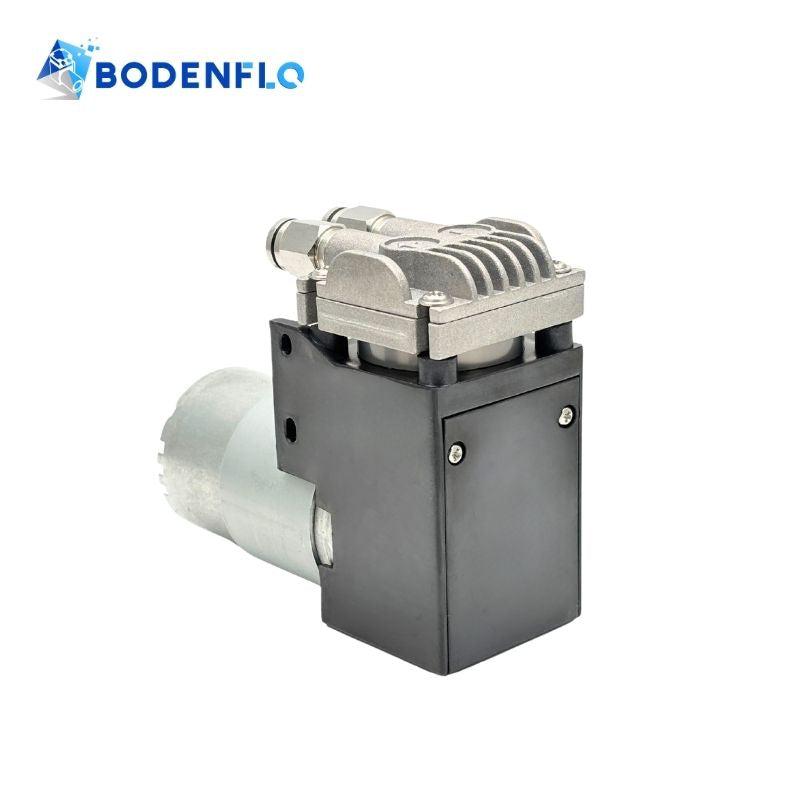

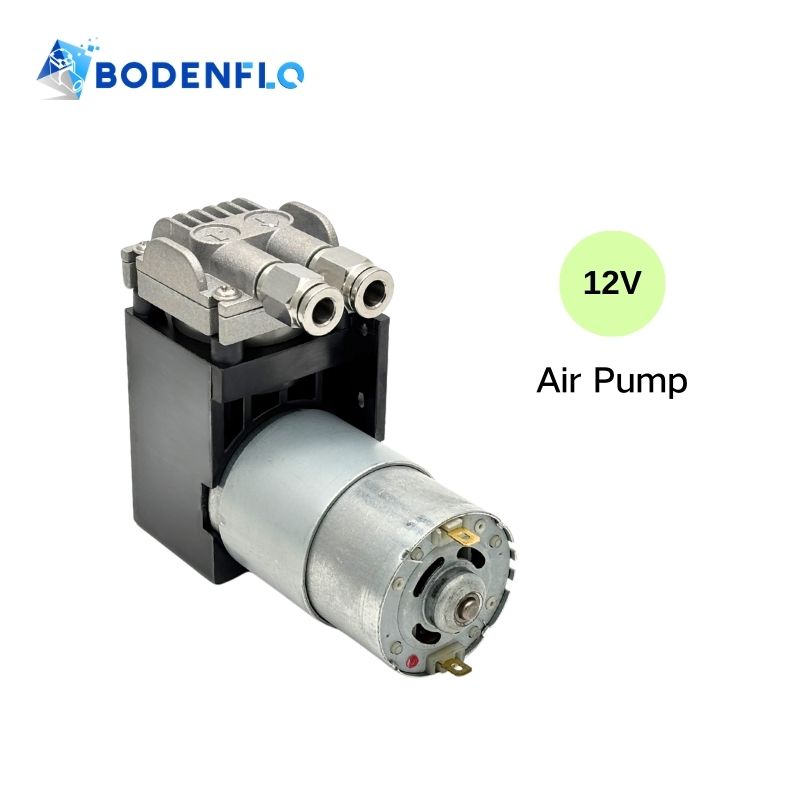

The BD-07A-M is a 12V piston compressor, engineered for high-pressure applications requiring reliable and efficient DC air pumps. Featuring a metal pump head and compact design, this mini air compressor is built for durability and superior performance. With a maximum pressure of 6 Bar and a flow rate of 20 L/min, it is ideal for industries needing stable air compression in a small form factor.

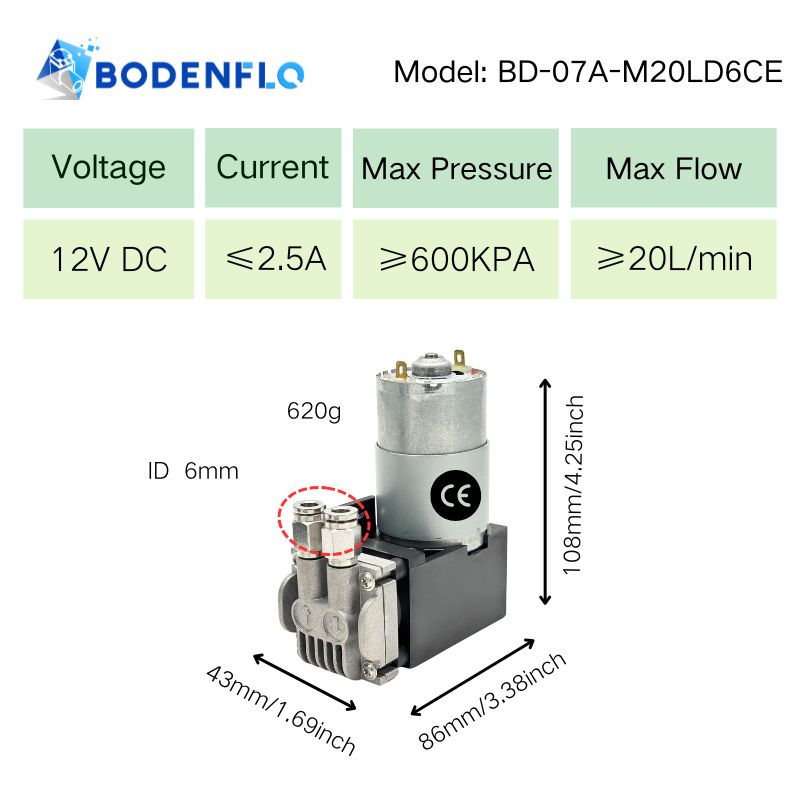

BD-07A-M20LD6CE Technical Specifications:

• Name: Micro Air Pump
• Model: BD-07A-M20LD6CE
• Rated Voltage: 12V DC
• Current : ≤2.5A
• Max Pressure: >600 kPa ( 6bar /0.6 MPa )
• Max Flow: >20 L/min (20 LPM /1200 L/H)
• Noise:★★

General Specifications

• Motor Type: DC Brush Motor CE-EMC
• Life time: 1000 Hours
• Noise: ≤70dB(with silencer can be reduce 1-3dB)
• Dimension: 108x43x86mm
• Weight: 620g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

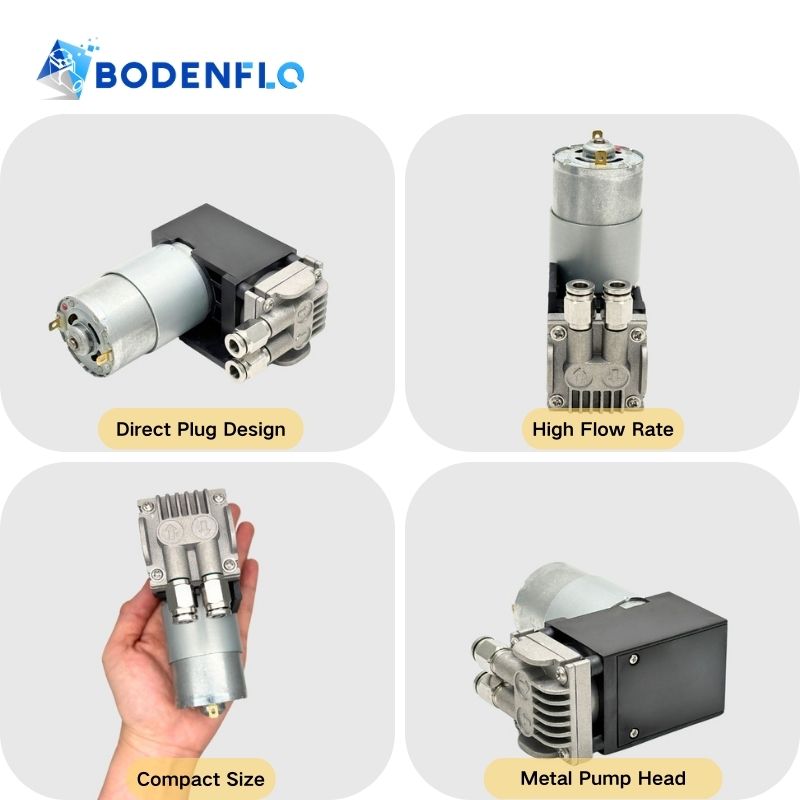

Key Features of Air Suction Pump:

✔ Compact & Lightweight – Easily integrates into space-constrained applications.
✔ High Performance – Delivers stable air compression with minimal power consumption.
✔ Durable Construction – Features a metal pump head for enhanced reliability.
✔ Strong Airflow & Pressure – Generates up to 6 Bar pressure for demanding applications.
✔ Reliable & Low Noise – Optimized for smooth operation with minimal vibration.

Common Applications:

• Coffee Machines – Provides stable air pressure for automatic milk frothing and extraction systems.
• Industrial Automation – Powers pneumatic tools, robotic arms, and control systems.
• Medical Equipment – Used in devices requiring steady air compression, such as nebulizers.
• Portable Air Systems – Ideal for compact compressors in mobile and battery-powered applications.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
