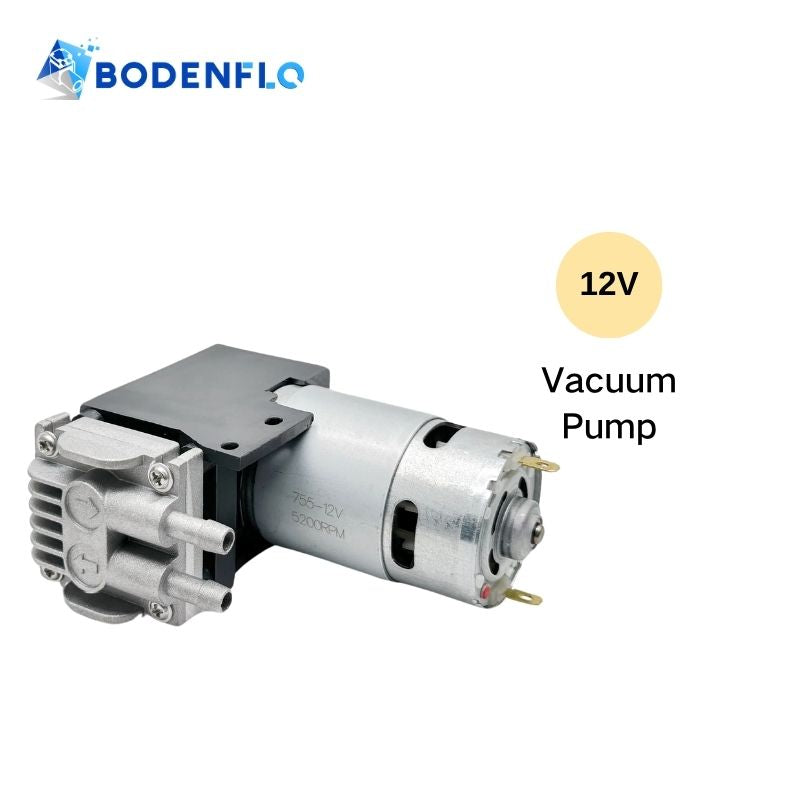

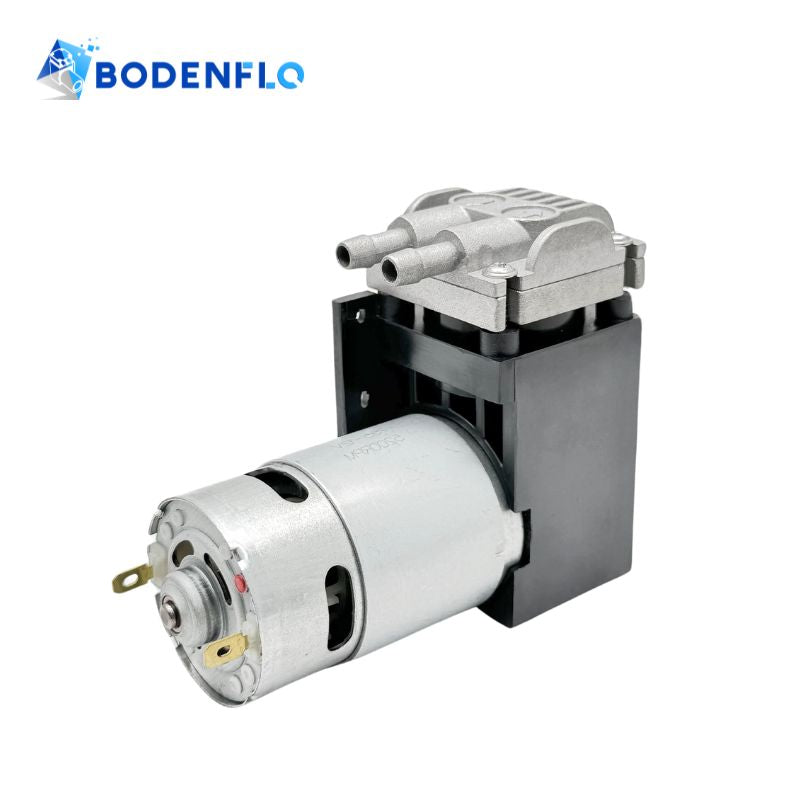

12V Vacuum Pump BD-07V-M with 600-645mmHg High Efficiency for Compact Vaccum System BODENFLO

The 12V BD-07V-M series of small piston air pumps is designed to deliver exceptional performance across a variety of demanding applications. Featuring a powerful DC brush motor, this 12-volt vacuum pump offers outstanding vacuum levels and flow rates, making it an ideal choice for industrial use and compact instrumentation.

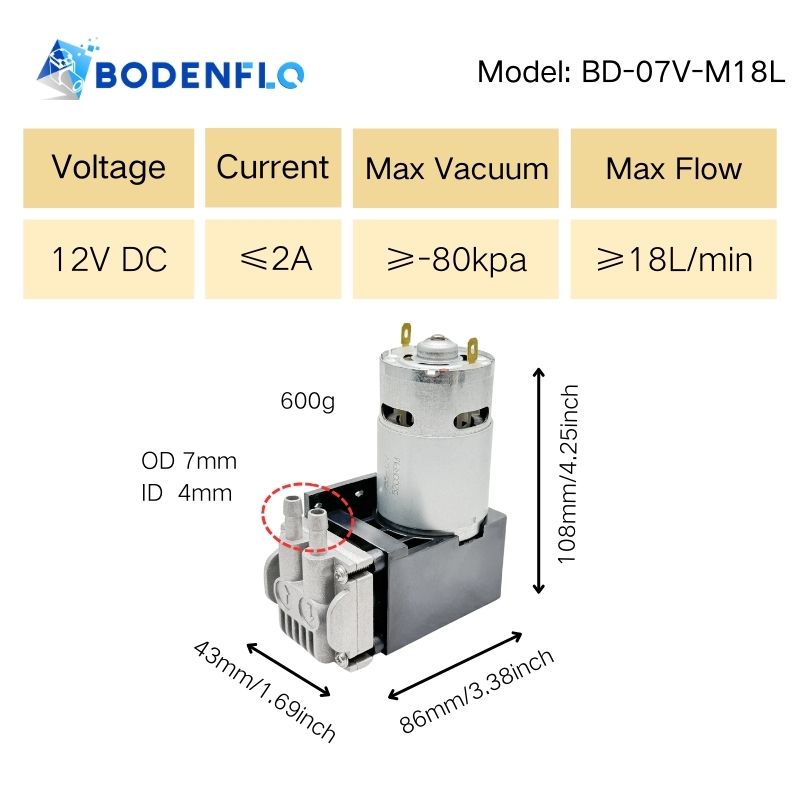

BD-07V-M18L Technical Specifications:

• Name:12 Volt Vacuum Pump
• Model: BD-7V-M18L
• Rated Voltage: 12V DC
• Current : ≤2A
• Max Vacuum: ≥-80 kPa ( -600mmHg /0.080 MPa )
• Max Flow: ≥18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07V-M26L Technical Specifications:

• Name: Small Vacuum Pump
• Model: BD-07V-M26L
• Rated Voltage: 12V DC
• Current : ≤3A
• Max Vacuum: ≥-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: ≥26 L/min (26 LPM / 1560 L/H)
• Noise:★★

BD-07V-M35L Technical Specifications:

• Name: Micro Vacuum Pump
• Model: BD-07V-M35L
• Rated Voltage: 12V DC
• Current : ≤4A
• Max Vacuum: ≥-86 kPa (-645mmHg / 0.086 MPa )
• Max Flow: ≥35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86x43mm
• Weight: 600g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Small Diaphragm Pump:

• Durable Construction: Features a robust PTFE rubber and metal head for enhanced durability and a long operational lifespan.
• User-Friendly: Easy to install and operate, allowing for straightforward integration into existing systems and processes.
• Compact Size: Space-saving design allows for seamless integration into various equipment and devices without compromising performance.

Common Applications:

• Dental Vacuum Systems: Used in saliva ejectors and suction tools to maintain a clean operating area, supporting smoother and more hygienic dental procedures.
• Pick-and-Place Systems: Used in electronics manufacturing to handle delicate components safely, ensuring accurate placement on circuit boards.
• Beauty Devices: Generate gentle vacuum pressure to stimulate blood circulation and support skin-firming treatments.
• Vacuum Clamping Systems: Provide strong and reliable suction for securely holding workpieces during machining, cutting, or assembly processes, enhancing precision and efficiency.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
