12V Vacuum Pump -70kPa Low Noise 3–6L Mini Diaphragm Air Pump BD-03VB BODENFLO

Designed for compact suction and air sampling applications, the BD-03VB Series combines a 12V brushless motor, 3–6 L/min airflow, and up to –70 kPa vacuum performance in a compact mini diaphragm air pump platform. Three versions are available with different flow, current, and vacuum levels while sharing the same installation dimensions.

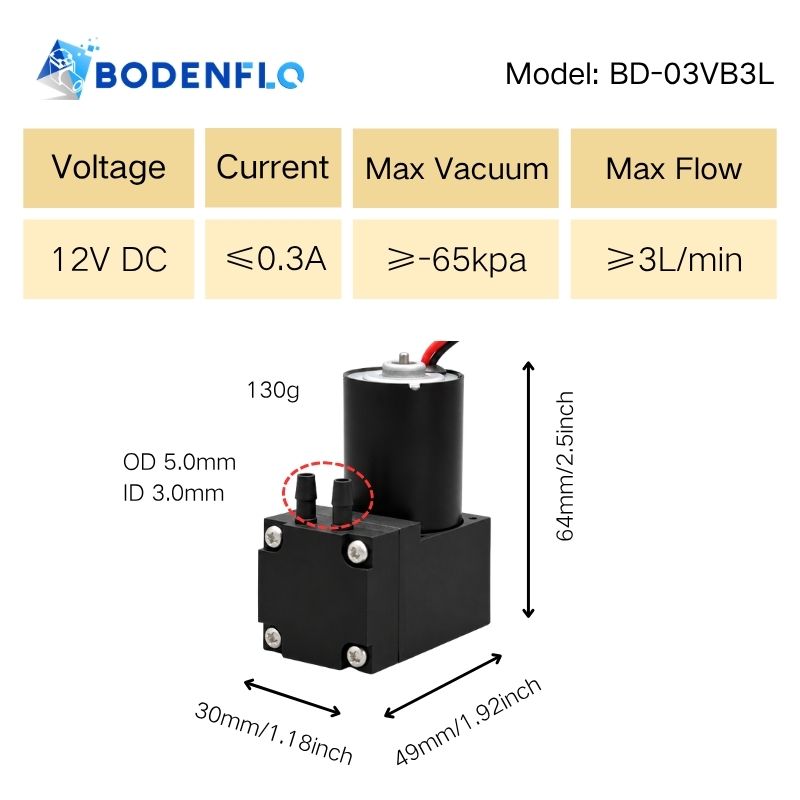

BD-03VB3L Technical Specifications:

• Name: 12V Vacuum Pump
• Model: BD-03VB3L
• Rated Voltage: 12V DC
• Current: ≤0.3 A
• Max Vacuum: ≥–65 kPa (–0.065 MPa / –9.43 psi)
• Max Flow: ≥3 L/min (3 LPM / 180 L/H)
• Noise: ★

BD-03VB4L Technical Specifications:

• Name: Mini Diaphragm Air Pump
• Model: BD-03VB4L
• Rated Voltage: 12V DC
• Current: ≤0.4 A
• Max Vacuum: ≥–70 kPa (–0.07 MPa / –10.15 psi)
• Max Flow: ≥4 L/min (4 LPM / 240 L/H)
• Noise: ★★

BD-03VB6L Technical Specifications:

• Name: Negative Pressure Vacuum Pump
• Model: BD-03VB6L
• Rated Voltage: 12V DC
• Current: ≤0.6 A
• Max Vacuum: ≥–70 kPa (–0.07 MPa / –10.15 psi)
• Max Flow: ≥6 L/min (6 LPM / 360 L/H)
• Noise: ★★★

General Specifications

• Motor Type: DC Brushless Motor
• Pump Head: Nlyon
• Valve/Diaphragm Material: EPDM

• Life Time: 3000-5000 Hours
• Noise: ≤58-65dB

• Working Mode: Intermittent
• Dimension: 64 × 49 × 30 mm (2.52 × 1.93 × 1.18 inch)
• Weight: 130g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%


Key Features of Mini Diaphragm Air Pump:

• Brushless DC Motor: Provides reliable operation with reduced motor wear and a service life of 5000 hours.
• Strong Vacuum Performance: Delivers up to –70 kPa vacuum for compact suction and negative-pressure applications.
• 3–6 L/min Airflow: Available in 3 L/min, 4 L/min, and 6 L/min versions for different suction and airflow requirements.

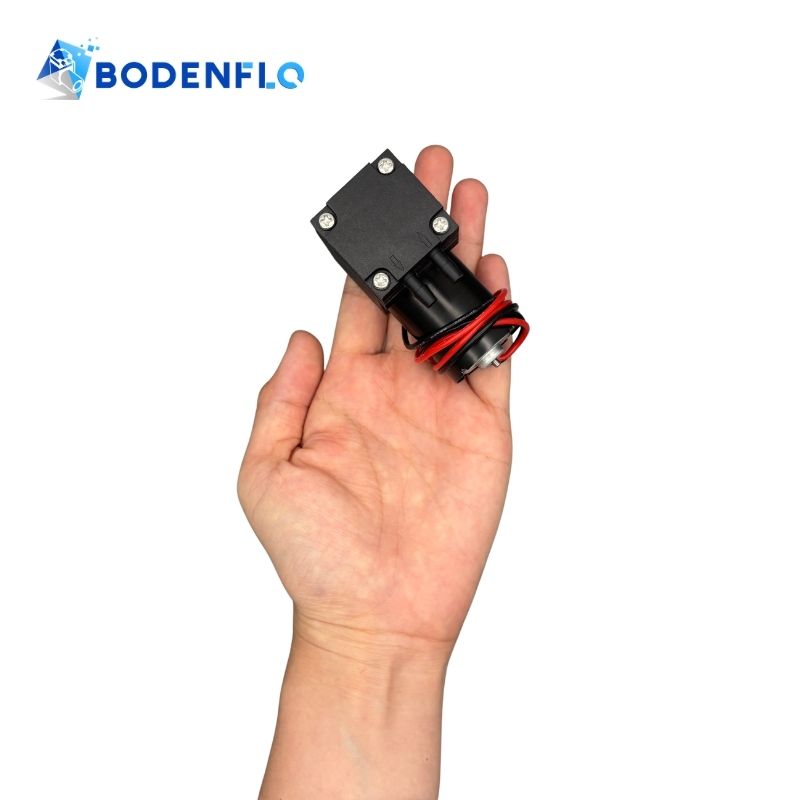

• Compact Size: The 64 × 49 × 30 mm pump body is suitable for equipment with limited installation space.

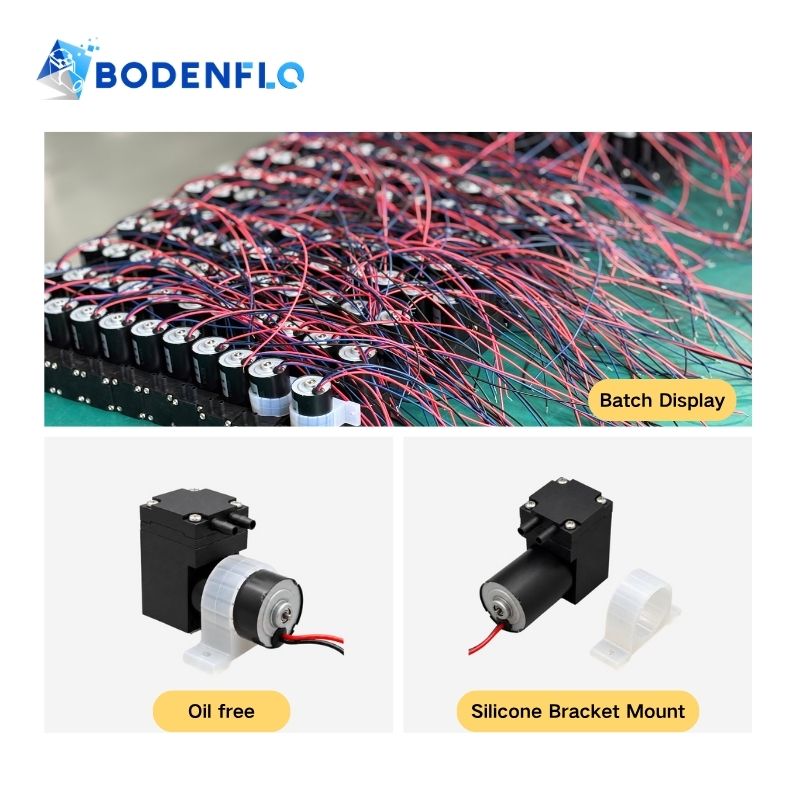

• Oil-Free Operation: The diaphragm pump structure provides clean air transfer without lubricating oil in the airflow path.
• Low Vibration: Compact diaphragm construction supports stable operation in small devices and instruments.

Common Applications:

• Vacuum Suction Equipment: Provides negative pressure for compact suction and vacuum systems.
• Air Sampling Equipment: Supports continuous air intake and sample transfer in compact devices.
• Negative Pressure Systems: Suitable for equipment requiring stable vacuum for suction, holding, or air extraction.
• Testing & Measuring Devices: Supplies vacuum and airflow for instruments and measurement equipment.
• Portable Equipment: The 12V DC supply, compact dimensions, and low weight support integration into portable devices.

Product Showcase Video

Video link: BD-03VB Brushless Air Pump Youtube video

Package & Shipping

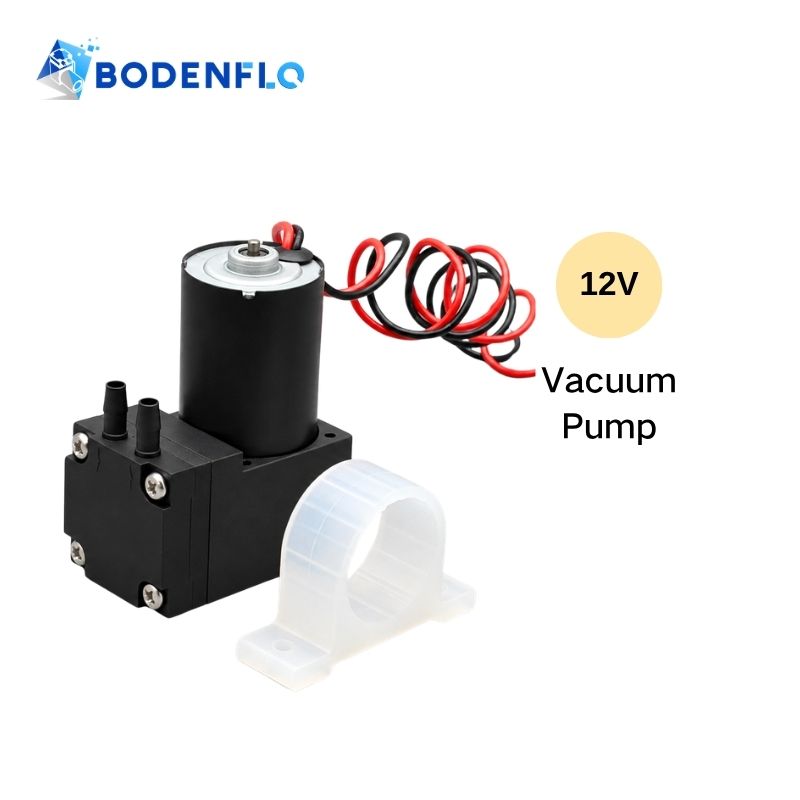

• Package Includes: 1 × Micro Diaphragm Pump + 1 × Silicone Mounting Bracket
• Lead Time: Typically 3–5 working days for standard orders.
• Shipping: DHL or FedEx express shipping available.
