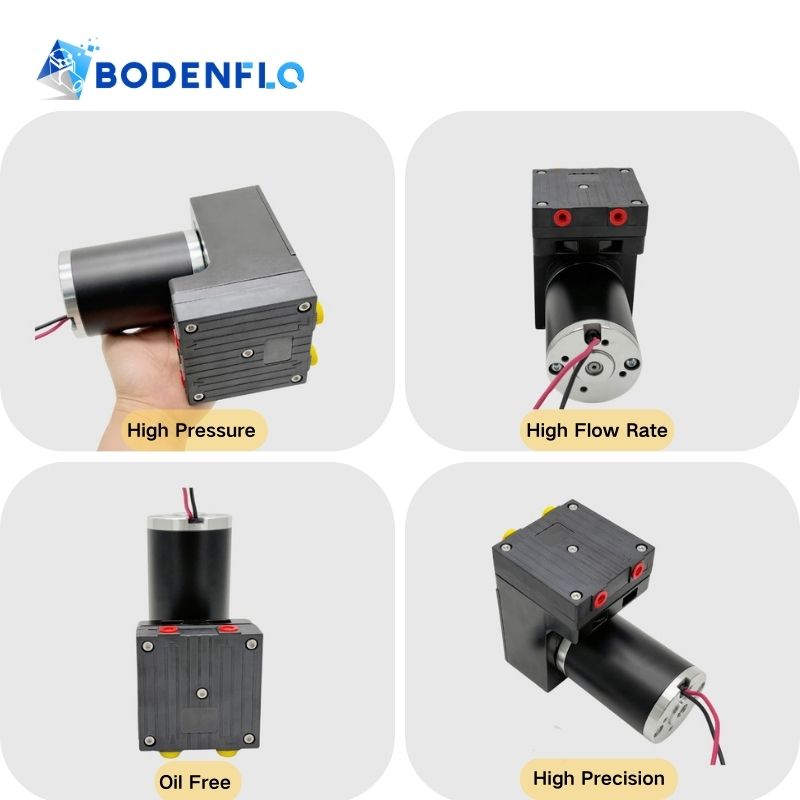

12V Vacuum Pump 40L 1BAR -85KPA Suction Compressor for Automation Grippers BD-05T1040L

The BD-05T1040L is a high-performance 12V Micro Suction Air Pump, designed for precision and reliability in automation, robotics, and handling systems. It features a brushless motor for extended durability and oil-free operation, ensuring clean and efficient vacuum performance. With its compact design and powerful suction capabilities, this pump is an ideal solution for a range of industries requiring high-efficiency, low-maintenance systems, such as grippers, clamps, and vacuum-based lifting systems.

BD-05T1040L 12V Technical Specifications:

• Name: 12V Vacuum Pump
• Model: BD-05T1040L 12V
• Rated Voltage: 12V DC
• Power: 50W
• Max Pressure: ≥1bar ( 100kPa/ 0.1MPa/ 14.5037psi)
• Max Vacuum: ≥-85kPa (-637mmHg / 0.085 MPa)
• Max Flow: ≥ 40L/min ( 40LPM / 2400L/H)
• Noise:★

General Specifications

• Motor Type: High-end Brush Motor
• Pump Head: PPS
• Diaphragm Material: EPDM
• Pump Body: Aluminium alloy
• Life time: 8000 Hours
• Noise: ≤70dB (with silencer can be reduce 1-3dB)
• Dimension: 151*120*83mm
• Weight: 1.87KG(approx.)
• Environment temperature range: -10~45℃
• Medium temperature range: -10~45℃


Key Features of 12V Vacuum Pump:

• Oil-Free: Operates without oil, ensuring clean suction and reducing contamination risk.
• Long Lifespan: Offers up to 8,000 hours of operation, minimizing replacement and maintenance needs.
• High Suction Power: Delivers powerful suction for secure lifting and handling of delicate materials.
• Brushless Motor: Ensures quieter, more efficient performance with a longer lifespan compared to traditional motors.
• Low Power Consumption: Designed for energy efficiency, reducing operating costs in continuous-use applications.

Common Applications:

• Lifters Gripping Systems: Used in vacuum lifting equipment to secure fragile or bulky items, such as in the packaging of large glass panes, ensuring safe and easy handling.
• Robotic Arms in Automation: Integral to robotic arms, this pump provides powerful suction for handling and positioning components in automated assembly lines, such as in the automotive industry.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
