24V Air Pump 2–3bar Oil-Free 3–6LPM DC Mini Diaphragm Air Pump BD-03AB BODENFLO

Designed for compact air pressure and transfer applications, the BD-03AB Series combines a 24V brushless motor, 3–6 L/min airflow, and 2–3 bar pressure performance in a compact diaphragm pump platform. Three versions are available with different flow, current, and pressure levels while sharing the same installation dimensions.

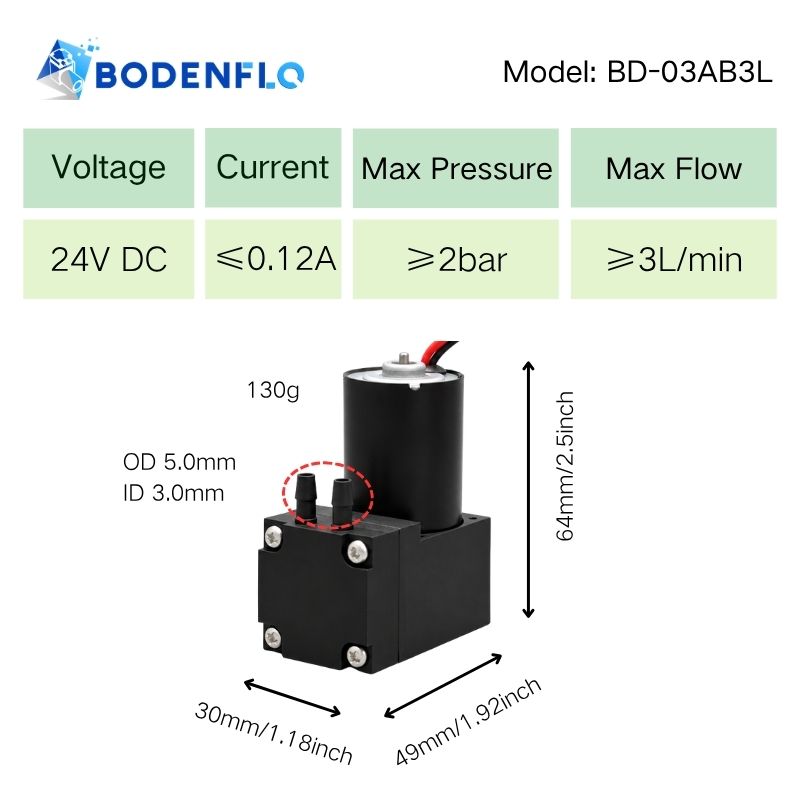

BD-03AB3L Technical Specifications:

• Name: 24V Air Pump
• Model: BD-03AB3L
• Rated Voltage: 24V DC
• Current: ≤0.12 A
• Max Pressure: ≥2 bar (200 kPa / 0.20 MPa)
• Max Flow: ≥3 L/min (3 LPM / 180 L/H)
• Noise: ★

BD-03AB4L Technical Specifications:

• Name: DC Mini Diaphragm Air Pump
• Model: BD-03AB4L
• Rated Voltage: 24V DC
• Current: ≤0.2 A
• Max Pressure: ≥2.5 bar (250 kPa / 0.25 MPa)
• Max Flow: ≥4 L/min (4 LPM / 240 L/H)
• Noise: ★★

BD-03AB6L Technical Specifications:

• Name: Micro Membrane Pump
• Model: BD-03AB6L
• Rated Voltage: 24V DC
• Current: ≤0.3 A
• Max Pressure: ≥3 bar (300 kPa / 0.30 MPa)
• Max Flow: ≥6 L/min (6 LPM / 360 L/H)
• Noise: ★★★

General Specifications

• Motor Type: DC Brushless Motor
• Pump Head: Nlyon
• Valve/Diaphragm Material: EPDM

• Life Time: 3000-5000 Hours
• Noise: ≤58-65dB

• Working Mode: Intermittent
• Dimension: 64 × 49 × 30 mm (2.52 × 1.93 × 1.18 inch)
• Weight: 130g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%


Product Showcase Video

Video link: BD-03AB Brushless Air Pump Youtube video

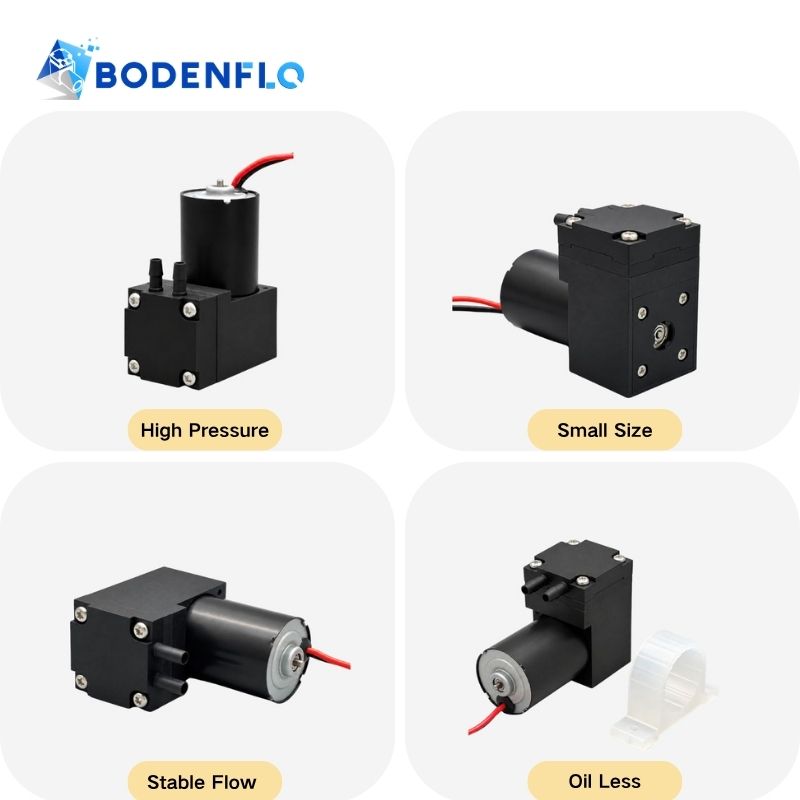

Key Features of DC Mini Diaphragm Air Pump:

• Longer Service Life: Brushless motor reduces wear and offers a service life of 3,000–5,000 hours.
• High Pressure: Up to 2–3 bar maximum pressure for compact pneumatic systems.
• Flexible Flow Options: Choose from 3, 4, or 6 L/min to match your application.

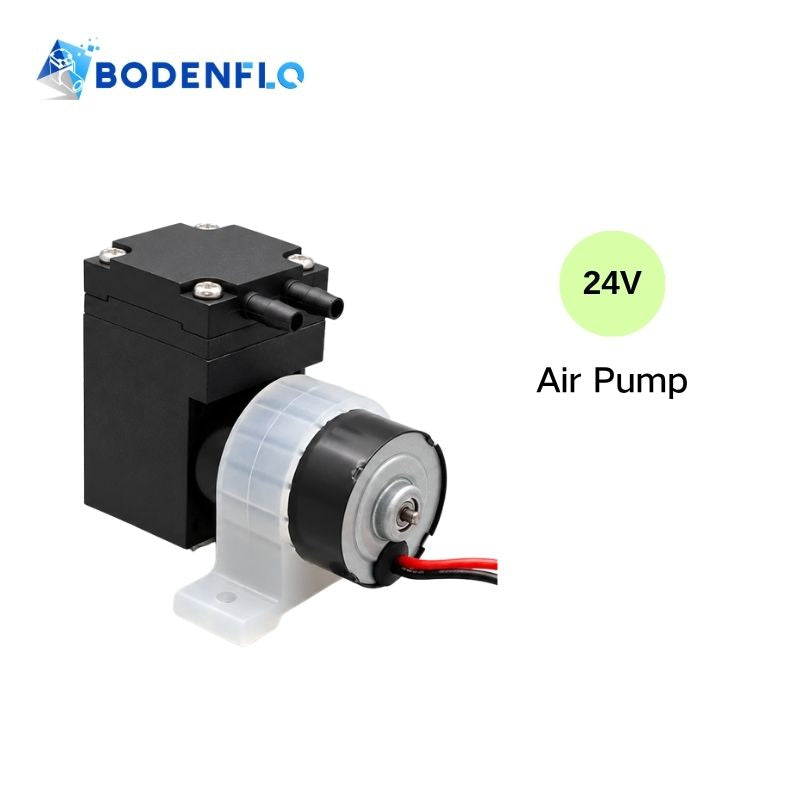

• Easy Installation: Includes a silicone bracket for flexible mounting positions.
• Reduced Vibration & Noise: Silicone mount helps absorb vibration and reduce transmitted noise.
• Oil-Free Air Delivery: No lubricating oil in the pumping chamber for a clean air path

Common Applications:

• Compact Pneumatic Equipment: Provides pressurized airflow for small pneumatic devices and systems.
• Air Transfer Equipment: Suitable for equipment requiring continuous or intermittent air delivery.
• Pressure Supply Systems: Provides 2–3 bar positive pressure for compact air pressure applications.
• Testing & Measuring Devices: Supplies airflow for instruments and compact testing equipment.

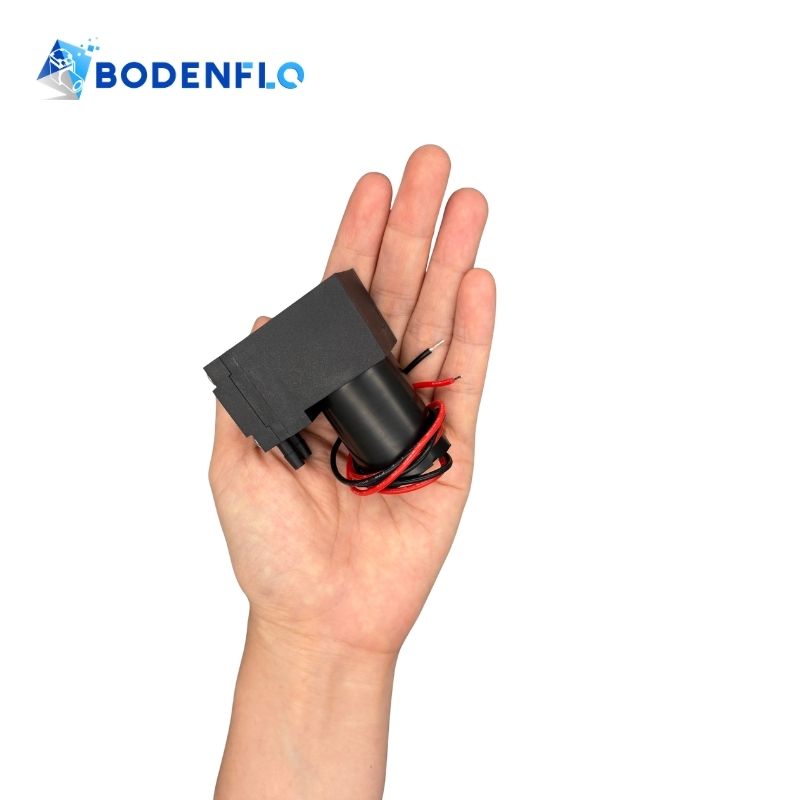

• Portable Equipment: The 24V DC supply and compact dimensions support integration into space-limited devices.

Package & Shipping

• Package Includes: 1 × Micro Diaphragm Pump + 1 × Silicone Mounting Bracket
• Lead Time: Typically 3–5 working days for standard orders.
• Shipping: DHL or FedEx express shipping available.
