24V Air Suction Pump High Suction for Robotic Arms BD-079V-M -85KPA 40L BODENFLO

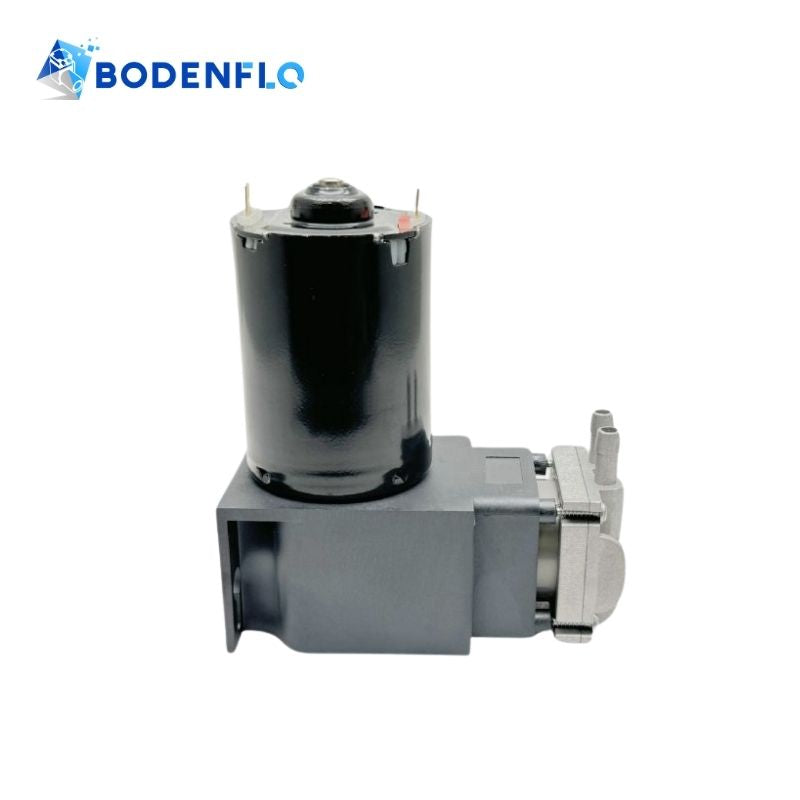

The BD-079V-M Air Suction Pump is a high-performance, durable piston pump designed for a variety of vacuum applications. Featuring a metal head and powered by a 24V DC brush motor, this small piston pump offers superior efficiency and reliability. With a maximum vacuum of -85 kPa and a flow rate of up to 40 L/min, it is ideal for industries requiring strong air suction and reliable performance. Whether used in medical equipment, packaging, or industrial automation, this pump delivers consistent results in demanding environments.

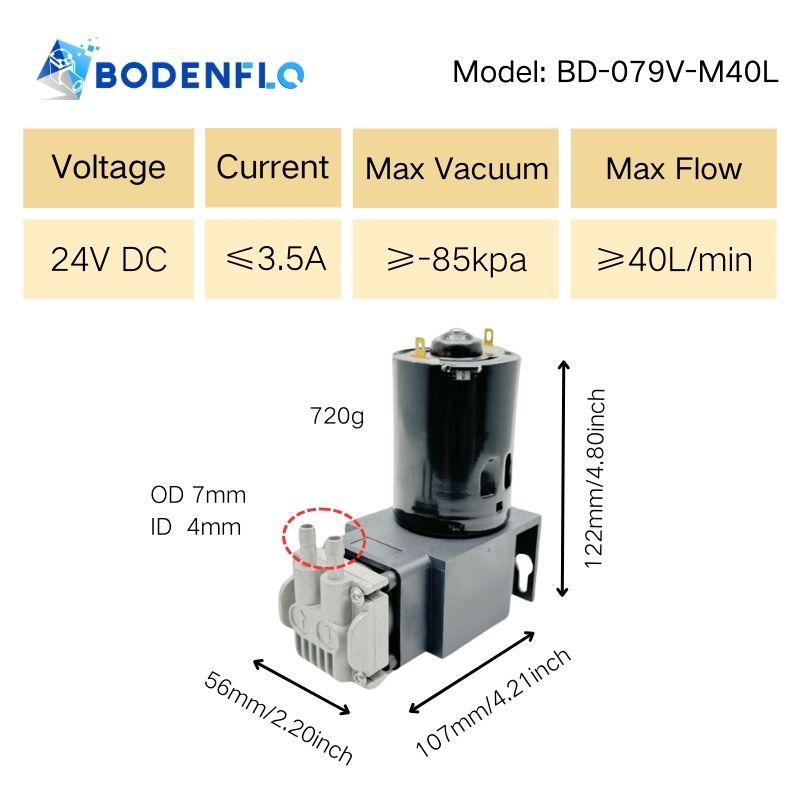

BD-079V-M40L Technical Specifications:

• Name: Air Suction Pump
• Model: BD-079V-M40L
• Rated Voltage: 24V DC
• Current : ≤3.5A
• Max Vacuum: >-85 kPa ( -637mmHg /0.085 MPa )
• Max Flow: >40 L/min (40 LPM / 2400 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Life time: 1000 Hours
• Noise: ≤75dB(with silencer can be reduce 1-3dB)
• Dimension: 122x107x56mm
• Weight: 720g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Air Suction Pump:

• Compact Design: Easily fits into space-constrained applications.
• High Efficiency: Delivers powerful suction with minimal energy consumption.
• Durability: Built with high-quality materials for long-lasting performance.
• Strong Vacuum Performance: Achieves a deep vacuum for effective suction in various processes.
• Reliable Pressure Control: Maintains stable performance even under varying workloads.

Common Applications:

• Industrial Automation: Powers pneumatic systems for material handling and robotic arms in manufacturing.
• Medical Equipment: Used in portable suction devices for patient care in hospitals or home healthcare settings.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
