24V Micro Air Pressure Pump 6bar 17L 25L 30L High Flow Brush Pumps BD-07A BODENFLO
24V Micro Air Pressure Pump 6bar 17L 25L 30L High Flow Brush Pumps BD-07A BODENFLO
Discover the BD-07A, a selection of high-performance micro pressure pumps designed for applications that demand precision and durability. Equipped with DC brush motors and EPDM valve, these pumps deliver consistent pressure and high flow rates with low noise levels, making them ideal for home appliances, portable air compressors. With robust construction and an operational lifespan of up to 1,000 hours, the BD-07A Series is a trusted choice for stable performance across diverse industries. Choose BODENFLO to meet your small-scale, high-efficiency pumping needs.
BD-07A17L Technical Specifications:
- Name: Micro Pressure Pump
- Model: BD-07A17L
- Rated Voltage: 24V DC
- Current : ≤1A
- Max Pressure: >500 kPa ( 5 bar/ 0.5 MPa / 72.5188psi)
- Max Flow: >17 L/min (17 LPM / 1020 L/H)
- Noise:★

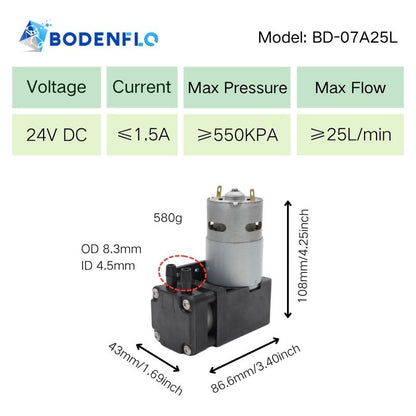

BD-07A25L Technical Specifications:
- Name: DC Air Pump
- Model: BD-07A25L
- Rated Voltage: 24V DC
- Current : ≤1.5A
- Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.7707psi)
- Max Flow: >25 L/min (25 LPM / 1500 L/H)
- Noise:★★

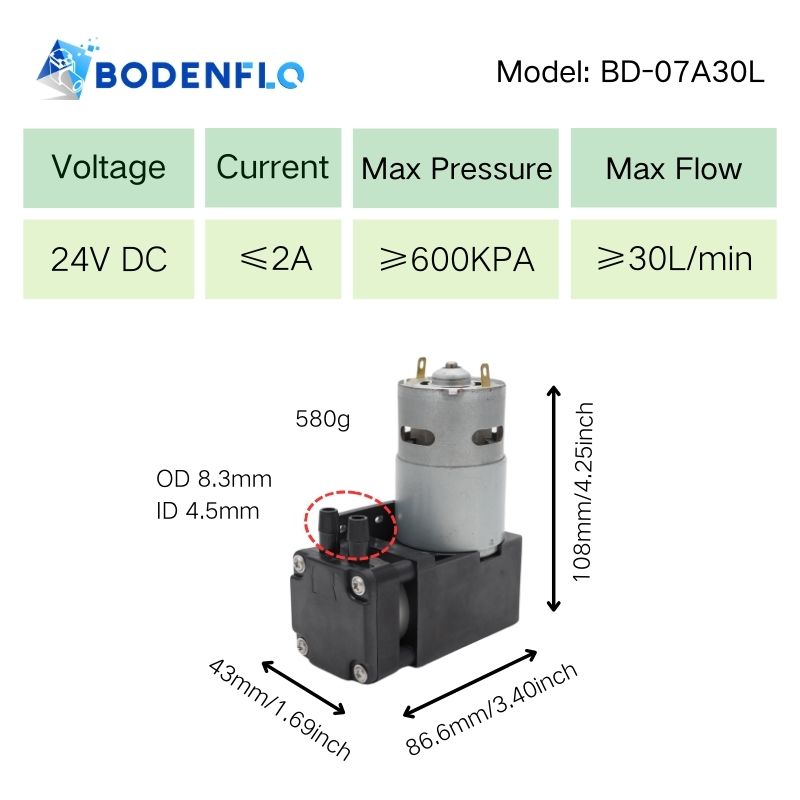

BD-07A30L Technical Specifications:
- Name: Micro Air Pump
- Model: BD-07A30L
- Rated Voltage: 24V DC
- Current : ≤2A
- Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87.0226psi)
- Max Flow: >30 L/min (30 LPM / 1800 L/H)
- Noise:★★★
General Specifications
- Motor Type: DC Brush Motor
- Diaphragm Material: EPDM
- Life time: 800-1000 Hours
- Noise: ≤65-68dB(with silencer can be reduce 1-3dB)
- Dimension: 108x86.6x43mm
- Weight: 580g(approx.)
- Environment temperature range: 0~40℃
- Ambient humidity range: <80%

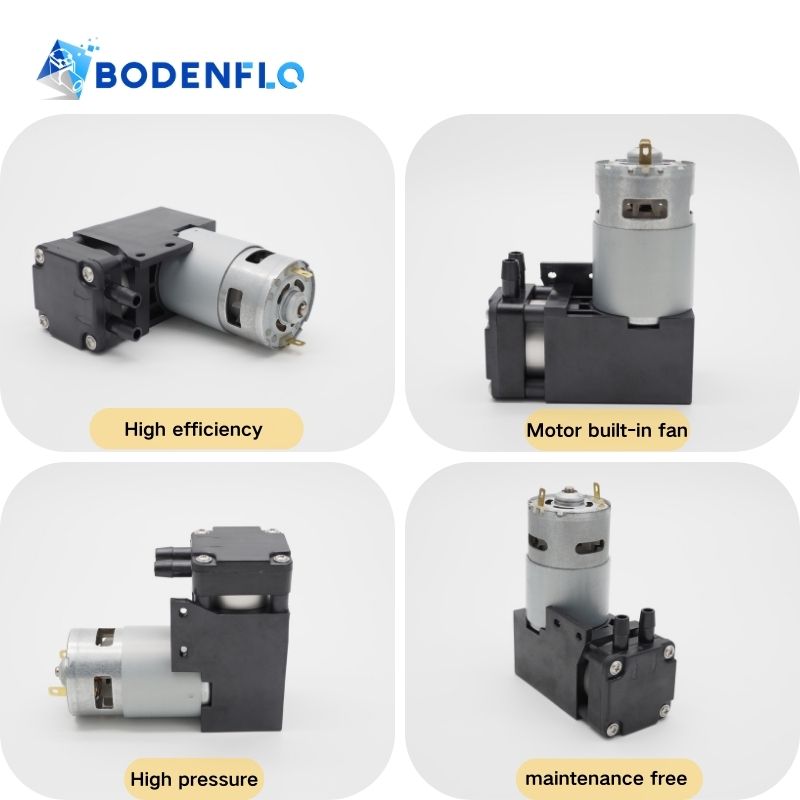

Key Features of Micro Pressure Pump:
- Compact Size: Easily integrates into devices where space is limited.
-
Energy-Efficient: High-efficiency design reduces energy consumption and carbon footprint.
- Stable Performance: Delivers consistent pressure and flow rates without fluctuations.
- Easy Maintenance: Designed for minimal upkeep with accessible components.
Common Applications:
- Air Pressure Massage Devices: The BD-07A is engineered to drive air pressure massage systems, offering therapeutic benefits such as enhanced circulation and muscle relaxation with consistent air pressure delivery.
- Tire Inflation: Ideal for rapid tire inflation, the BD-07A delivers high-pressure air with precision, essential for automotive servicing and emergency roadside assistance.
- Gas Cleaning Equipment: The BD-07A high-pressure air pump efficiently powers gas cleaning systems, effectively removing contaminants to ensure clean and safe air environments.
Manufacturer Information:
- Brand: BODENFLO
- Place of Origin: China
At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.
For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
