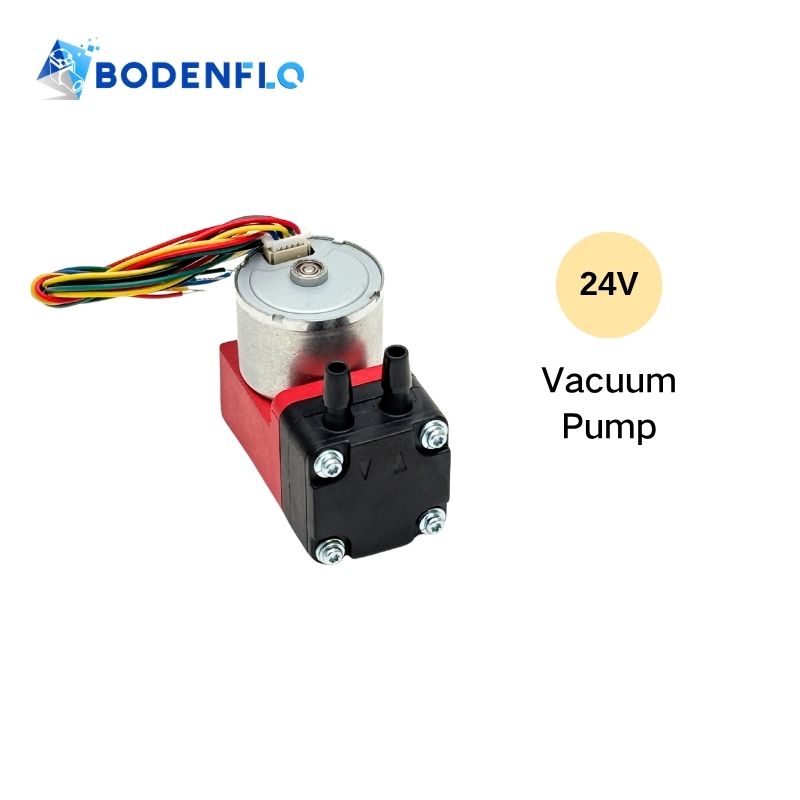

24V Brushless Diaphragm Pump Compact & Quiet For Medical BD-05T033B 3L BODENFLO

The BD-05T033B 24V Brushless Diaphragm Pump from BODENFLO is a compact and efficient solution for applications requiring stable vacuum and airflow. Featuring a durable brushless motor, it offers low noise, long service life, and oil-free performance through its diaphragm structure. This micro vacuum pump is ideal for integration into medical devices, industrial automation systems, and portable analytical instruments, providing quiet, reliable, and maintenance-free operation in space-constrained environments.

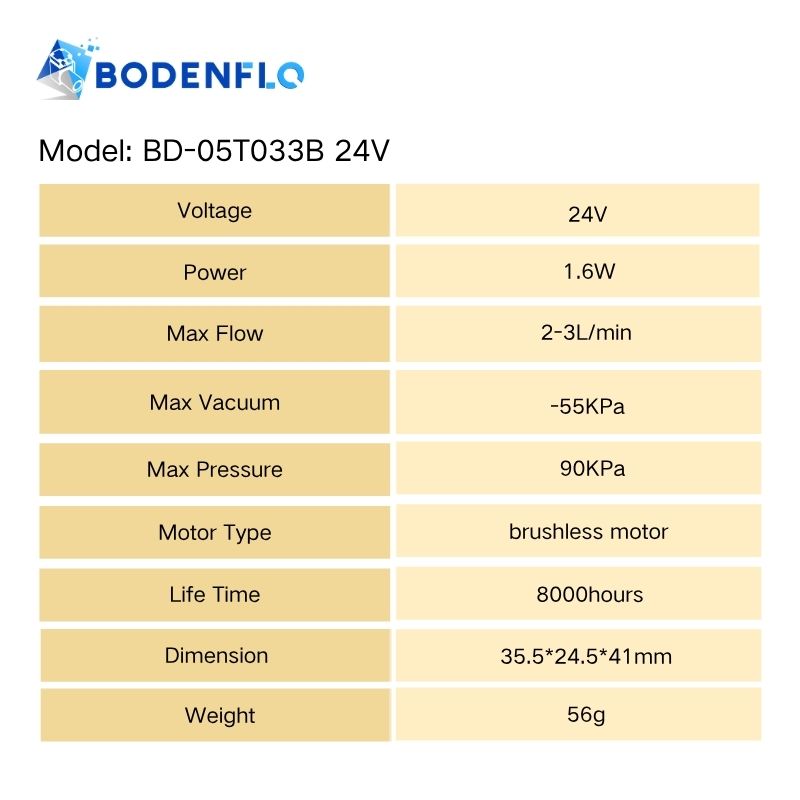

BD-05T033B 24V Technical Specifications:

• Name: Brushless Diapharagm pump
• Model: BD-05T033B 24V
• Rated Voltage: 24V DC
• Power : 1.6W
• Max Pressure: >90 kPa ( 0.9 bar/ 0.09 MPa / 13.0533 psi)
• Max Vacuum: >-55 kPa ( -412mmHg /0.055 MPa )
• Max Flow: > 2-3L/min ( 2-3LPM / 120-180L/H)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)

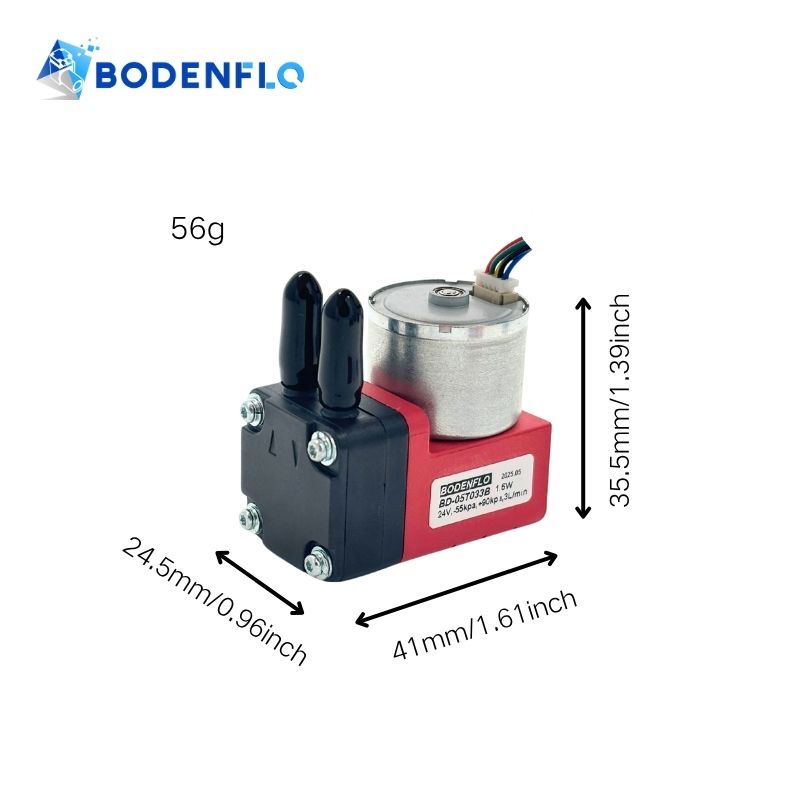

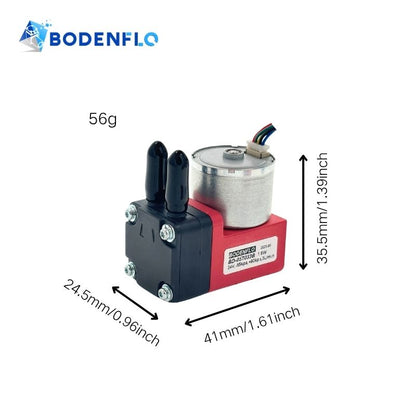

• Dimension: 35.5*24.5*41mm
• Weight: 56G(approx.)
• Storage temperature: -40℃~60℃
• Medium environment: -10℃~45℃

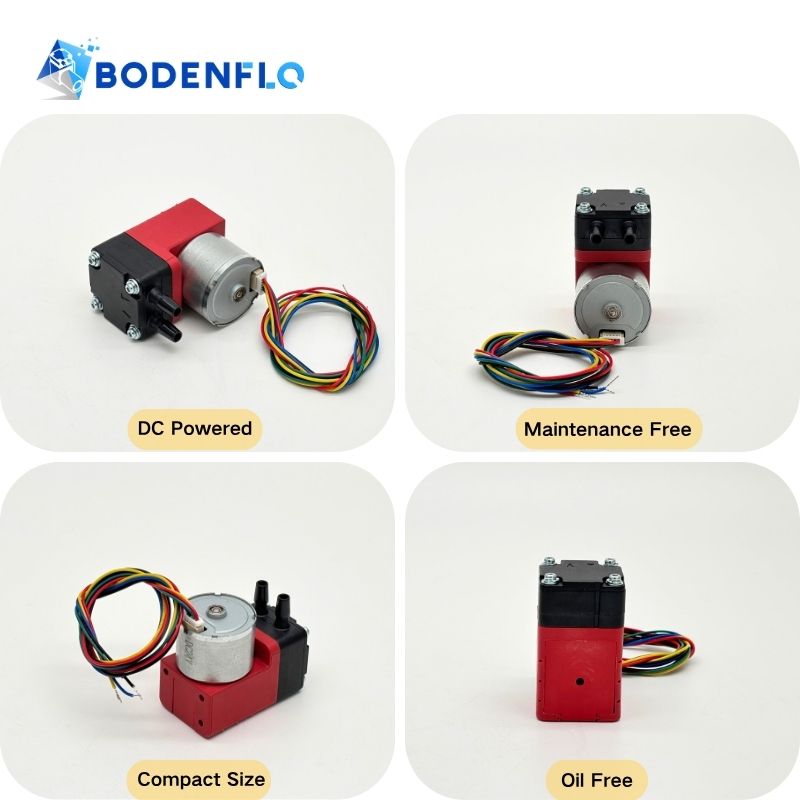

Key Features of Air Vacuum Pump:

• Fast Response Time: Reaches target vacuum levels quickly, ideal for time-sensitive processes in automation and diagnostics.
• Oil-Free Operation: Dry-running diaphragm design ensures no risk of oil contamination—critical for medical, lab, and sensor use.
• Continuous Duty Capable: Designed for 24/7 applications without overheating or drop in performance.
• Easy to Mount and Maintain: Lightweight structure and standardized fittings simplify installation and maintenance.
• Reliable Operation: Performs consistently across a wide temperature and humidity range, suitable for mobile and field equipment.

Common Applications:

• CPAP and Breathing Aids: Helps regulate airflow and pressure in compact breathing support systems for home or clinical use.
• Laboratory Sampling Kits: Transfers air or gas samples into analysis chambers for environmental or chemical testing.
• Gas Chromatography Instruments: Controls vacuum flow through columns to separate and analyze chemical compounds precisely.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
