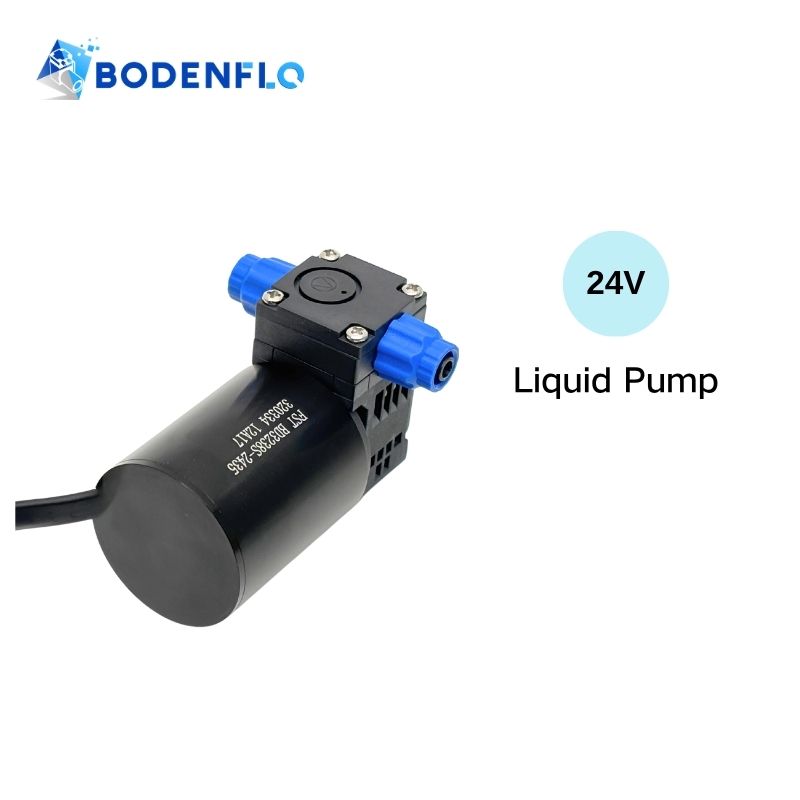

24V Brushless Liquid Pump 280mL Micro Fluid Pump for Precision Liquid Transfer | BODENFLO BD-05T60WB

Upgrade your liquid handling system with the BD-05T60WB 24V brushless liquid pump, developed for precise fluid control, ultra-stable flow, and extended service life. Featuring a high-efficiency diaphragm liquid pump structure, this compact micro fluid pump is ideal for OEM equipment requiring low pulsation, low noise, and reliable long-term performance.

Designed for demanding industrial and medical applications, the 24V configuration offers enhanced electrical compatibility for automation systems, laboratory instruments, and continuous-duty fluid transfer modules.

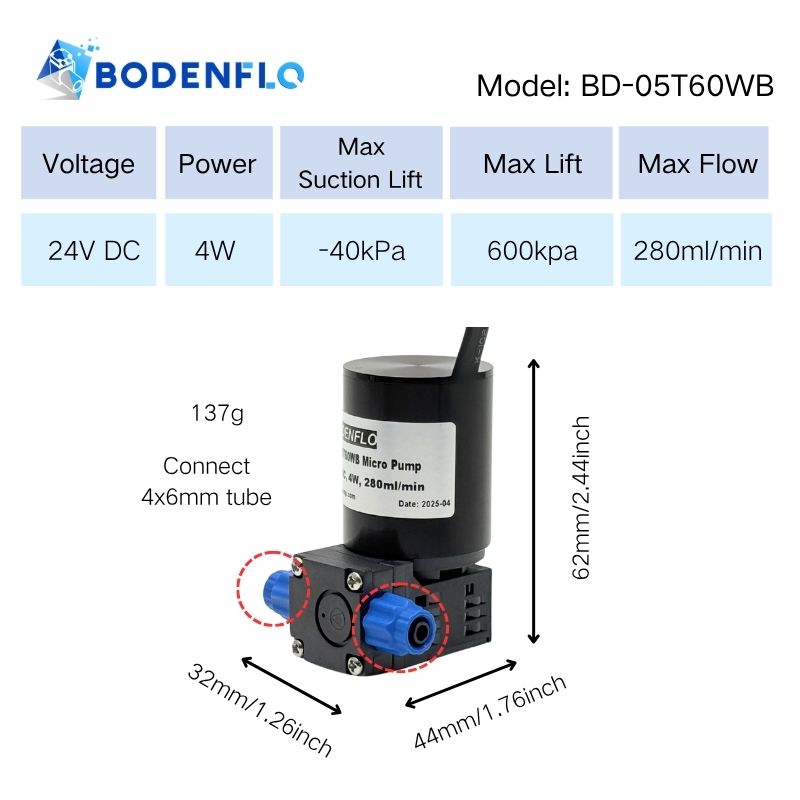

BD-05T60WB Technical Specifications

• Name: Brushless Liquid Pump
• Model: BD-05T60WB
• Voltage Range: 24V DC
• Max Power: 4W
• Maximum Lift: 60 mWg (6 bar / 0.6 MPa /87 psi) (intermittent operation)
• Maximum Suction Lift: 4 mWg (-40 kPa /-0.04 MPa)
• Maximum Flow: 280 mL/min (0.28 LPM/16.8 L/H)(Liquid flow, electronic flow meter)

General Specifications

• Medium: Water / Liquid
• Motor Type: Brushless Motor
• Waterproof Level: IP40
• Pump Head Medium: PPS
• Valve: EPDM
• Diaphragm Medium: EPDM
• Life Time: 8000 hours
• Noise: ≤60 dB
• Dimensions: 62 × 32 × 44.6 mm (2.44 × 1.26 × 1.76 )
• Weight: 134 g(approx.)
• Storage Temperature: –40 ℃ ~ 60 ℃
• Operating Temperature: –20 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05T60WB 24V Brushless Liquid Pump Youtube video

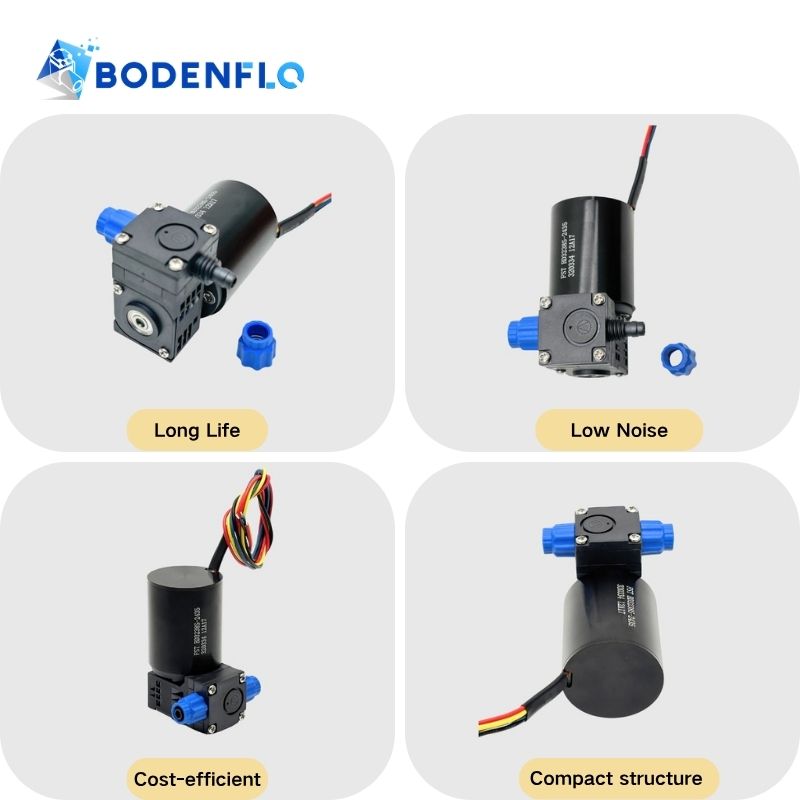

Key Features of 24V Brushless Motor

• 24V Brushless Motor for Industrial Stability
  Provides stable electrical performance for PLC systems, industrial controllers, and OEM equipment while eliminating brush wear for longer service life.
• High-Precision Micro Fluid Pump Control
  Designed for accurate low-flow liquid transfer, repeatable dosing, and precise fluid control.
• Reliable Diaphragm Liquid Pump Design
  Oil-free structure ensures clean liquid handling, strong sealing, and reduced leakage risk.
• Low Pulsation Flow Output
  Optimized chamber design minimizes pulsation for smoother delivery in sensitive applications.
• Compact Structure for OEM Integration
  Miniature size allows easy integration into portable devices and compact fluid modules.
• Low Noise & Long Service Life
  ≤60 dB noise level with up to 8000 hours lifespan for continuous and intermittent use.

Applications

• Inkjet Printing Systems: Provides smooth and stable ink transfer to maintain consistent droplet formation and printing accuracy.

• Liquid Sampling Systems: Ideal for analytical equipment requiring precise and repeatable liquid extraction.

• IVD & Diagnostic Equipment: The clean, oil-free diaphragm liquid pump design reduces contamination risks in medical fluid handling systems.

• Waste Liquid Transfer: Suitable for controlled discharge of waste liquids in laboratory, chemical, and medical applications.

• Cooling & Circulation Modules: Supports compact closed-loop liquid circulation in thermal management systems.

Manufacturer Information

• Brand: BODENFLO
• Place of Origin: China

BODENFLO is a professional manufacturer of advanced 24V brushless liquid pumps, specializing in micro fluid pumps and diaphragm liquid pumps for OEM and industrial markets worldwide.

With over 15 years of experience in pump engineering and customization, we provide highly reliable solutions for precision fluid transfer applications across medical, industrial automation, laboratory, and printing sectors.

Our products comply with ISO9001, CE, RoHS, REACH, and FCC standards to ensure global quality and compliance.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
