24V Compressor Vacuum Pump -85kpa with 70L High Flow BD-08VB-D BODENFLO

The BD-08VB-D80L 24V vacuum pump is designed for demanding applications that require high efficiency and reliability. Built with a DC brushless motor, this durable pump offers a max flow rate of 70 L/min and a deep vacuum level of -85 kPa. Made with high-quality all aluminum and high temperature and pressure resistant rubber material, it ensures longevity with a lifespan of 5000 hours. Ideal for a variety of medical, industrial uses, this vacuum pump is built for precision.

BD-08VB-D80L Technical Specifications:

• Name: 24V Vacuum Pump
• Model: BD-08VB-D80L
• Rated Voltage: 24V DC
• Current : ≤4.5A
• Max Vacuum: >-85 kPa ( -637mmHg /0.085 MPa )
• Max Flow: >70 L/min (p.s: single head flow 35L/min x 2)

General Specifications

• Motor Type: DC Brushless Motor
• Rubber Material: high temperature and pressure resistant rubber
• Life time: 5000 Hours
• Noise: ≤75dB(with silencer can be reduce 1-3dB)
• Dimension: 131x106.5x64mm
• Weight:803g(approx.)
• Environment temperature range: -10~45℃
• Ambient humidity range: ＜80%

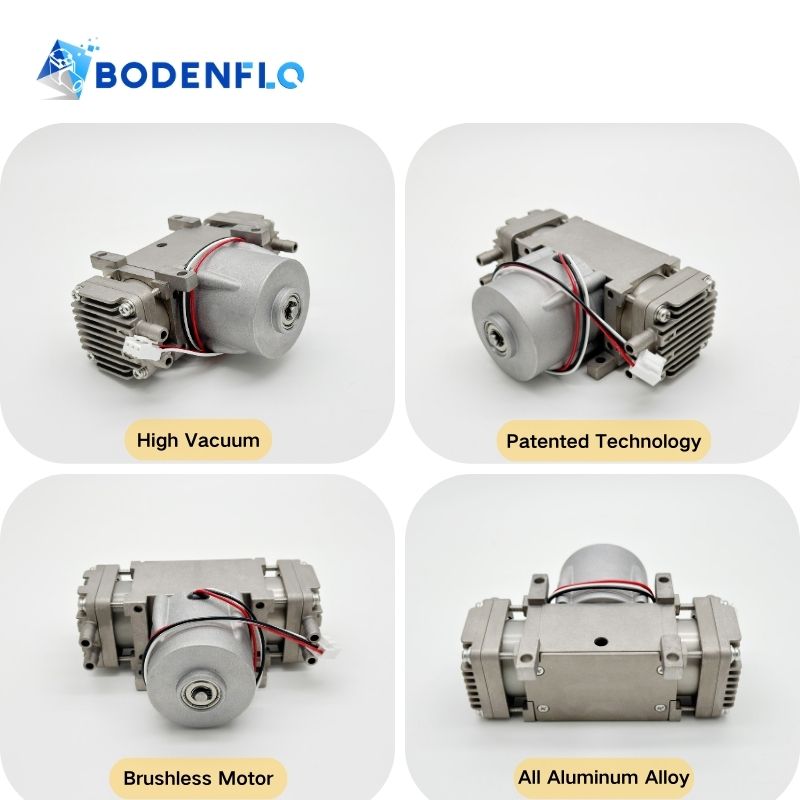

Key Features of Compressor Vacuum Pump:

• Patented Technology: crafted with an innovative design and high-quality materials, is recognized as the No. 1 leading high-flow, compact micro vacuum pump in China.
• Long Operational Lifespan: Designed for extended use with durable components, requiring less maintenance.
• Compact Design: Its small size makes it easy to integrate into tight spaces in various systems or machinery.
• Reliable Performance: Provides stable vacuum and flow, ensuring consistent operation over time.
• Lightweight: Easy to handle and install due to its light weight, suitable for mobile or portable applications.
• Versatile Application: Can be used in diverse industries including medical, laboratory, and industrial applications.

Common Applications:

• 3D Printers: Used to maintain consistent vacuum levels in resin-based 3D printing systems, improving print accuracy and quality.
• Automotive Brake Booster Systems: Provides necessary vacuum for the brake booster in vehicles, enhancing braking performance and safety.
• Outdoor Gas Detection: Plays a critical role in portable gas detection systems, maintaining the required vacuum level for detecting harmful gases in outdoor environments, especially in safety and environmental monitoring.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
