24V DC Piston Pump with High Flow for Beauty Atomization BD-079A-M 650KPA 45L BODENFLO

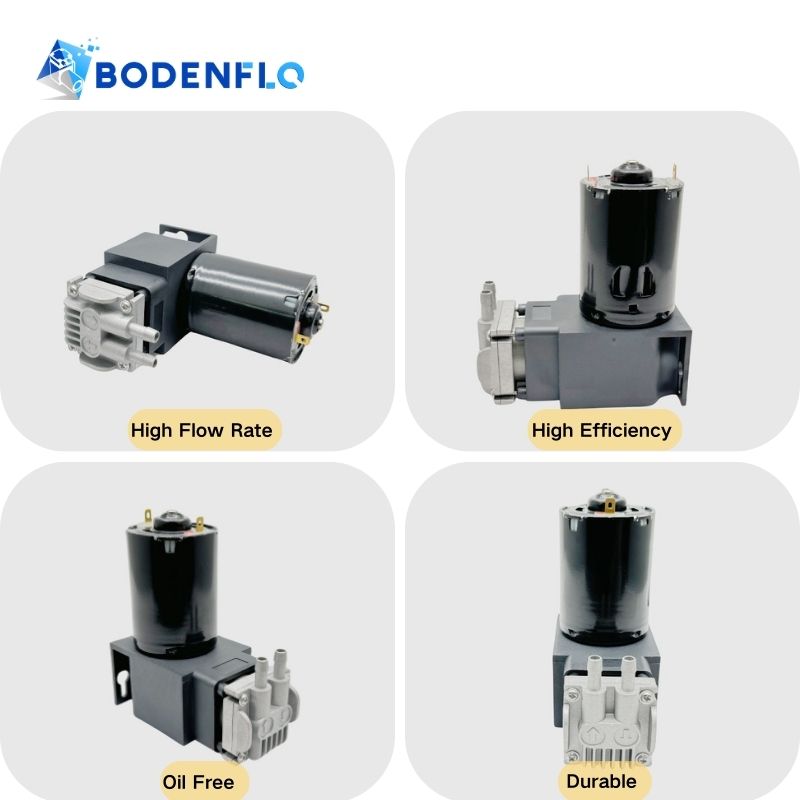

The BD-079A-M Small Air Compressor is a durable DC piston pump featuring a metal head and reliable 24V motor. Designed for high-pressure performance, it provides consistent airflow, making it ideal for beauty devices, pneumatic tools, and precision spraying systems. With a compact design and EPDM diaphragm, it ensures efficient, low-maintenance operation across various industries, delivering the reliability and performance needed for demanding applications.

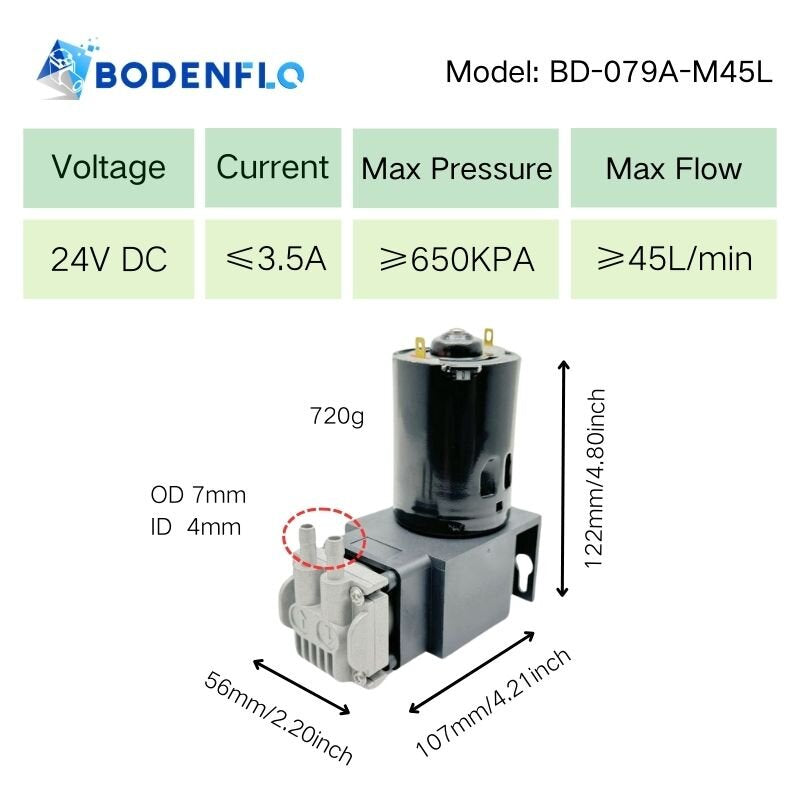

BD-079A-M45L Technical Specifications:

• Name: Small Air Compressor
• Model: BD-079A-M45L
• Rated Voltage: 24V DC
• Current : ≤3.5A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.2745psi)
• Max Flow: >45 L/min (45 LPM / 2700 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Life time: 1000 Hours
• Noise: ≤75dB(with silencer can be reduce 1-3dB)
• Dimension: 122x107x56mm
• Weight: 720g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Small Air Compressor:

• Low Maintenance: Designed for long service life with minimal upkeep.
• High Efficiency: Provides consistent air compression with minimal energy consumption.
• Compact Design: Saves space in applications requiring portable or integrated components.
• Reliable Performance: Built to withstand continuous operation under demanding conditions.
• Versatile Applications: Suitable for various industries, from healthcare to manufacturing.

Common Applications:

• High-Pressure Sprayers: Enables precise atomization for cleaning or coating tasks.
• Airbrush Systems: Supplies consistent airflow for fine-detail painting tasks.
• Beauty Atomization Devices: Provides delicate and controlled misting used in skincare and cosmetic treatments to apply products evenly and gently.


Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
