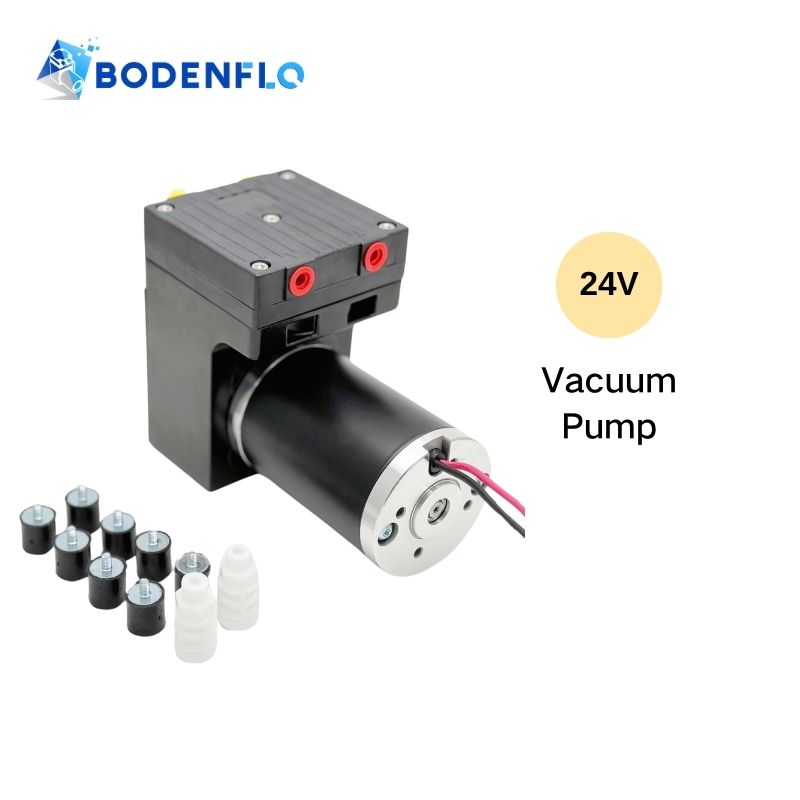

24V Vacuum Pump Longlife for Lifter Clamping Cranes BD-05T1040L -85KPA 40L BODENFLO

The BD-05T1040L 24V Vacuum Pump is designed for high-efficiency performance in compact applications. Powered by a robust brushless motor and engineered with a durable diaphragm, this pump ensures smooth operation and long-term reliability. Its low-noise and oil-free operation make it perfect for a variety of clamping systems,cranes applications, and precise handling tasks.

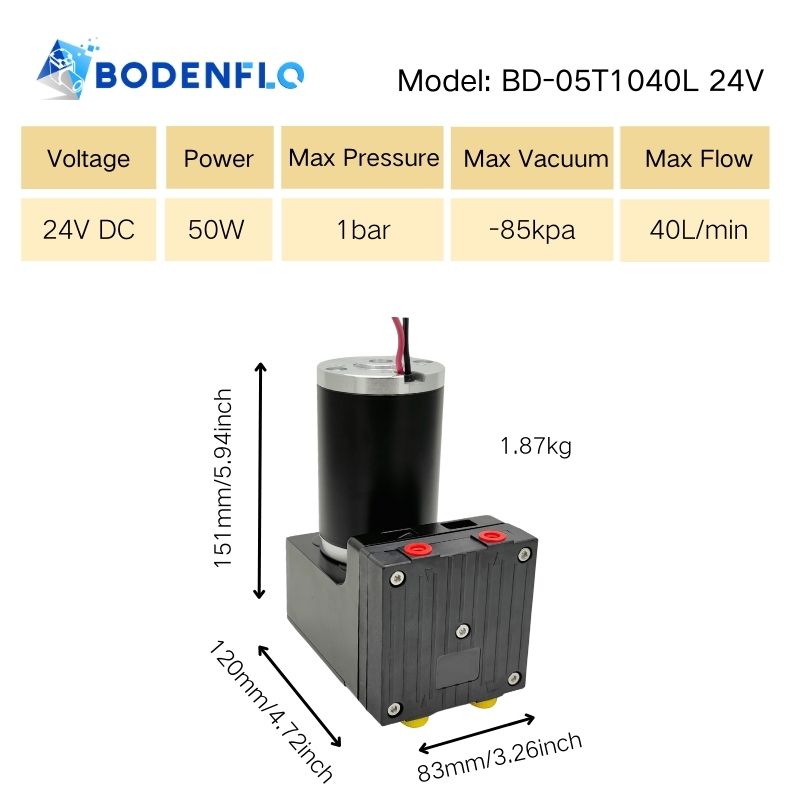

BD-05T1040L 24V Technical Specifications:

• Name: Vacuum Suction Pump 24V
• Model: BD-05T1040L 24V
• Rated Voltage: 24V DC
• Power: 50W
• Max Pressure: ≥1bar ( 100kPa/ 0.1MPa/ 14.5037psi)
• Max Vacuum: ≥-85kPa ( -637mmHg/ 0.085MPa )
• Max Flow: ≥40L/min ( 40LPM / 2400L/H)
• Noise:★

General Specifications

• Motor Type: High-end Brush Motor
• Pump Head: PPS
• Diaphragm Material: EPDM
• Pump Body: Aluminium alloy
• Life time: 8000 Hours
• Noise: ≤70dB (with silencer can be reduce 1-3dB)
• Dimension: 151*120*83mm
• Weight: 1.87KG(approx.)
• Environment temperature range: -10~45℃
• Medium temperature range: -10~45℃

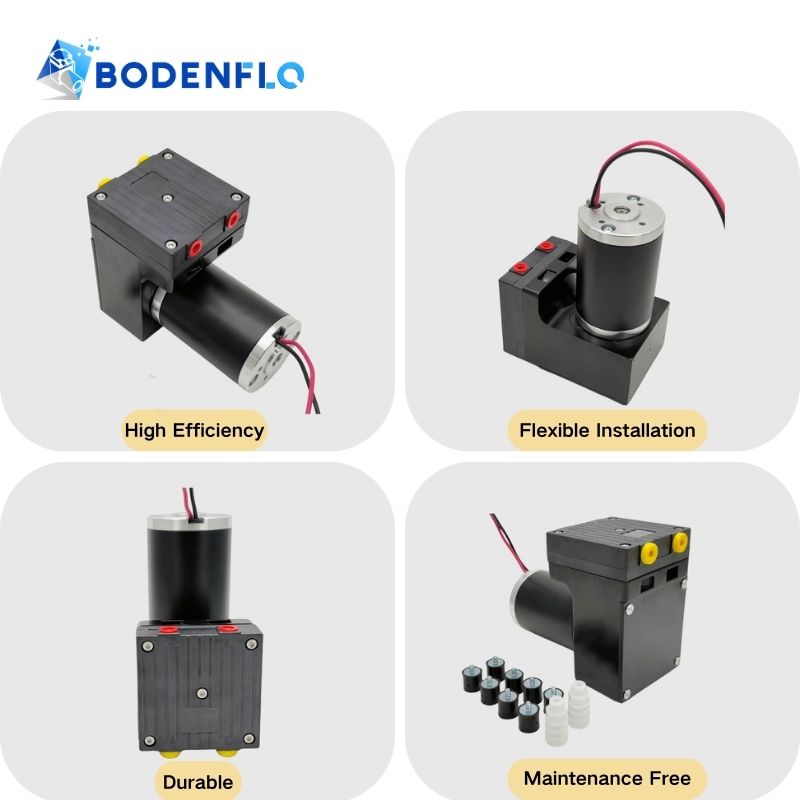

Key Features of 24V Vacuum Pump:

• Versatile: Suitable for various applications, including material handling and vacuum lifts.
• Easy Maintenance: Minimal moving parts reduce maintenance requirements, lowering long-term costs.
• Reliable Performance: Built to maintain consistent vacuum pressure, even under varying operational conditions.
• Oil-Free: Operates without oil, preventing contamination and ensuring cleaner suction, ideal for handling sensitive materials.
• Strong Suction Power: Delivers high vacuum pressure, ensuring efficient handling and lifting capabilities.

Common Applications:

• Clamping Systems: Powers vacuum clamps used in automated workstations to hold materials firmly in place during assembly, reducing human error and enhancing speed.
• Cranes and Hoists: Provides vacuum suction in cranes and hoists to lift large items, such as heavy machinery or construction materials, ensuring safer and more efficient handling.
• Pneumatic Equipment in Rehabilitation: Used in medical pneumatic devices, particularly in physical therapy equipment for limb recovery and rehabilitation, where controlled suction is crucial for effective treatment.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
