BODENFLO

24V Micro Air Compressor for Air Mattresses and Cushions BD-04AB 20L BODENFLO

24V Micro Air Compressor for Air Mattresses and Cushions BD-04AB 20L BODENFLO

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
BD-04AB

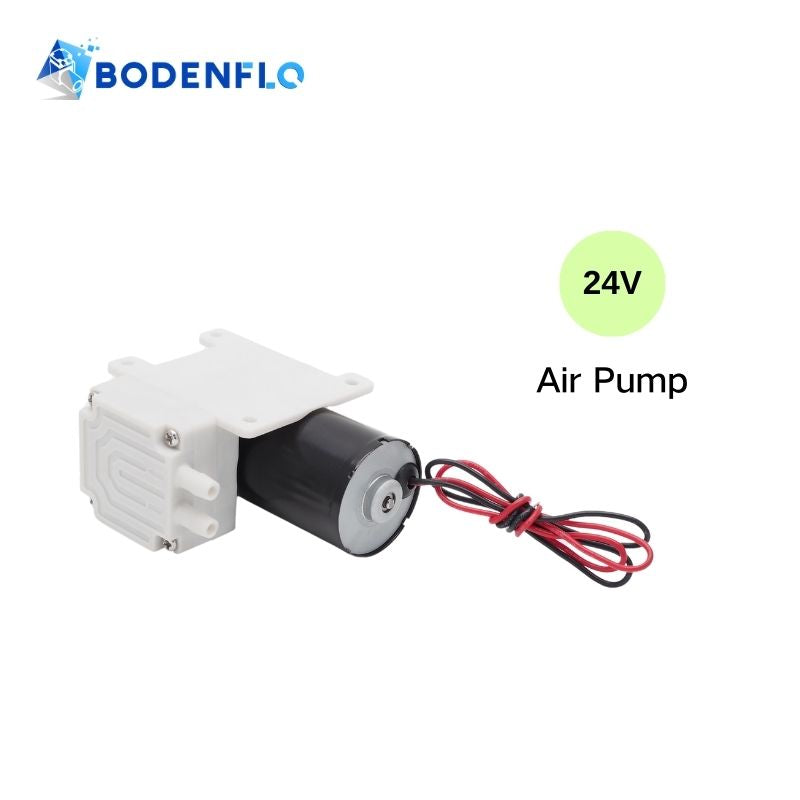

BD-04AB 24V features compact micro air compressors designed for powerful, efficient performance. With advanced brushless motor technology, these pumps deliver up to 3.5 bar pressure and 20 L/min flow rate while operating quietly. Ideal for air mattresses,cushions and smart  toilets applications, their space-saving design ensures easy integration into any setup.

BD-04AB11L Technical Specifications:

  • Name: Mini Gas Pump
  • Model: BD-04AB11L
  • Rated Voltage: 24V DC
  • Current : ≤0.3A
  • Max Pressure: ≥2.5 bar (250 kPa / 0.25 MPa / 36.2594 psi)
  • Max Flow: ≥11 L/min (11 LPM / 660 L/H)
  • Noise:

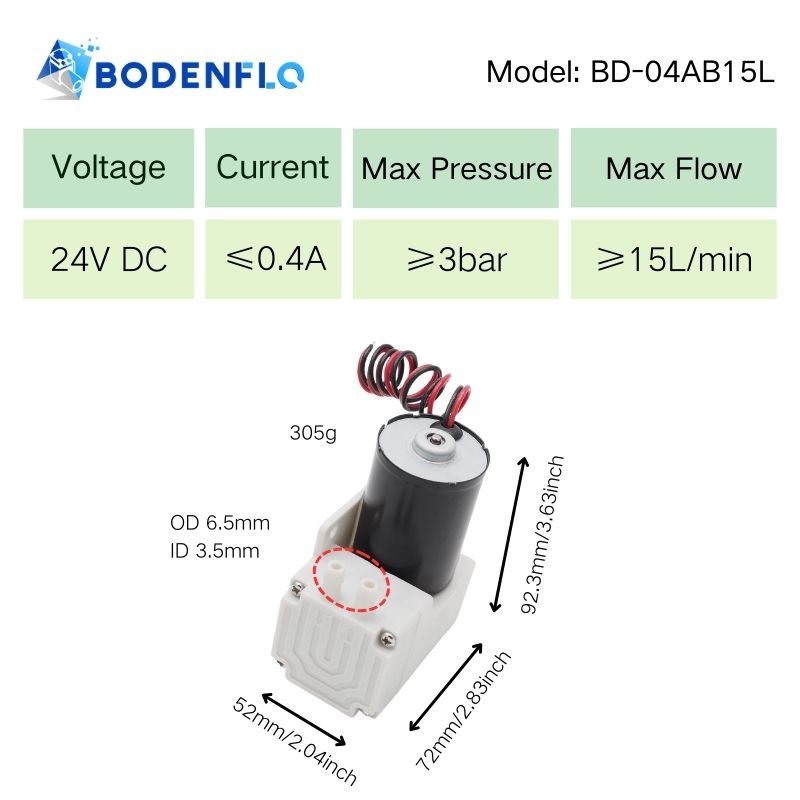

BD-04AB15L Technical Specifications:

  • Name: Brushless Air Pump
  • Model: BD-04AB15L
  • Rated Voltage: 24V DC
  • Current : ≤0.4A
  • Max Pressure≥3 bar (300 kPa / 0.3 MPa / 43.5114 psi)
  • Max Flow: ≥15 L/min (15 LPM / 900 L/H)
  • Noise:★★

BD-04AB20L Technical Specifications:

  • Name: Micro Air Compressor
  • Model: BD-04AB20L
  • Rated Voltage: 24V DC
  • Current : ≤0.6A
  • Max Pressure≥3.5 bar (350 kPa / 0.35 MPa / 50.7632 psi)
  • Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
  • Noise:★★★

General Specifications

  • Motor Type: DC Brushless Motor
  • Diaphragm Material: EPDM
  • Life time: 5000 Hours
  • Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
  • Dimension: 92.3x72x52mm
  • Weight: 305g(approx.)
  • Environment temperature range: 0~40℃
  • Ambient humidity range: 80%

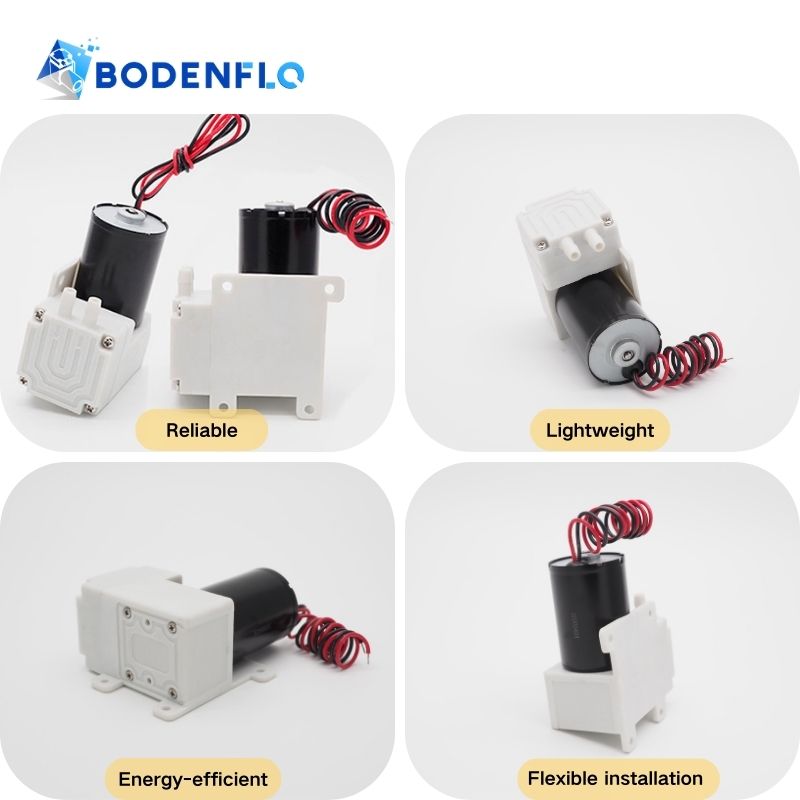

Key Features of Brushless Air Pump:

  • Enhanced Reliability: Designed for consistent performance, minimizing downtime in critical applications.
  • Rapid Response Time: Quickly adjusts air flow and pressure to meet changing operational demands, ideal for dynamic systems.
  • Environmentally Friendly: No carbon brushes mean less pollution and a lower environmental impact over the pump's lifespan.
  • Smooth Operation: The brushless design results in fewer vibrations, ensuring stable performance and protecting sensitive components.
  • User-Friendly Design: Easy to install and operate, making it accessible for a variety of users, including those without technical expertise.

Common Applications:

  • Air Mattresses and Cushions: Provides controlled air circulation for comfort and pressure adjustment in therapeutic products.
  • Air Quality Monitoring: Used in portable air quality sensors to draw air samples, enabling real-time measurement of pollutants and particulate matter.
  • Pressure Calibrators: Generates precise pressure levels for calibrating gauges and sensors, ensuring accurate and reliable measurement in various settings.

Manufacturer Information:

  • Brand: BODENFLO
  • Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
