24V Diaphragm Air Pump Precision Flow Control for Beauty Equipment BD-02A1.5L BODENFLO

BD-02A1.5L Mini Diaphragm Air Pump by BODENFLO is a compact yet powerful air pump designed for various industrial and medical applications. Operating on a 24V DC power source, this pump delivers a maximum flow rate of 1.5 L/min with a pressure capability of over 120kPa. Its low noise level (≤60dB) and compact dimensions make it ideal for use in tight spaces and noise-sensitive environments.

BD-02A1.5L Technical Specifications:

• Name: Micro Air Pump
• Model: BD-02A1.5L
• Rated Voltage: 24V DC
• Current : ≤0.1A
• Max Pressure: >120kPa (1.2 bar / 0.12 MPa / 17.4045 psi)
• Max Flow: >1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)

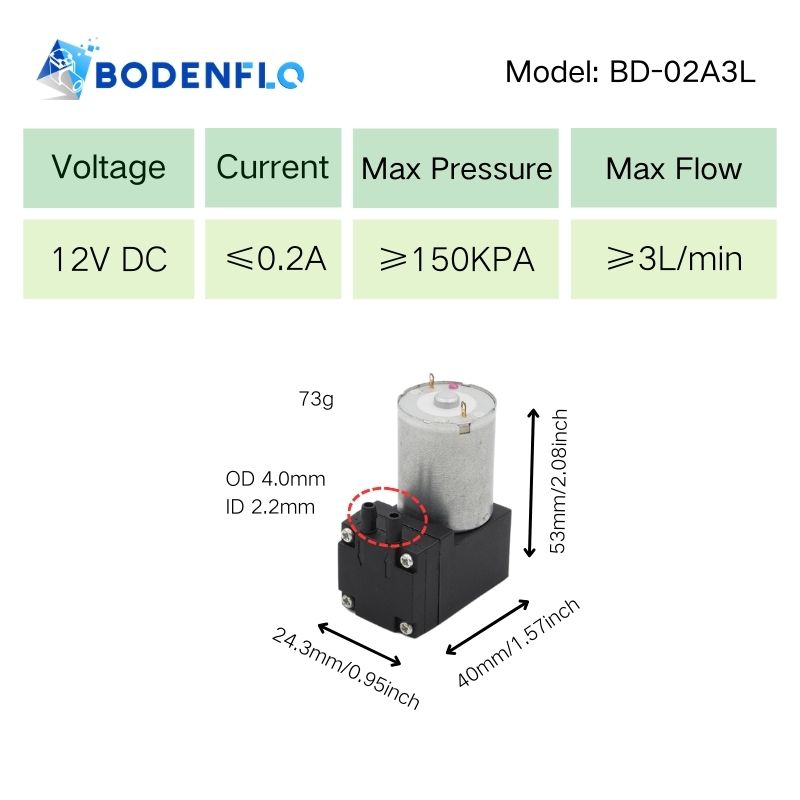

• Dimension: 53x40x24.3mm
• Weight: 73g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Diaphragm Air Pump:

• Low Power Requirements: Operates efficiently on low power, making it compatible with battery-operated and portable devices.
• Easy Maintenance: Requires minimal maintenance due to robust design and durable components, reducing downtime and operational costs.
• Long Operational Life: High-quality components ensure the pump can operate over extended periods without failure, enhancing equipment longevity.
• Environmental Durability: Capable of functioning across a range of environmental conditions, such as varying temperatures and humidity levels.
• Precise Flow and Pressure Control: Delivers accurate air flow and pressure, critical for applications that demand high precision, such as medical or lab equipment.

Common Applications:

• Beauty and Personal Care: Operates facial steaming devices and microdermabrasion machines, providing controlled air or water jets.
• Laser Cutting and Engraving Systems: Provides airflow to remove debris during cutting and engraving processes, improving precision and safety.
• Fruit and Vegetable Washers: Generates fine bubbles for effective cleaning, removing pesticides and contaminants while preserving produce quality.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
