24V Air Sample Pump Long Lifespan Brushless for Gas Monitors -85KPA BD-05T067L BODENFLO

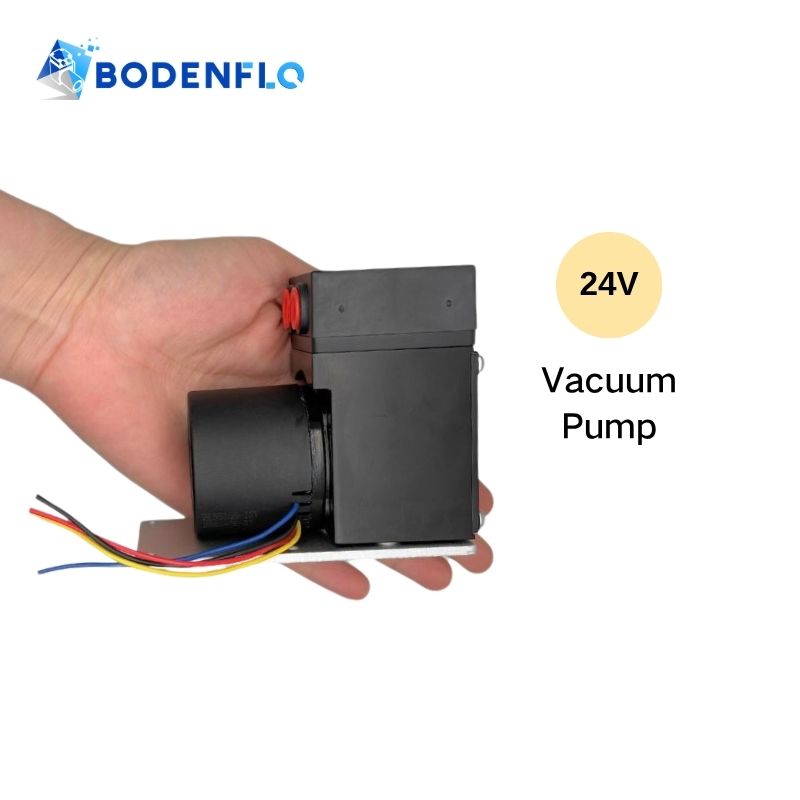

The BODENFLO BD-05T067L 24V Micro Vacuum Pump is a compact, high-performance brushless diaphragm vacuum pump built for demanding gas analysis applications such as CEMS, VOC monitoring, and portable gas analyzers. Designed for long lifespan and continuous operation, it delivers stable suction with low noise and zero oil contamination. Ideal for integration into precision instruments, this DC vacuum pump ensures reliable sampling performance in compact layouts and challenging environments.

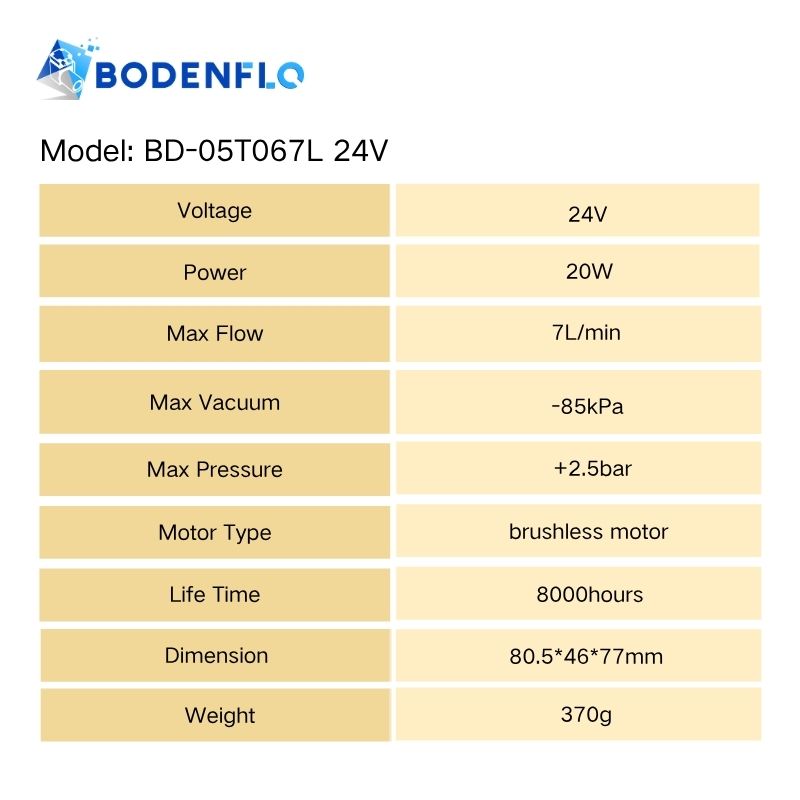

BD-05T067L 24V Technical Specifications:

• Name: Micro Diaphragm Gas Pump
• Model: BD-05T067L 24V
• Rated Voltage: 24V DC
• Power: 20W
• Max Pressure: >250 kPa ( 2.5 bar/ 0.25 MPa / 36.2594 psi)
• Max Vacuum: >-85 kPa ( -637mmHg /0.085 MPa )
• Max Flow: > 7L/min ( 7LPM / 420L/H)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)

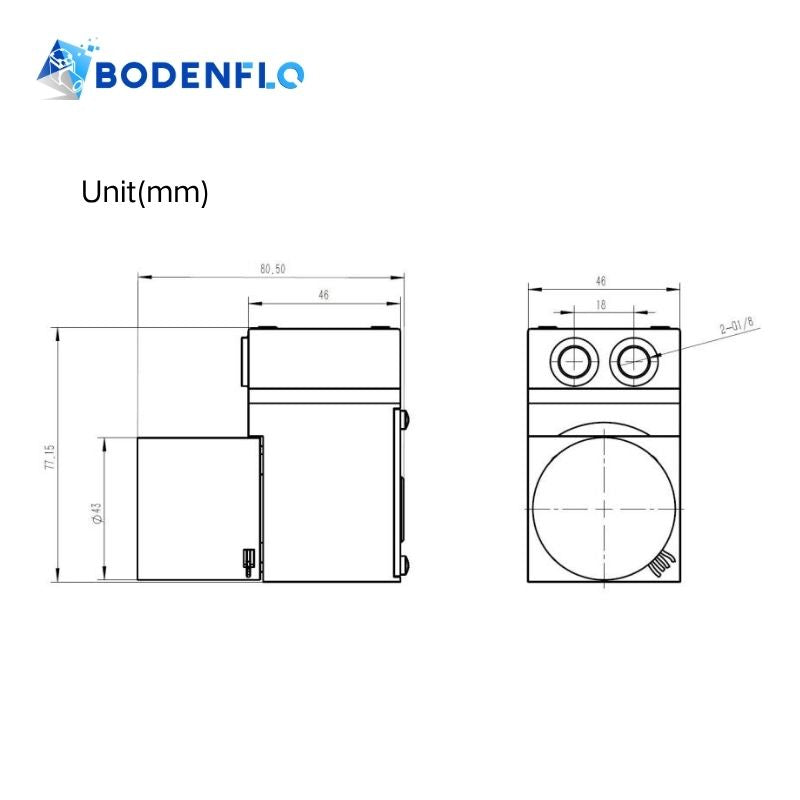

• Dimension: 80.5*46*77mm
• Weight: 307G(approx.)
• Storage Temperature: -40℃~60℃
• Operating Environment: 0℃~45℃
• Max Medium Temperature: -10℃~45℃
• Accessories: 4 shock absorbers, 1 filter

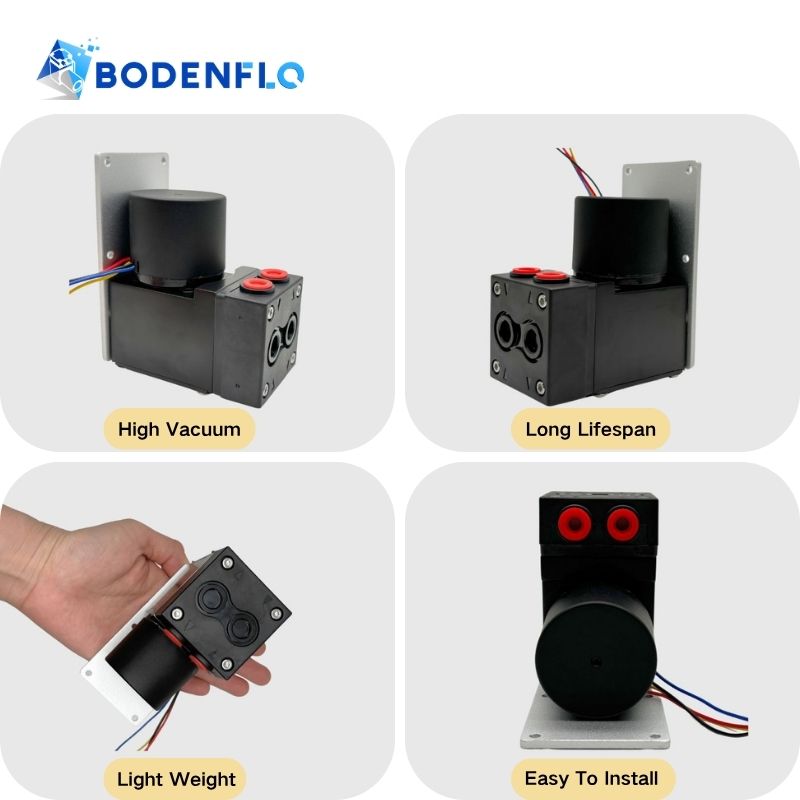

Key Features of DC Vacuum Pump:

• Oil-Free Operation: Provides clean and maintenance-free vacuum generation, suitable for sensitive analytical systems.
• Compact & Lightweight: Small footprint allows for easy integration into portable and space-constrained equipment.
• Brushless Motor Design: Reduces wear and tear, offering longer service life and lower maintenance costs.

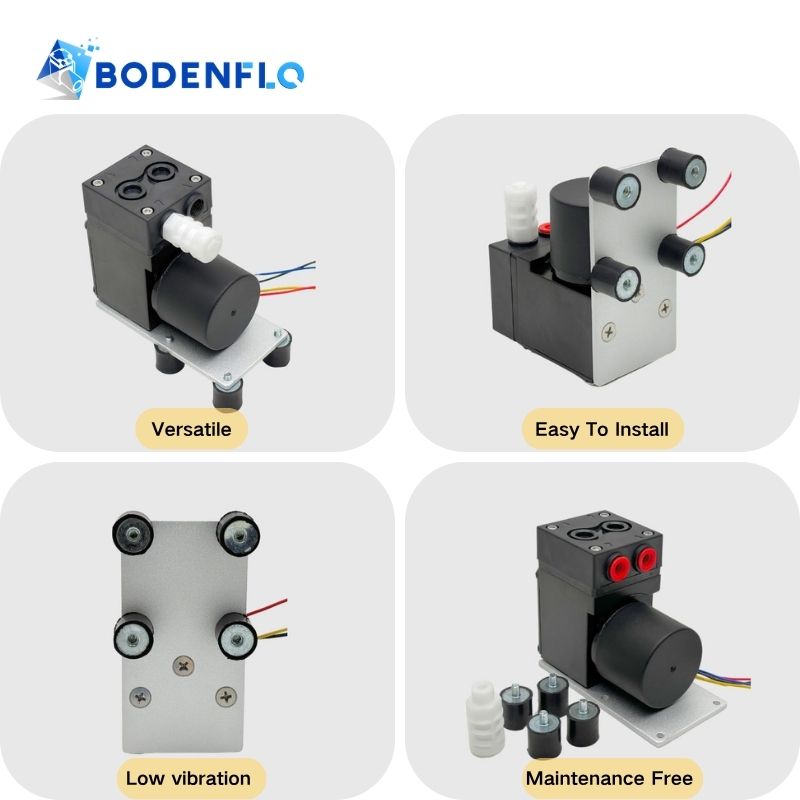

• Shock Absorption Compatible: Equipped with shock absorbers for better durability during transport and vibration.
• Easy Installation and Maintenance: Modular design makes it easy to install, replace, or clean when needed.

Common Applications:

• Air Quality Monitoring Stations: Assists in drawing in ambient air samples for pollution level assessment.
• Portable Gas Analyzers: Integrates into portable instruments for real-time gas concentration measurements in the field.
• Environmental Testing Equipment: Supports accurate sampling for environmental research and field analysis.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
