24V Small Water Vacuum Pump Low Noise Design Dental & Solar Water Heaters Applications BD-04WB BODENFLO

BD-04WB 24V micro liquid pump delivers precision water flow with low power consumption, making it ideal for diverse applications across medical, industrial, and scientific environments. Powered by a durable brushless motor, this compact pump ensures quiet operation and reliable performance. With a maximum flow rate of 1.5 L/min, it provides efficient water circulation for solar water heaters, dental equipment, and more.

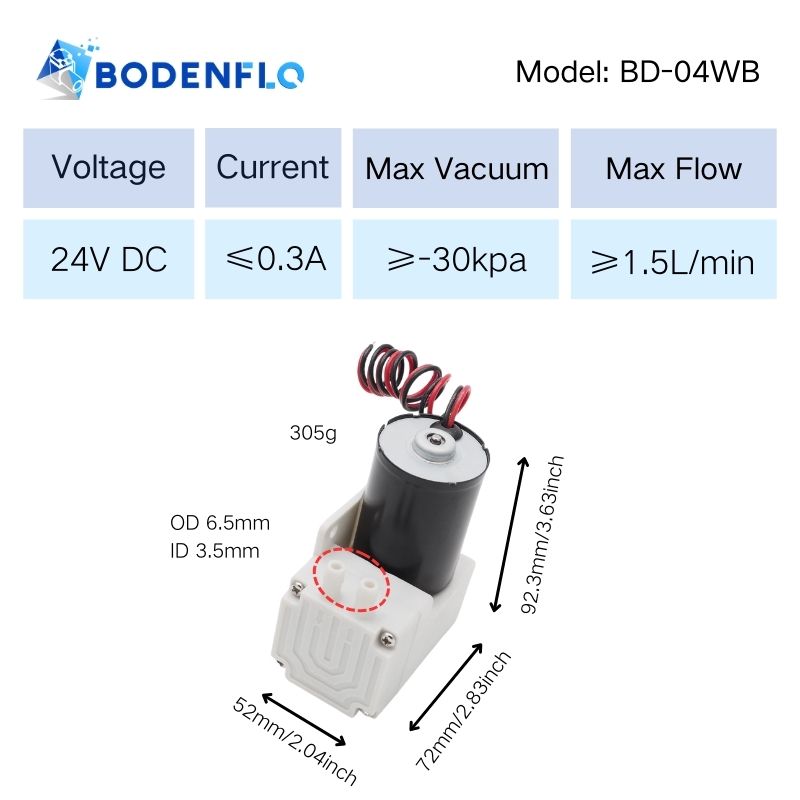

BD-04WB Technical Specifications:

• Name: Water Pump 24 Volt
• Medium: Water
• Model: BD-04WB
• Rated Voltage: 24V DC
• Current : ≤0.3A
• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -4.3511 psi)
• Max Flow: ≥1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM
• Life time: 5000 Hours
• Noise: 55dB
• Dimension: 92.3x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

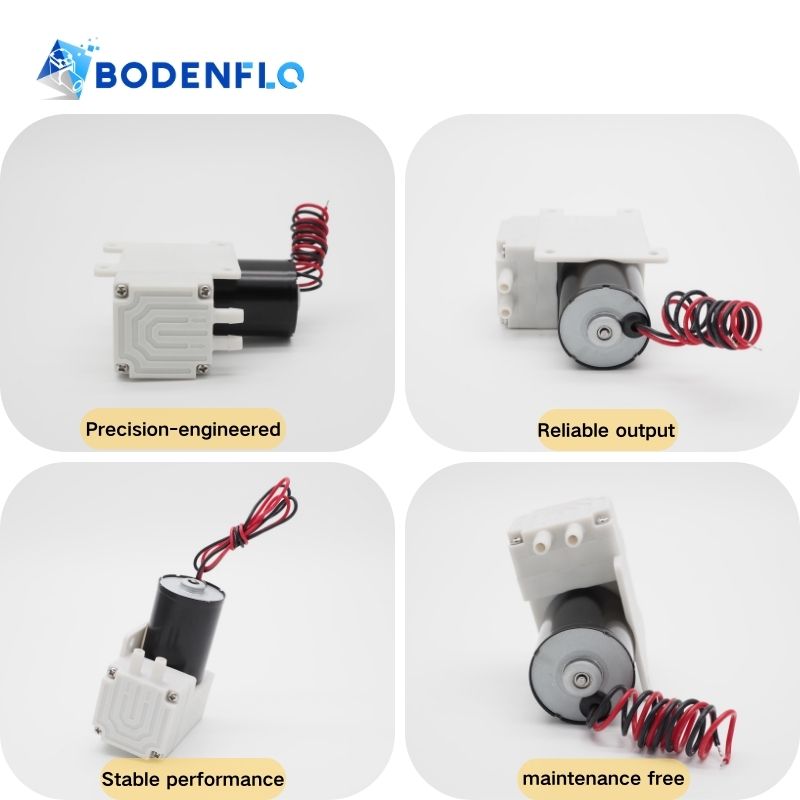

Key Features of Micro Liquid Pump:

• Low Noise Operation: Quiet performance is ideal for noise-sensitive applications like laboratories and medical environments.

• Long Service Life: Brushless motor technology ensures extended operational life with minimal maintenance.

• Precise Flow Control: Provides steady and accurate water flow for sensitive equipment.

• Low Heat Generation: Ensures safe operation in continuous use without overheating.

• Stable Performance: Reliable flow rate and vacuum strength provide consistency in demanding applications.

• Easy Installation: Lightweight and compact, making it simple to integrate into existing systems.

Common Applications:

• Dental Equipment: Provides controlled water flow for dental drills and cleaning tools, enhancing patient care during procedures.
• Solar Water Heaters: Circulates water in solar thermal systems, optimizing energy efficiency by ensuring even heating.
• Wastewater Treatment Systems: Pumps liquids through filtration stages in compact, decentralized wastewater treatment systems, optimizing purification.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
