24V Air Vacuum Pumps Strong Negative Suction for Sampling & Analysis BD-05TVB BODENFLO

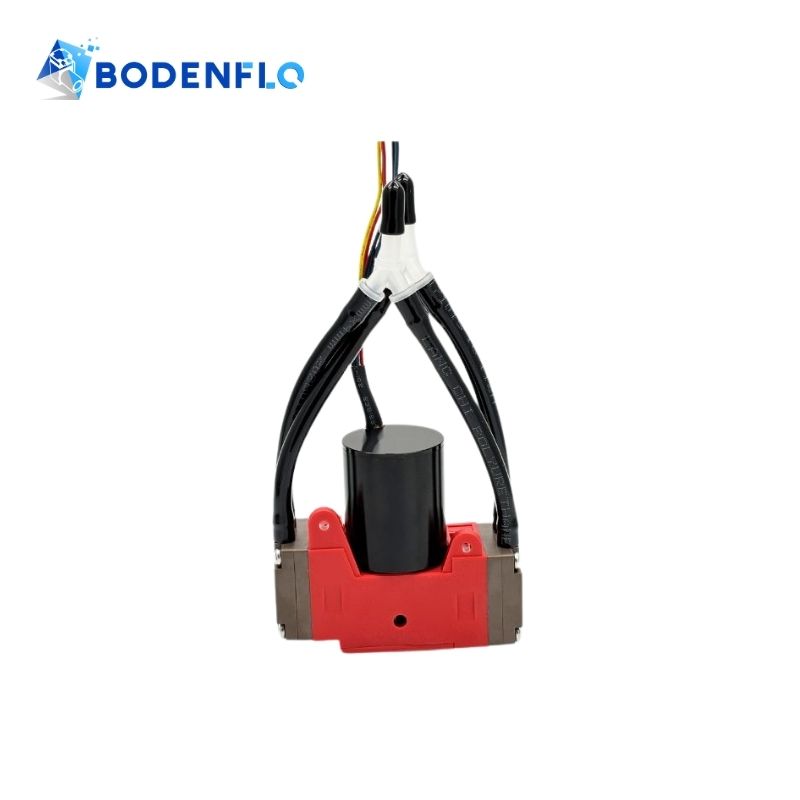

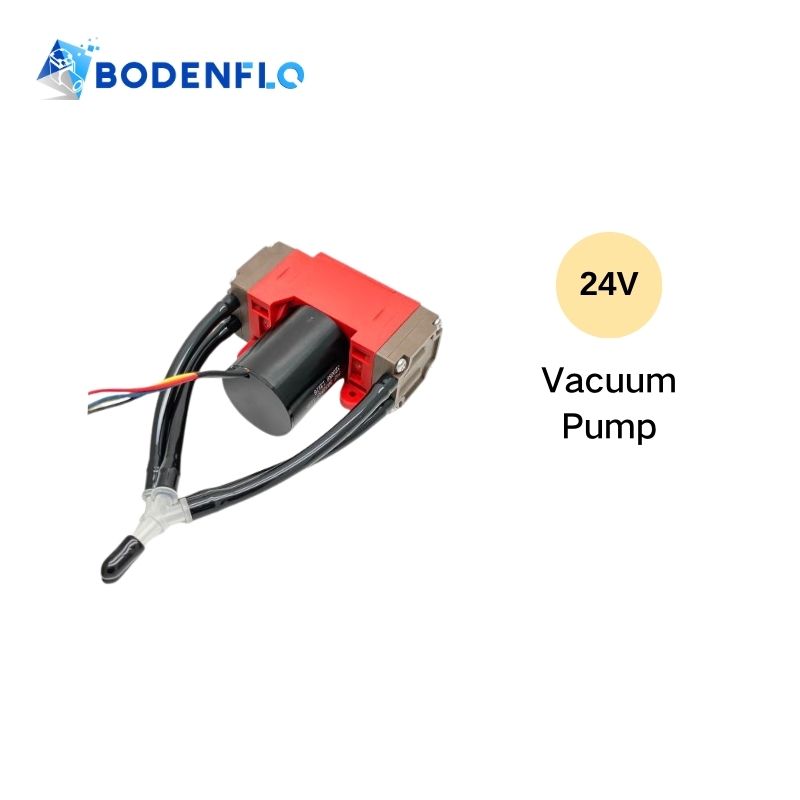

BD-05TVB 24V is a compact, oil-free micro vacuum pump designed for reliable sampling and analysis tasks. Featuring a brushless motor and dual-head diaphragm, it delivers strong negative suction pressure with stable performance and long service life—ideal for integration into portable analyzers and lab equipment.

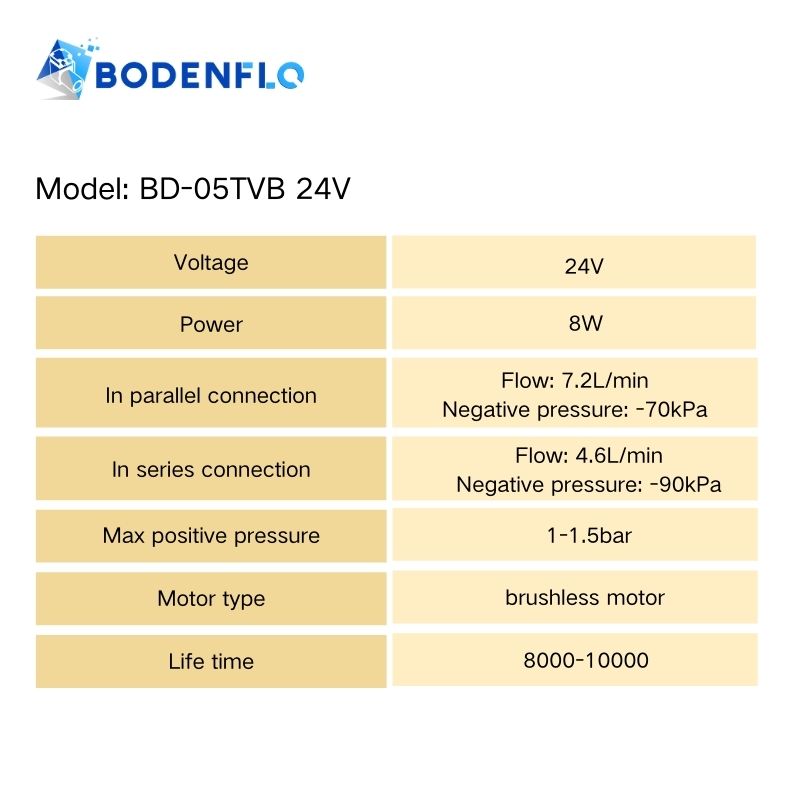

BD-05TVB 24V Technical Specifications:

• Name: Mini Gas Pumps
• Model: BD-05TVB 24V
• Rated Voltage: 24V DC
• Power: 8W
• In Parallel Connection:

           Flow: 7.2L/min

           Negative Pressure: -70kPa ( -525 mmHg /0.07 MPa )

• In Series Connection:

           Flow: 4.6L/min

           Negative Pressure: -90kPa ( -675 mmHg /0.09 MPa )

• Max Pressure: >100-150 kPa ( 1-1.5 bar/ 0.1-0.15 MPa / 14.5037-21.7556 psi)
• Noise:★

General Specifications

• Motor Type: Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000-10000 Hours
• Noise: ≤60dB

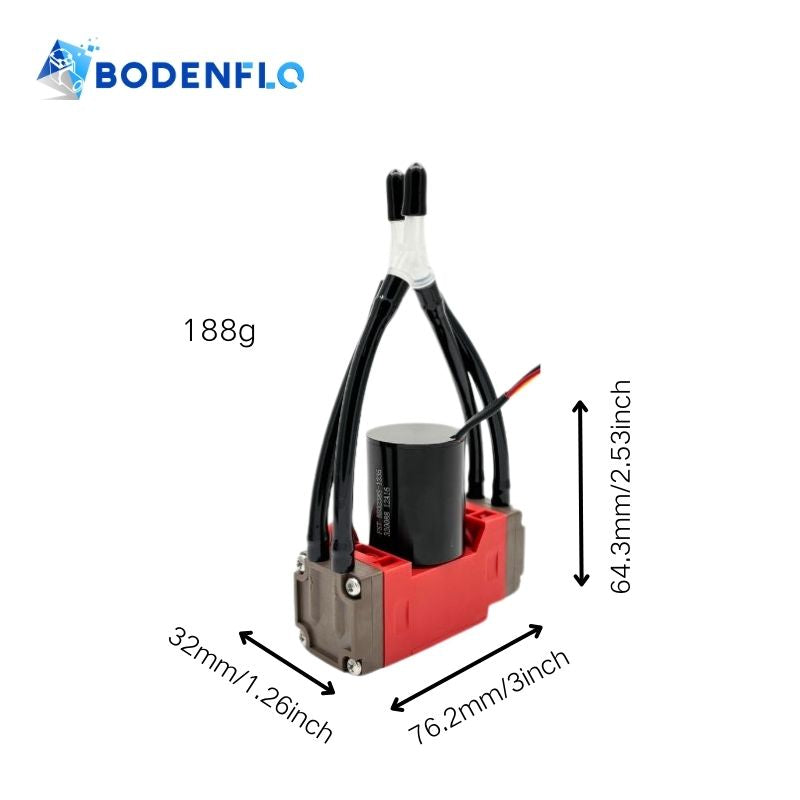

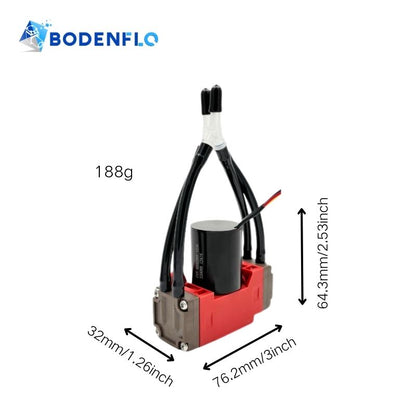

• Dimension: 76.2x64.3x32mm
• Weight: 188G(approx.)
• Operating Environment Temperature: -20-45℃
• MediumTemperature: -10-45℃

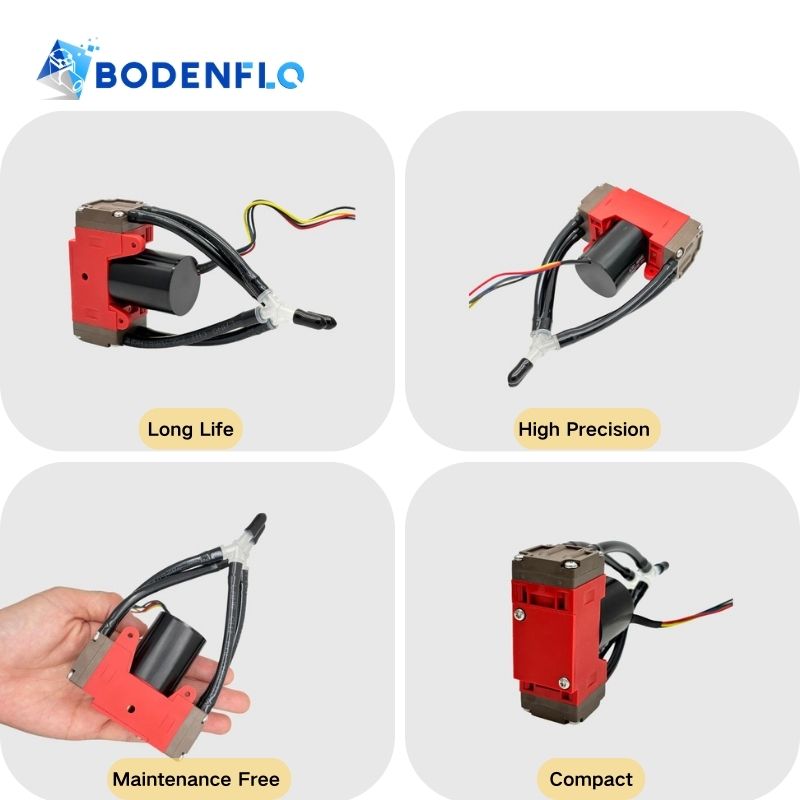

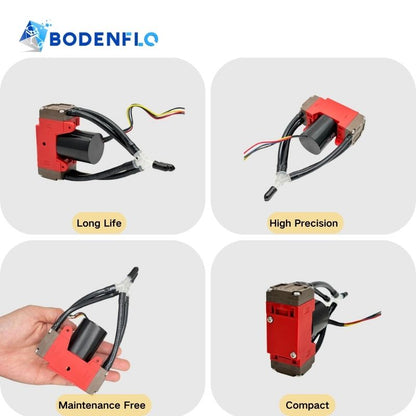

Key Features of Small Suction Pumps:

• Low Noise Level: Operates quietly, suitable for noise-sensitive applications like laboratories.
• High Efficiency: Optimized for energy savings without sacrificing suction performance.
• Corrosion-Resistant Materials: EPDM diaphragm resists chemical wear and extends lifespan.
• Flexible Mounting: Lightweight and adaptable for horizontal or vertical installations.
• Precise Control: Provides smooth airflow and vacuum control essential for measurement devices.

Common Applications:

• Laboratory Gas Samplers: For collecting and analyzing gas samples in environmental testing.
• Portable Analytical Instruments: Integrated in compact devices for real-time data collection.
• Air Quality Monitors: Ensures steady sampling for pollutant detection systems.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
