24V Small Piston Pump High Precision Suction Industrial Robotics Use BD-04VB 20L BODENFLO

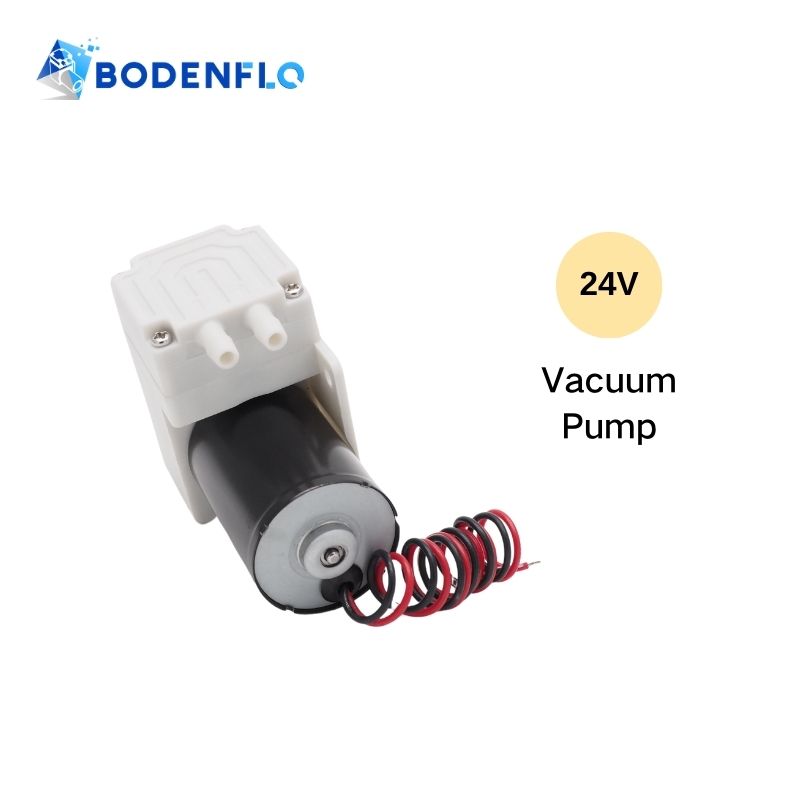

BD-04VB 24V micro suction pump are engineered for precision and reliability. With advanced brushless motor technology, these pumps provide efficient suction with minimal wear, ensuring consistent performance over an extended service life. The series offers a range of models with flexible flow rates and vacuum capabilities, making them ideal for sensitive applications in medical devices, research labs, and industrial systems.

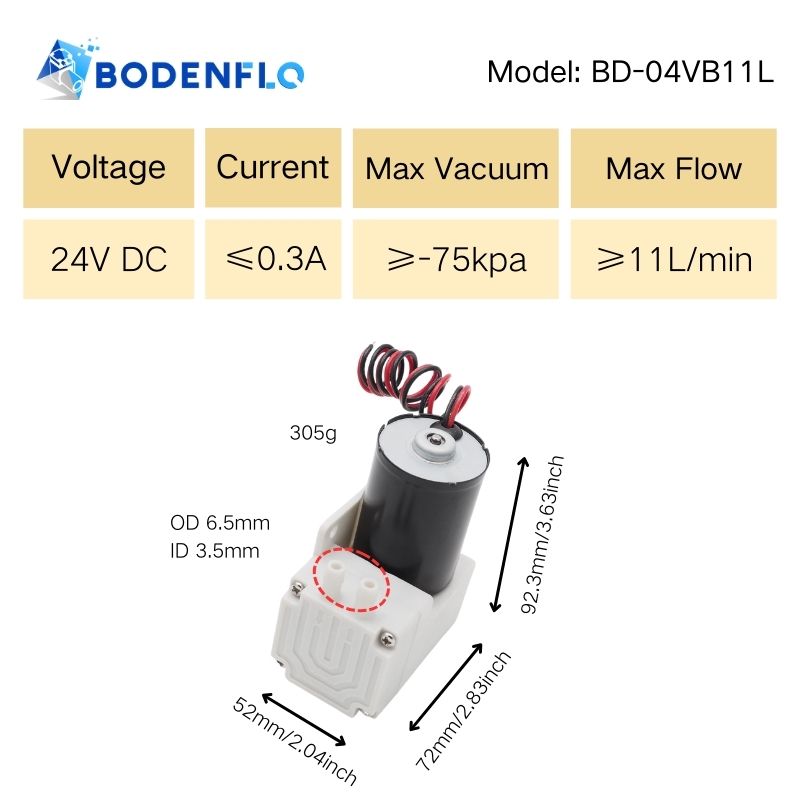

BD-04VB11L Technical Specifications:

• Name: Small Suction Pumps
• Model: BD-04VB11L
• Rated Voltage: 24V DC
• Current : ≤0.3A
• Max Vacuum: ≥-75 kPa (-562 mmHg /0.075 MPa )
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise: ★

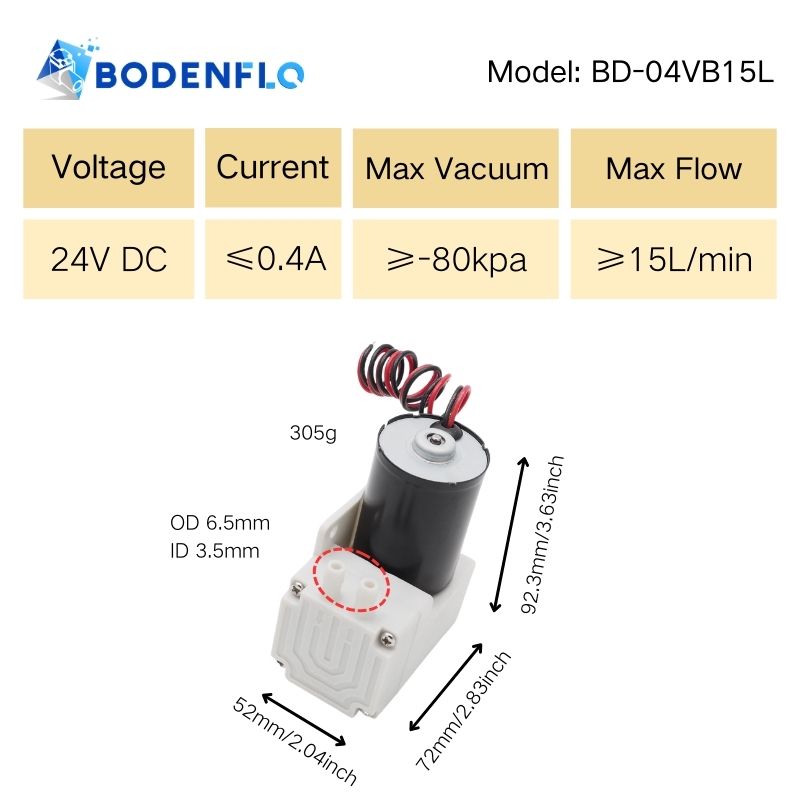

 BD-04VB15L Technical Specifications:

• Name: Miniature Vacuum Pump
• Model: BD-04VB15L
• Rated Voltage: 24V DC
• Current : ≤0.4A
• Max Vacuum: ≥-80 kPa (-600 mmHg / 0.08 MPa )
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise: ★★

 BD-04VB20L Technical Specifications:

• Name: Micro Vacuum Pumps
• Model: BD-04VB20L
• Rated Voltage: 24V DC
• Current : ≤0.6A
• Max Vacuum: ≥-85 kPa (-637 mmHg / 0.085 MPa )
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise: ★★★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM
• Life time: 5000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 92.3x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Small Suction Pumps:

• Long Lifespan: Brushless motors operate without the friction of traditional brushes, resulting in extended durability and reliability.
• High Efficiency: The absence of mechanical wear in brushless motors leads to optimized energy use, providing better overall performance.
• Versatile Application Range: Suitable for a variety of industries, from medical devices to industrial automation, thanks to its combination of power, precision, and reliability.

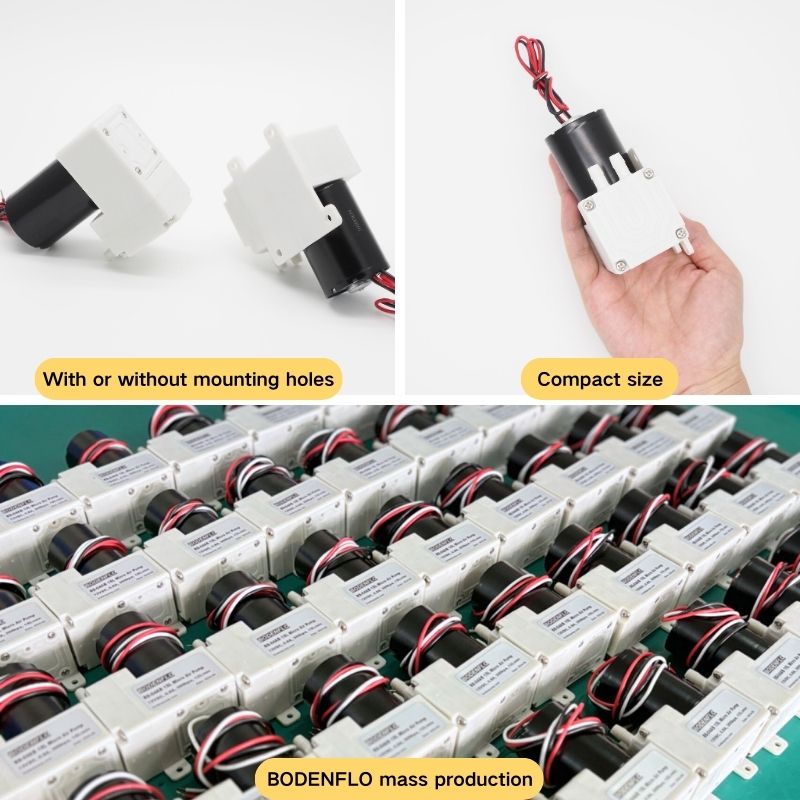

• Compact Design: The small size of these pumps allows for easy integration into tight spaces, making them ideal for compact equipment.
• Low Power Consumption: Efficient motor technology reduces energy usage, making these pumps ideal for battery-powered or energy-conscious systems.

Common Applications:

• Industrial Robotics: Provides suction for pick-and-place robots used in automated manufacturing and packaging systems.

• CPAP (Continuous Positive Airway Pressure) Devices: Supports consistent air pressure delivery for sleep apnea treatment.

• Dialysis Machines: Supports medical dialysis processes by ensuring steady suction and air removal for blood filtration.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
