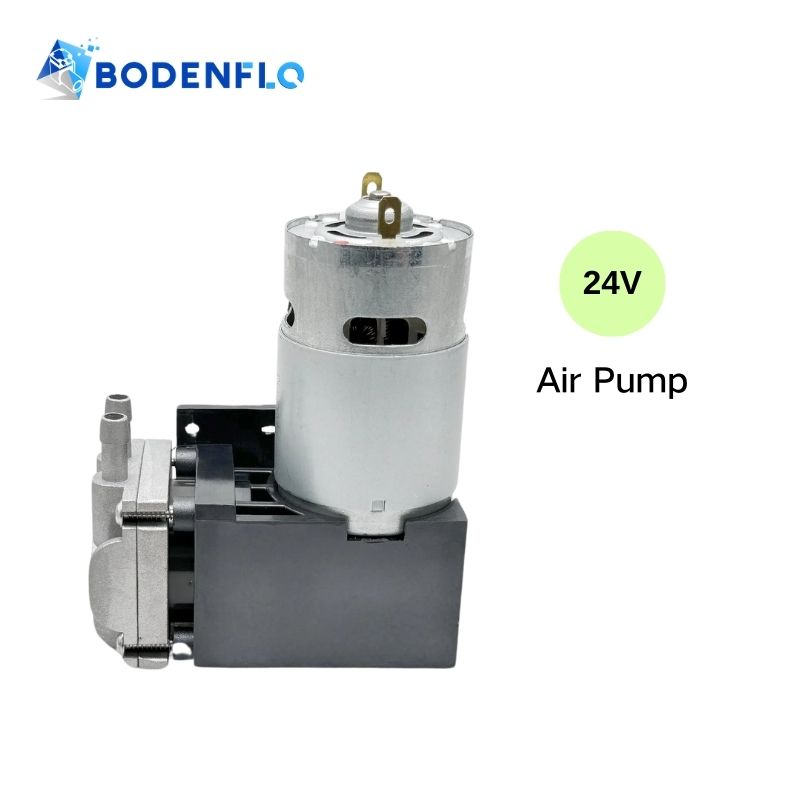

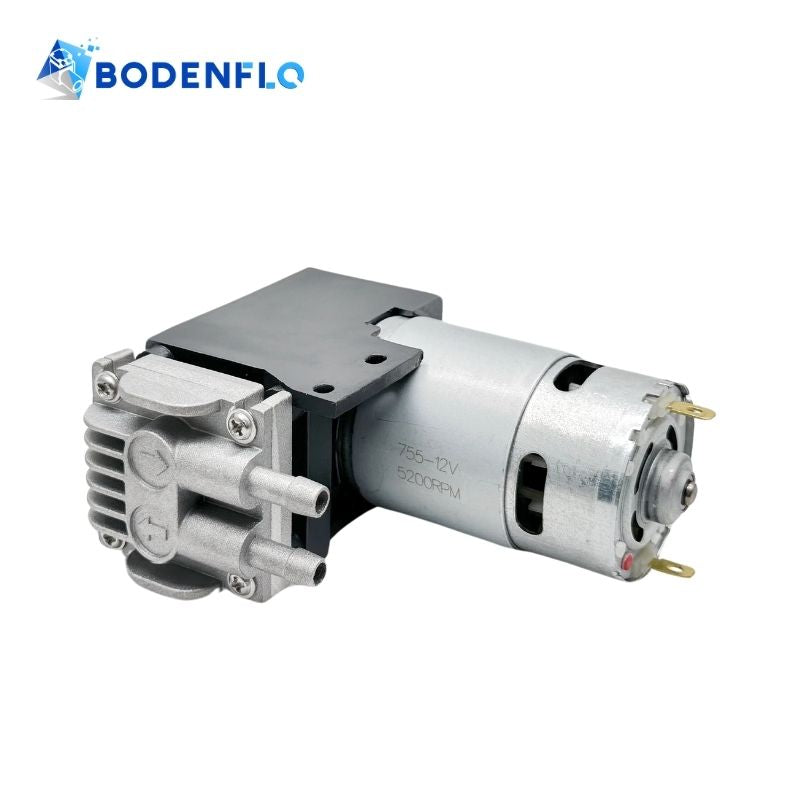

24V Mini Air Pump with 5.5-6.5bar High Pressure 18/24/35L Flow for Various Applications BD-07A-M BODENFLO

BD-07A-M Mini Air Pump is engineered for performance, providing high pressure and flow rates essential for a wide range of applications. With its robust metal head construction, this piston air pump operates efficiently at a rated voltage of 24V DC, making it ideal for both industrial and 3D Printers use. Its compact design ensures easy installation and versatility, while its reliable motor ensures longevity, making it an excellent choice for various air transfer needs. Whether you require a consistent air supply for inflatables or efficient air circulation for devices, our mini air pump delivers optimal performance and durability.

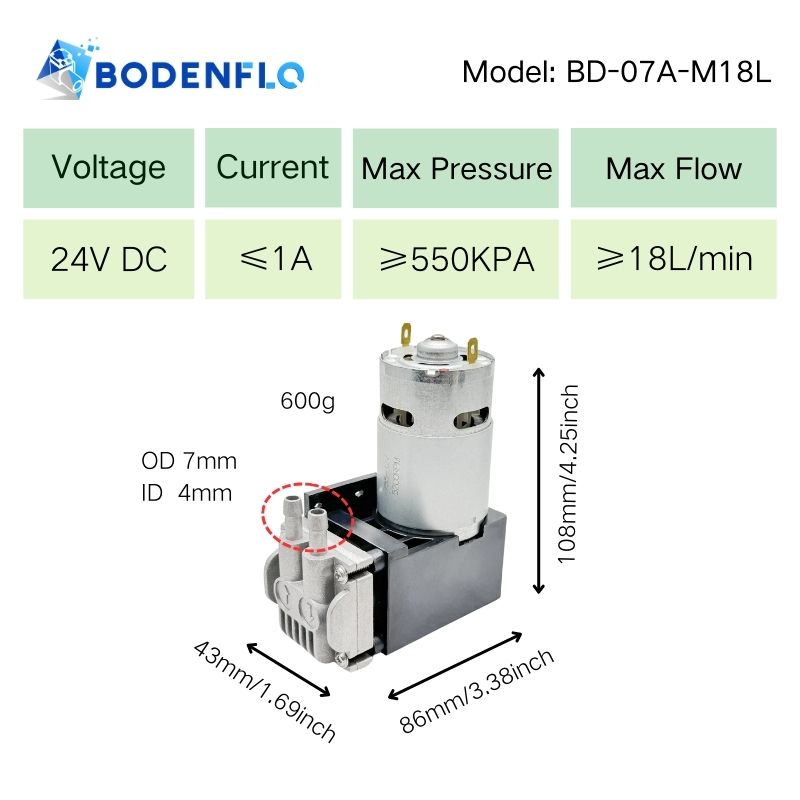

BD-07A-M18L Technical Specifications:

• Name: Mini Air Pump
• Model: BD-07A18L
• Rated Voltage: 24V DC
• Current : ≤1A
• Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.8psi)
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07A-M26L Technical Specifications:

• Name: Piston Air Pump
• Model: BD-07A-M26L
• Rated Voltage: 24V DC
• Current : ≤1.5A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87psi)
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

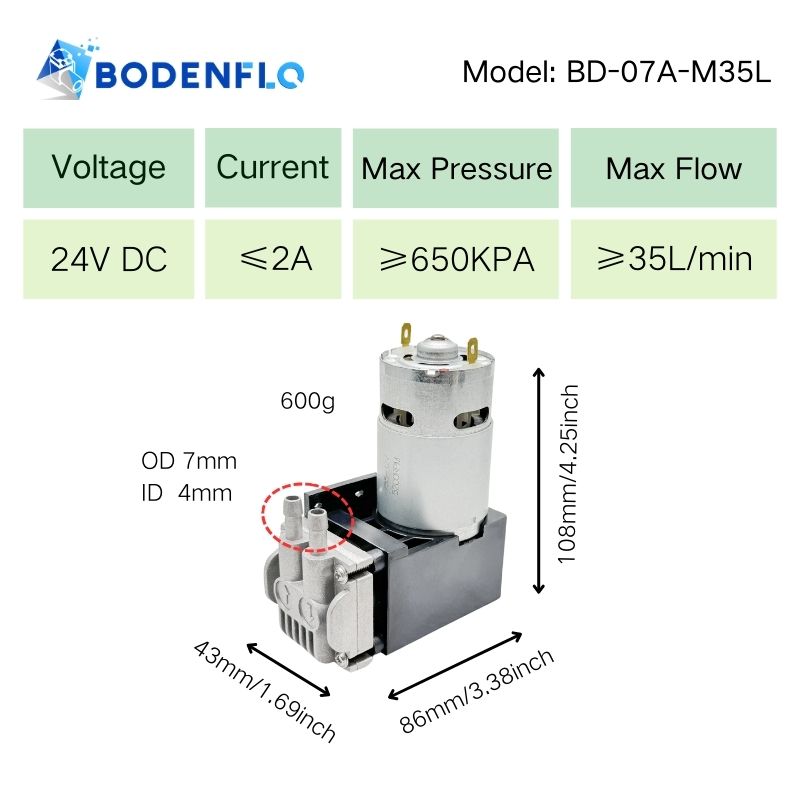

BD-07A-M35L Technical Specifications:

• Name: DC Air Pump
• Model: BD-07A-M35L
• Rated Voltage: 24V DC
• Current : ≤2A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.3psi)
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86x43mm
• Weight: 600g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

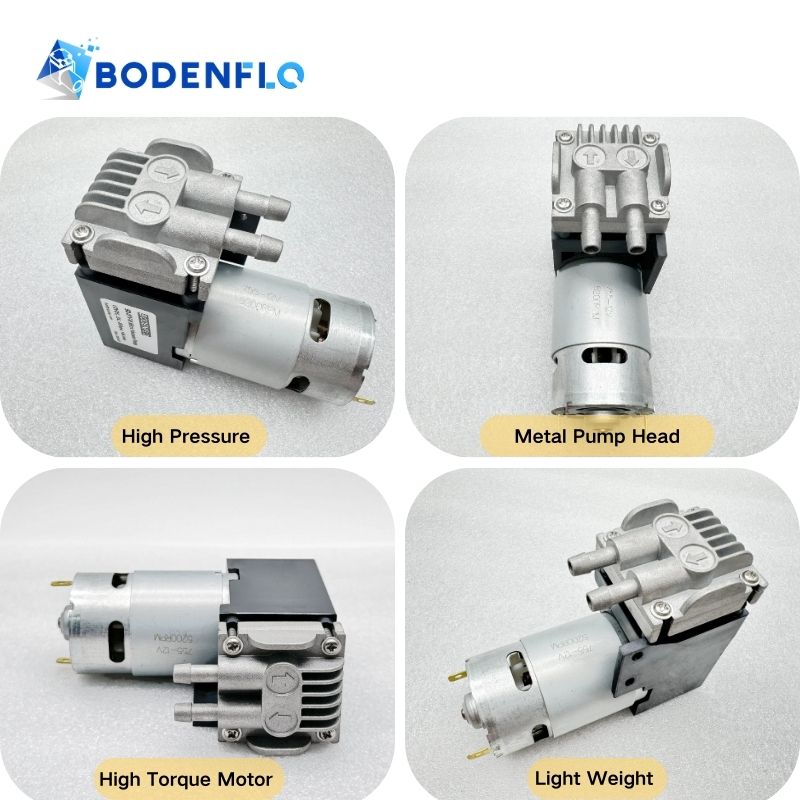

Key Features of Mini Air Pump:

• Consistent Airflow: Provides a steady and reliable airflow, ensuring optimal performance in various applications.
• Durable Construction: Built with high-quality materials, making it resistant to wear.
• Lightweight Design: Easy to handle and install, making it suitable for both portable and stationary applications.
• Low Maintenance: Requires minimal upkeep due to its robust design and quality materials, saving time and costs for users.
• Compact Form Factor: Small size allows for flexible placement in tight spaces without sacrificing performance.

Common Applications:

• Massagers Devices: Deliver controlled air pressure to massage the skin, promoting circulation and relaxation, often used in facial or body massage tools.
• Household Appliances: The BD-07A-M piston pump is essential for household appliances such as coffee machines and juicers, providing reliable pressure to enhance functionality and ensure optimal performance.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
