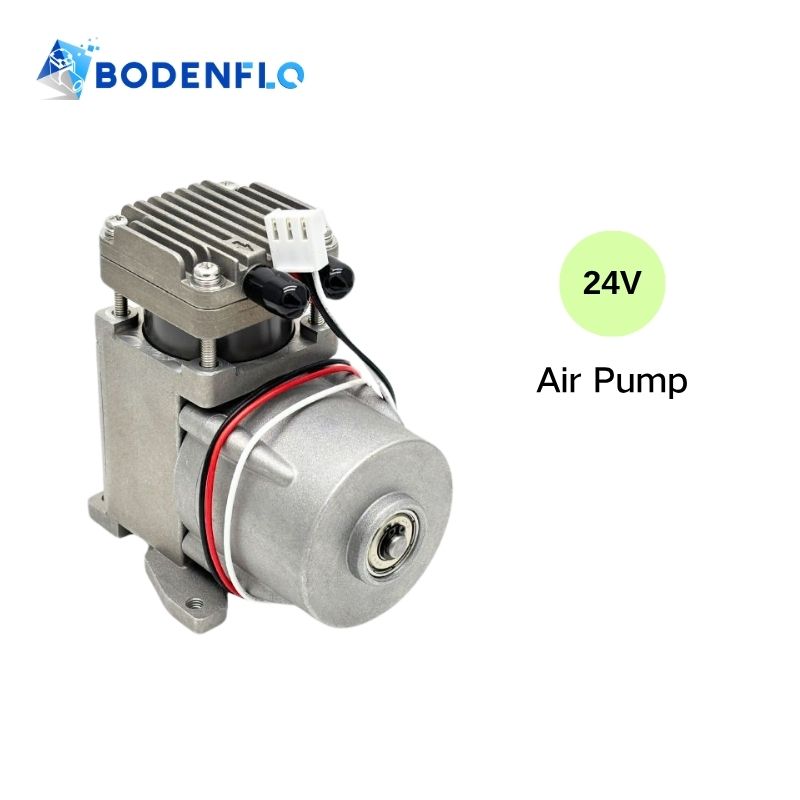

24V Mini Compressor Aluminum Pump 6bar 45L For Medical & Foam Sprayers BD-08AB-S45L BODENFLO

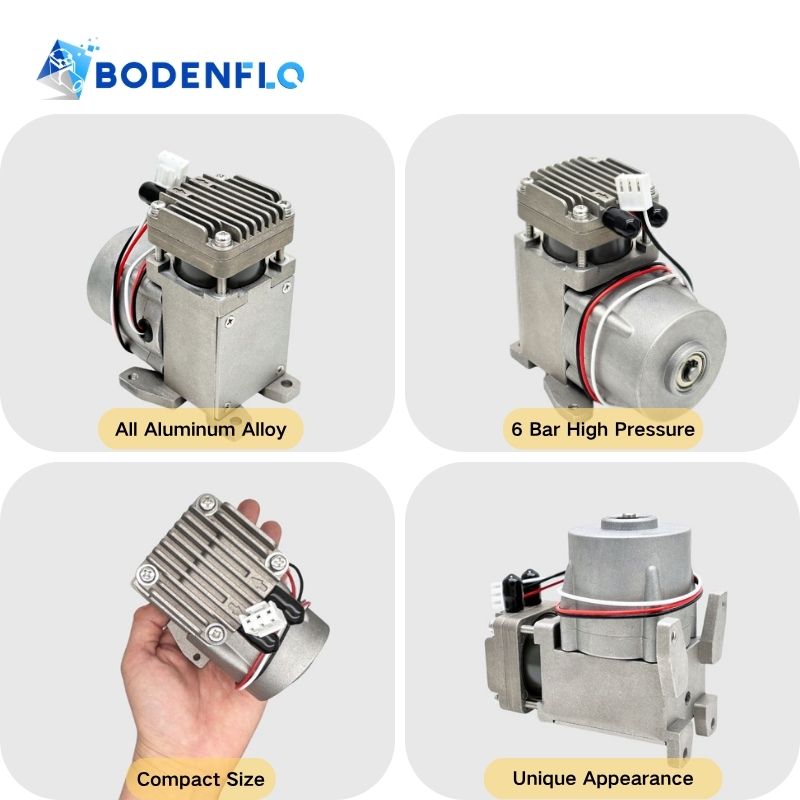

The BD-08AB-S45L is a compact, high-pressure mini compressor built with a robust aluminum alloy body, designed to operate reliably under continuous load and elevated temperatures. Powered by a brushless DC motor, it offers strong pressure output and long service life. Ideal for demanding applications like 3D printing, foam sprayers, and medical compression therapy, this micro piston compressor ensures consistent airflow, low maintenance, and high durability.

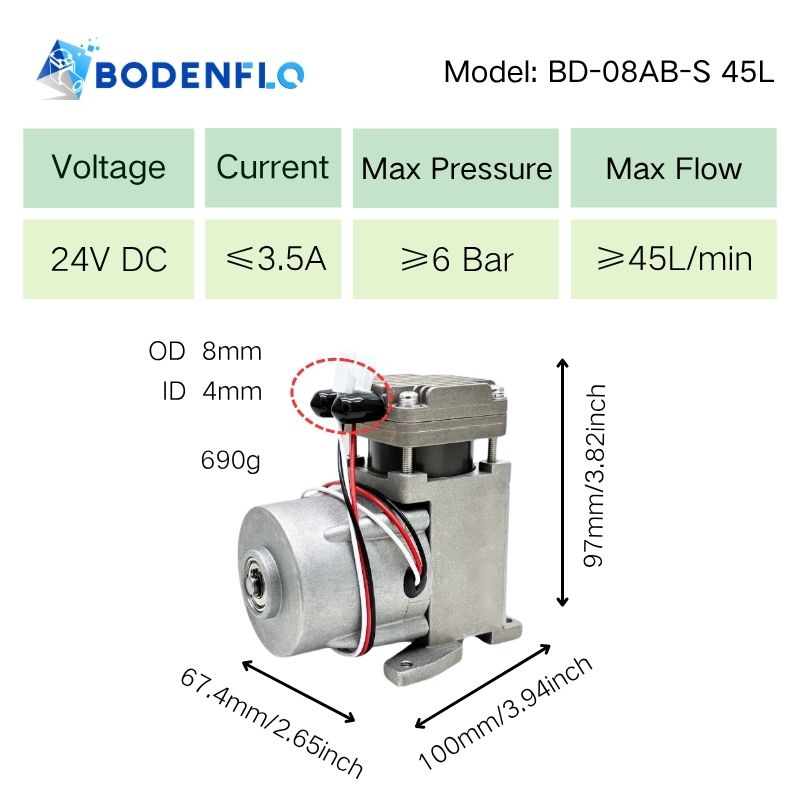

BD-08AB-S45L Technical Specifications:

• Name: Mini Compressor
• Model: BD-08AB-S45L
• Rated Voltage: 24V DC
• Current : ≤3.5A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87.0266 psi)
• Max Flow: >45 L/min (45 LPM / 2700 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Rubber Material: high temperature and pressure resistant rubber
• Rubber Material: high temperature and pressure resistant rubber
• Life time: 5000 Hours
• Noise: ≤75dB(with silencer can be reduce 1-3dB)
• Dimension: 100x97x67.4mm
• Weight: 690g(approx.)
• Operating Environment Temperature: 5-45℃
• Ambient humidity range: ＜80%

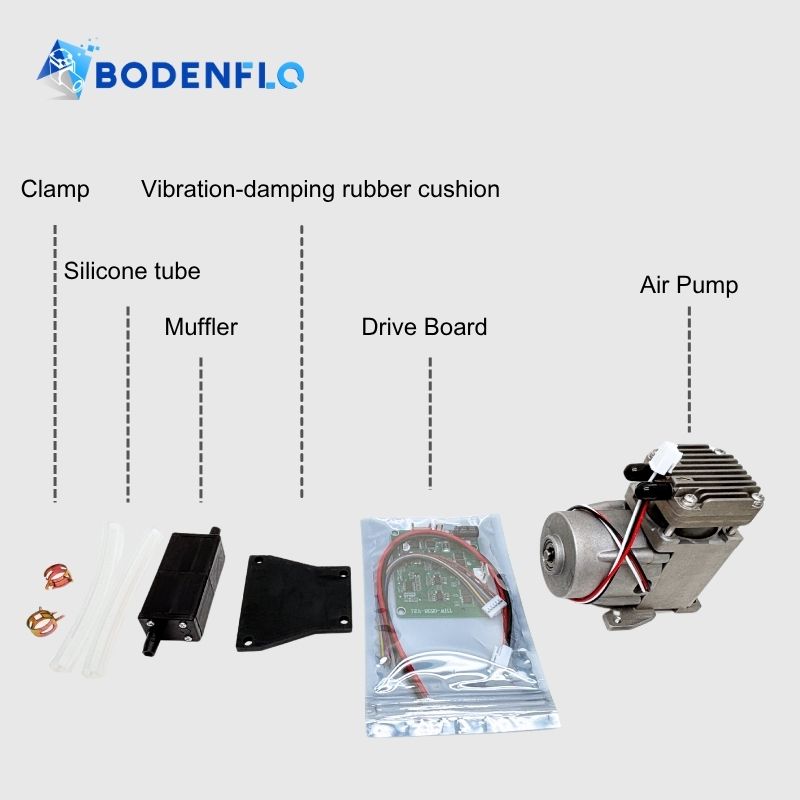

• Accessories: 2 Clamp, 2 Silicone tube, 1 Muffler, 1 Vibration-damping rubber cushion, 1 Driver board

Key Features of Mini Piston Compressor:

• Aluminum Alloy Housing: Strong, corrosion-resistant casing for high temperature and pressure environments.
• High Pressure Output: Delivers over 600 kPa for demanding pneumatic systems.
• Long Service Life: Durable design supports 5000+ hours of use with minimal wear.
• Compact but Powerful: Small size with strong flow—ideal for space-limited devices.
• Vibration-Reducing Mounts: Includes anti-vibration parts for stable and quiet system integration.

Common Applications:

• Medical Compression Therapy Devices:  Powers pneumatic compression systems for circulatory treatment or post-surgery recovery.
• High-Pressure Foam Sprayers: Provides consistent airflow to create dense foam in cleaning or disinfection equipment.
• 3D Printing: Delivers precise air pressure for powder bed fusion or material cooling systems.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
