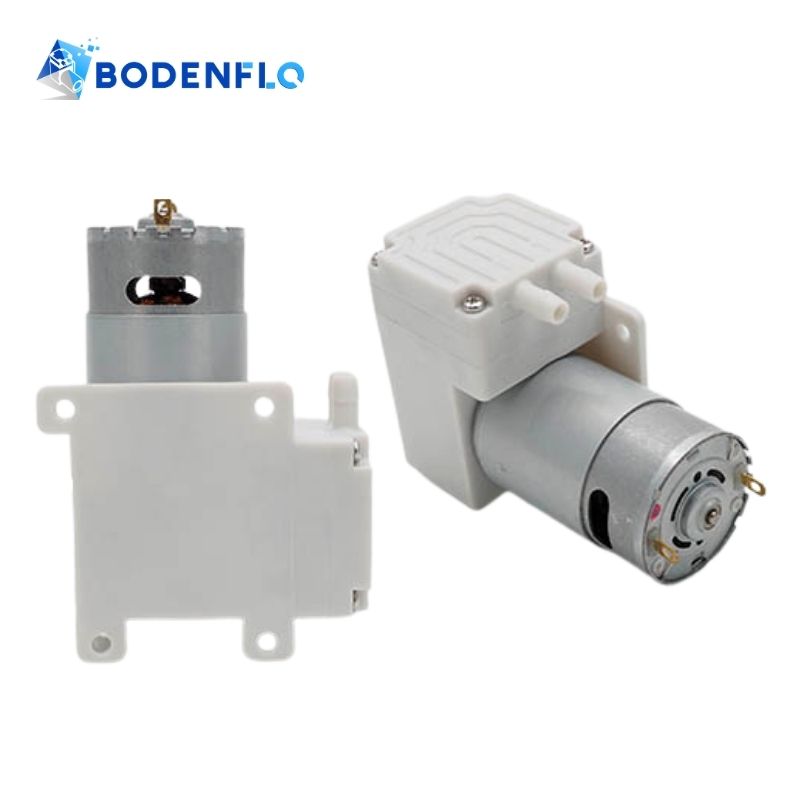

24V Mini Diaphragm Vacuum Pump BD-04V -85KPA 20L for Vacuum Facial Cleanser BODENFLO

BD-04V mini vacuum pump operates at 24V DC, delivering high flow rates of up to 20 L/min, making it ideal for Infusion pumps applications. Engineered for low noise operation, this compact pump ensures efficient and reliable performance in sensitive environments.

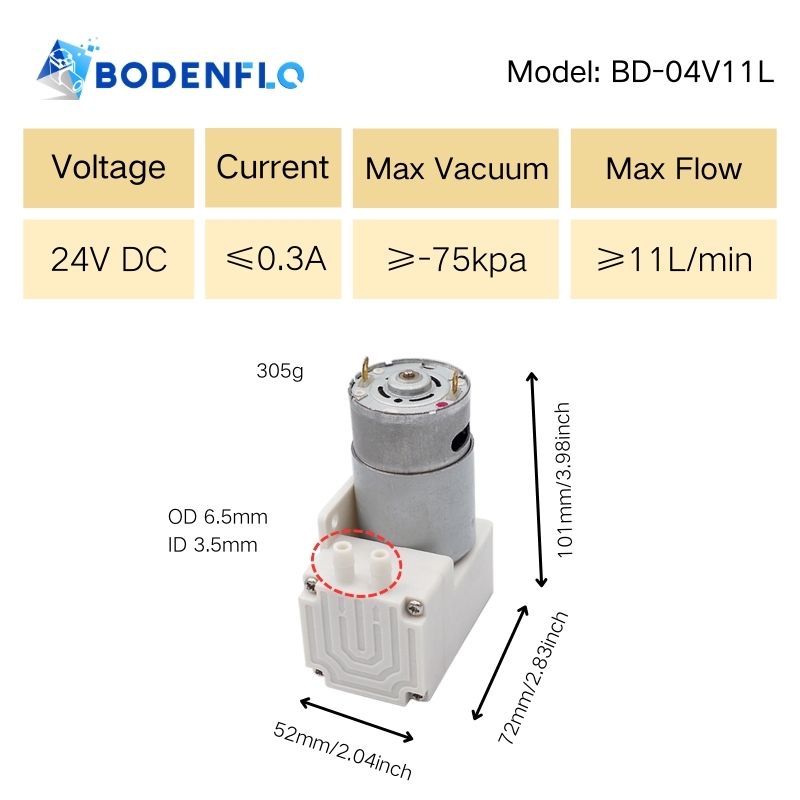

 BD-04V11L Technical Specifications:

• Name: Diaphragm Vacuum Pump
• Model: BD-04V11L
• Rated Voltage: 24V DC
• Current : ≤0.3A
• Max Vacuum: ≥-75 kPa (562 mmHg /0.075 MPa )
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise:★

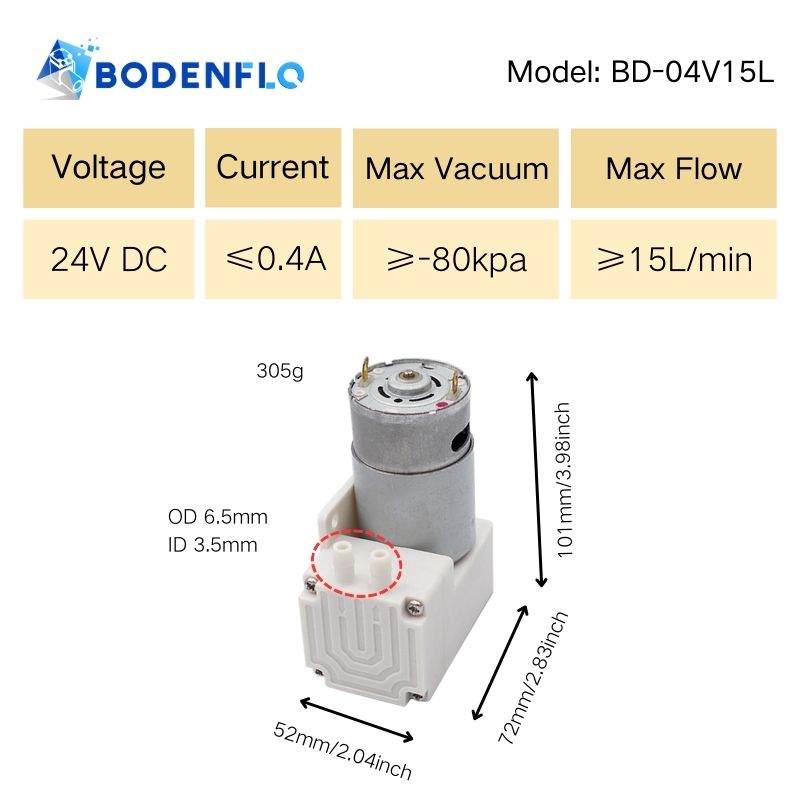

 BD-04V15L Technical Specifications:

• Name: Mini Vacuum Pump 24V
• Model: BD-04V15L
• Rated Voltage: 24V DC
• Current: ≤0.4A
• Max Vacuum: ≥-80 kPa (600 mmHg / 0.08 MPa )
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise:★★

 BD-04V20L Technical Specifications:

• Name: Miniature Vacuum Pump
• Model: BD-04V20L
• Rated Voltage: 24V DC
• Current : ≤0.6A
• Max Vacuum: ≥-85 kPa (637 mmHg / 0.085 MPa )
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimention: 101x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

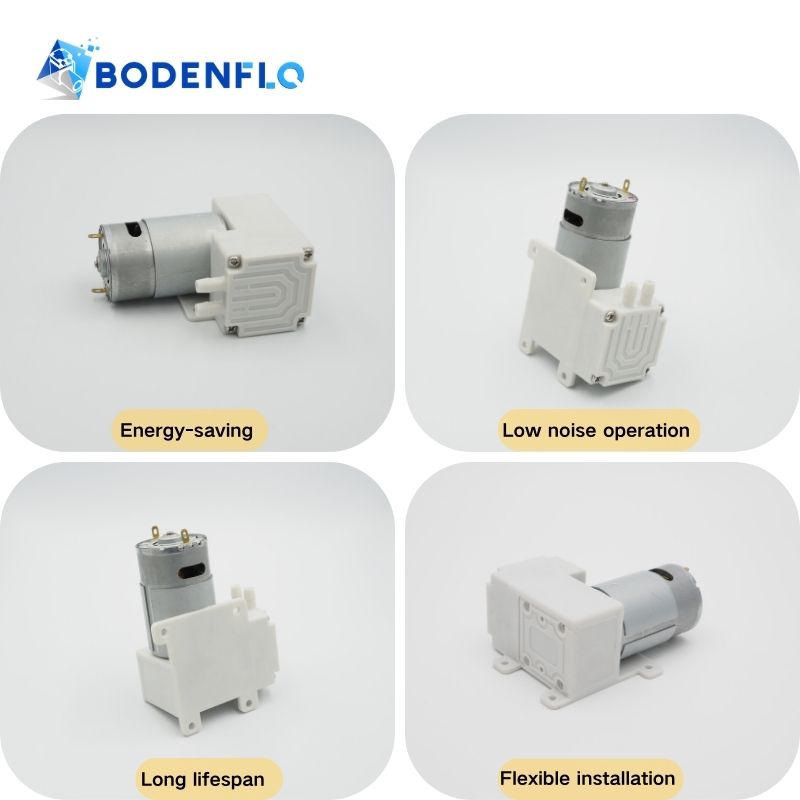

Key Features of Small Diaphragm Vacuum Pumps:

• High Efficiency: Optimized for effective vacuum generation, enhancing performance in various applications.
• Lightweight Construction: Designed for easy integration into portable devices and systems without adding significant weight.
• Rapid Response Time: Provides immediate adjustments to vacuum levels for dynamic control in various processes.
• Low Maintenance Design: Engineered for long-term use with minimal upkeep, reducing operational costs.
• Adaptable Performance: Suitable for both continuous and intermittent use, catering to diverse operational needs.

Common Applications:

• Vacuum Facial Cleanser: Effectively removes impurities and unclogs pores, promoting clearer skin through controlled suction.
• Vacuum Filtration Systems: Employed in laboratories for efficient filtration of liquids and separation of solids from solutions.

• Electronics: Assists in the assembly of electronic components by providing controlled vacuum for placement and adhesion.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
