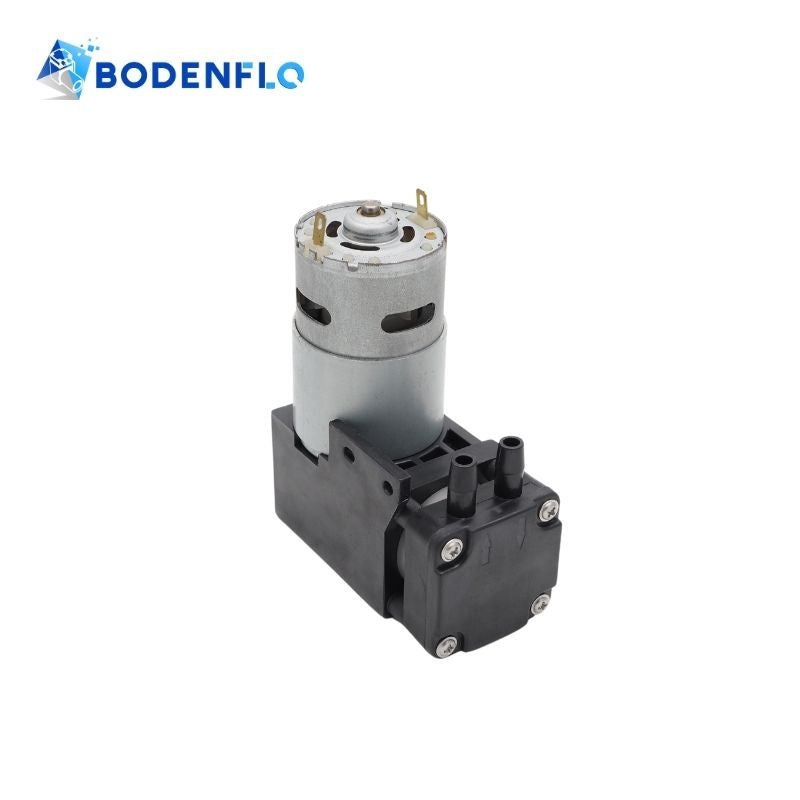

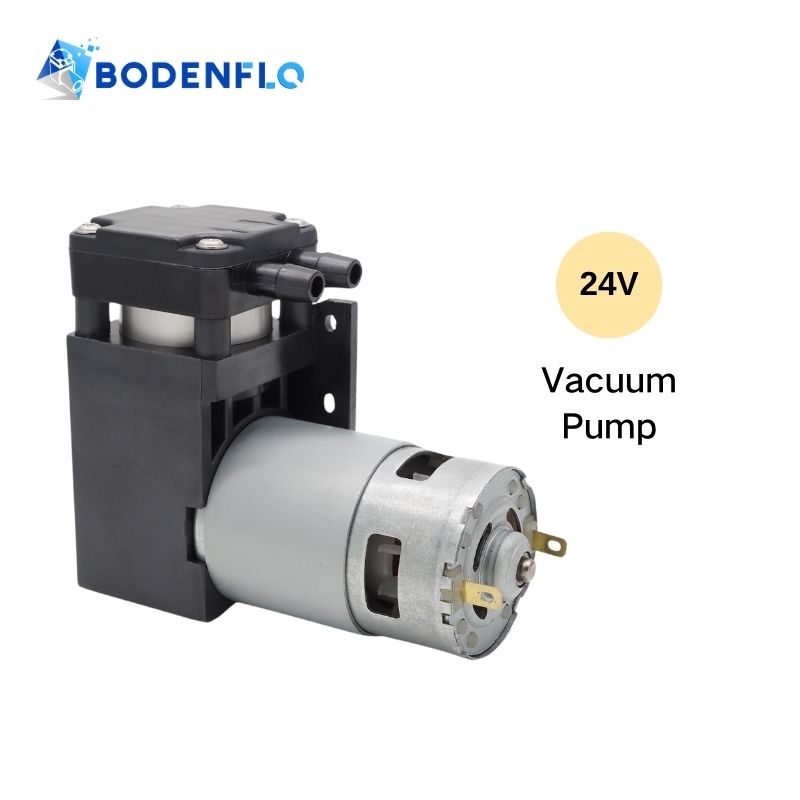

24V Small Suction Pump -85kpa 30L High Flow Mini Piston Vacuum Pump BD-07V BODENFLO

BD-07V small vacuum pumps provide powerful vacuum performance in a compact, efficient design. Ideal for applications that demand high suction and airflow, these mini piston pumps are equipped with a robust DC motor, delivering long-lasting durability and precise performance. Featuring PPS plastic, these pumps are optimized for a variety of industrial uses, ensuring reliable operation in diverse environmental conditions. Available in multiple flow and vacuum capacities, the BD-07V series offers versatility for any demanding application.

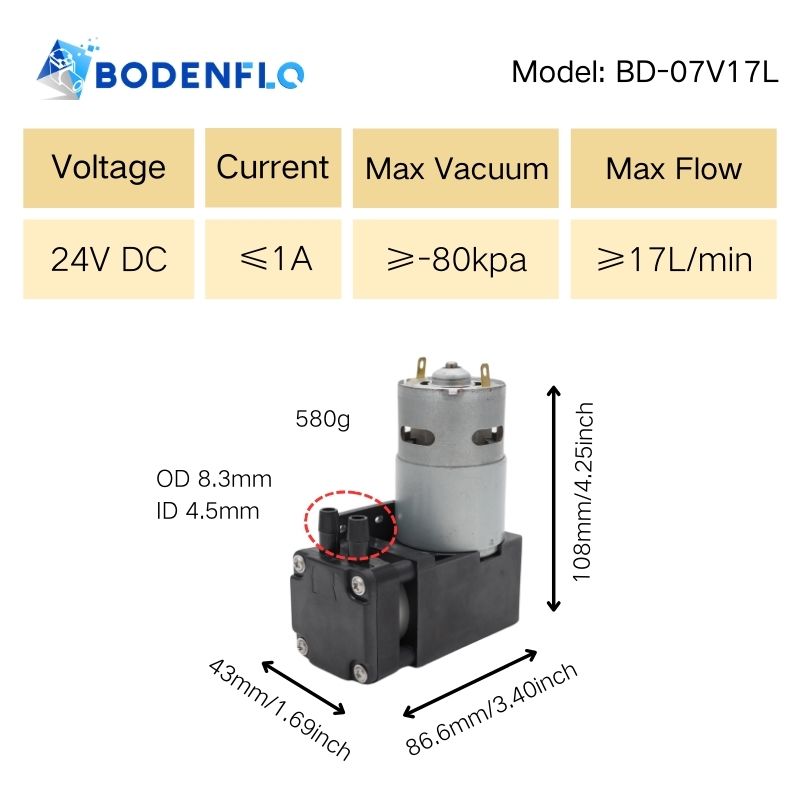

BD-07V17L Technical Specifications:

• Name: Small Suction Pumps
• Model: BD-07V17L
• Rated Voltage: 24V DC
• Current : ≤1A
• Max Vacuum: >-80 kPa ( -600mmHg /0.08 MPa )
• Max Flow: >17 L/min (17 LPM / 1020 L/H)
• Noise:★

BD-07V25L Technical Specifications:

• Name: Air Suction Pump
• Model: BD-07V25L
• Rated Voltage: 24V DC
• Current : ≤1.5A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >25 L/min (25 LPM / 1500 L/H)
• Noise:★★

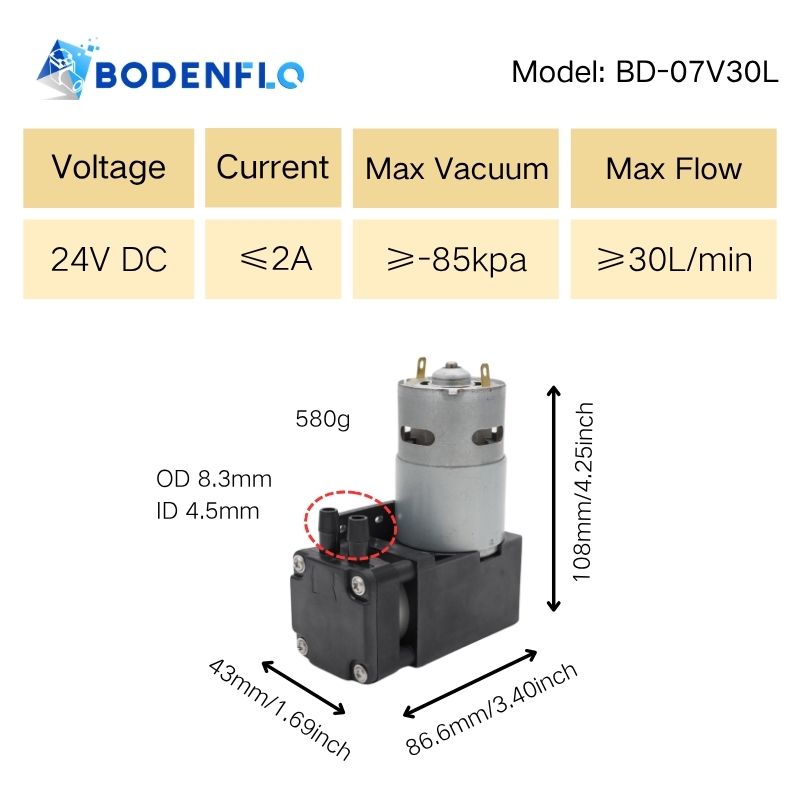

BD-07V30L Technical Specifications:

• Name: DC Vacuum Pump
• Model: BD-07V30L
• Rated Voltage: 24V DC
• Current : ≤2A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >30 L/min (30 LPM / 1800 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Valve Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-67dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86.6x43mm
• Weight: 580g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

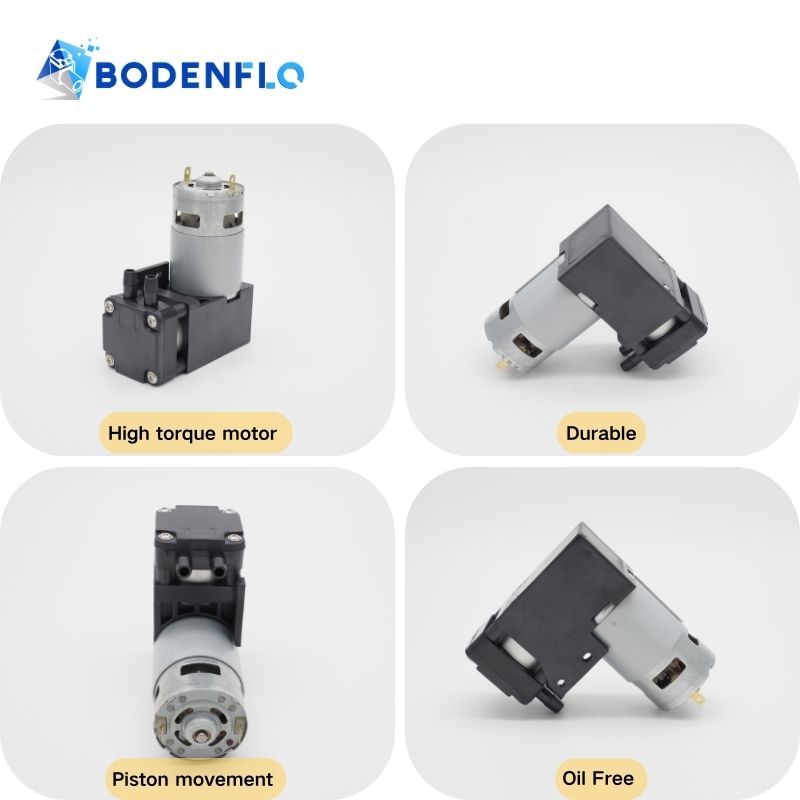

Key Features of Air Suction Pump:

• Powerful Suction: Delivers excellent vacuum performance, suitable for demanding industrial and laboratory applications.
• Stable Flow Rate: Maintains a steady flow, enabling precise control, ideal for applications requiring accurate vacuum and flow parameters.
• Efficient DC Motor: Reliable, high-efficiency motor ensures stable operation and prolonged device performance.
• Compact Design: Small size allows easy integration into compact spaces, ideal for devices with limited space.

Common Applications:

• Vacuum Gripper: Large flow vacuum pumps enhance the functionality of vacuum grippers by providing strong, steady suction, ensuring parts are held securely during high-precision manufacturing processes.
• Vacuum Packaging: In vacuum packaging, large flow vacuum pumps efficiently remove air to extend product shelf life and protect against environmental factors.
• Electronics Industry Applications: Vacuum pumps are crucial in electronics manufacturing, where they maintain clean and controlled environments necessary for assembling sensitive components.


Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
