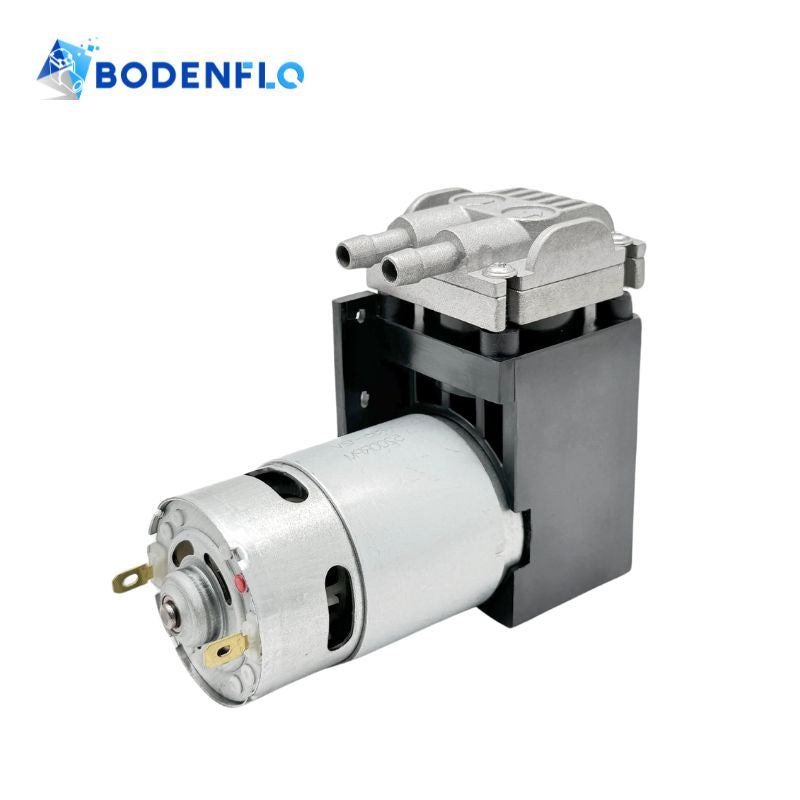

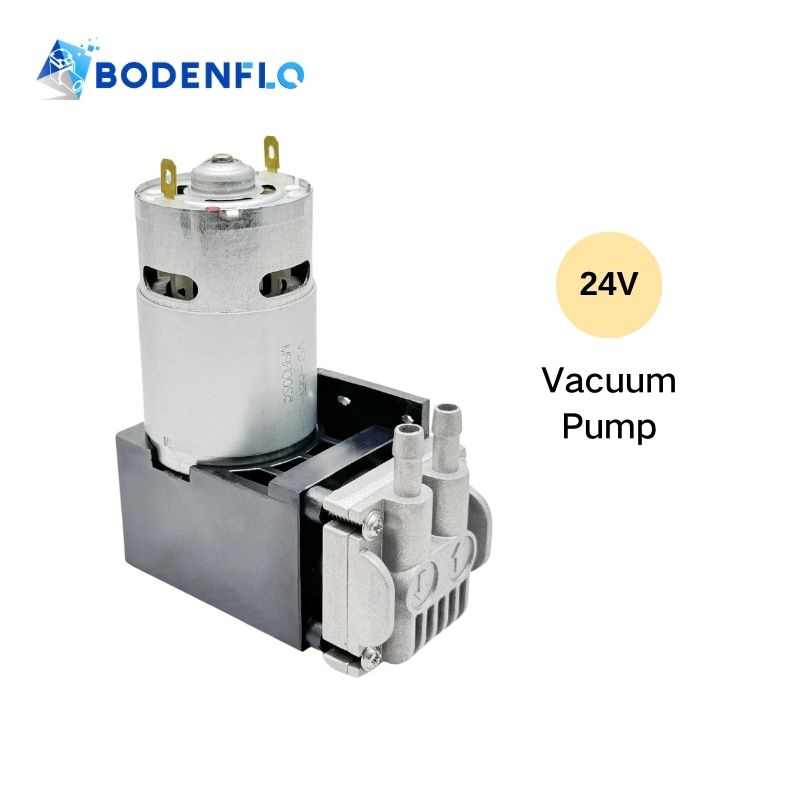

24V Mini Vacuum Pump 18L26L35L Metal Head Piston Vacuum Pump BD-07V-M BODENFLO

BD-07V-M of mini vacuum pumps is specifically designed for optimal performance in a variety of demanding applications. Equipped with a powerful DC brush motor and a durable EPDM diaphragm, this diaphragm vacuum pump operates on a 24V DC power supply, ensuring high efficiency and reliability. With impressive maximum vacuum levels and flow rates, the BD-07V-M series is ideal for medical, laboratory, and industrial use. Its compact design makes it easy to integrate into various systems, while its low noise operation enhances user comfort.

BD-07V-M18L Technical Specifications:

• Name: Mini Vacuum Pump
• Model: BD-07V18L
• Rated Voltage: 24V DC
• Current : ≤1A
• Max Vacuum: >-80 kPa ( -600mmHg /0.08 MPa )
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07V-M26L Technical Specifications:

• Name: Small Vacuum Pump
• Model: BD-07V-M26L
• Rated Voltage: 24V DC
• Current : ≤1.5A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

BD-07V-M35L Technical Specifications:

• Name: DC Vacuum Pump
• Model: BD-07V-M35L
• Rated Voltage: 24V DC
• Current : ≤2A
• Max Vacuum: >-86 kPa (-637mmHg / 0.086 MPa )
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤65-68dB(with silencer can be reduce 1-3dB)
• Dimension: 108x86.6x43mm
• Weight: 600g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Diaphragm Pump:

• User-Friendly: Designed for straightforward installation and operation, allowing seamless integration into various systems.
• Minimal Maintenance: Built for long service life with low wear, resulting in reduced maintenance requirements and minimal downtime.
• Precision Control: Delivers accurate vacuum levels for sensitive applications, ensuring optimal and consistent performance.
• Lightweight and Portable: Compact and easy to transport, ideal for use in mobile and space-constrained applications.
• Wide Vacuum Range: Capable of achieving high vacuum levels, suitable for applications requiring strong and adjustable suction levels.


Common Applications:

• Dental Suction Systems: The BD-07V-M piston pump powers dental suction units, ensuring a clean working area and enhancing patient comfort during procedures.
• Household Appliances: The BD-07V-M piston pump is ideal for vacuum sealing and packaging machines, maintaining freshness in food storage by removing air to prevent spoilage.
• Beauty Equipment: The BD-07V-M piston pump powers beauty devices that require precise suction control, providing effective and gentle performance for treatments like facial cleansing and skin therapy.
• Pick-and-Place: This pump provides reliable suction for automated pick-and-place systems, enabling precise handling and placement of components in manufacturing and assembly processes.


Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
