24V Small Vacuum Water Pump -30kPa 1.5L for Purification Systems BD-04W BODENFLO

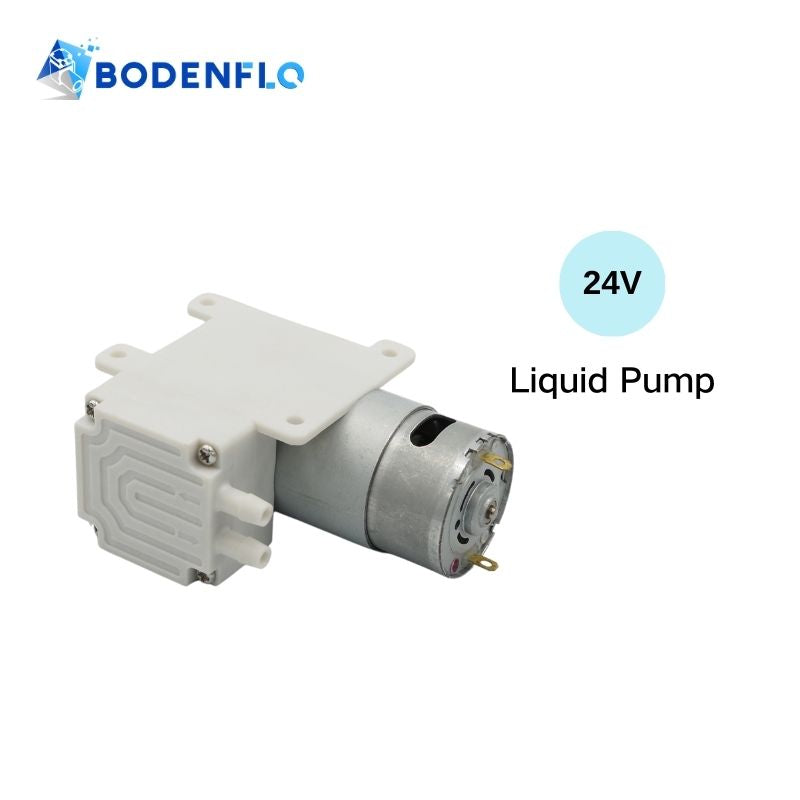

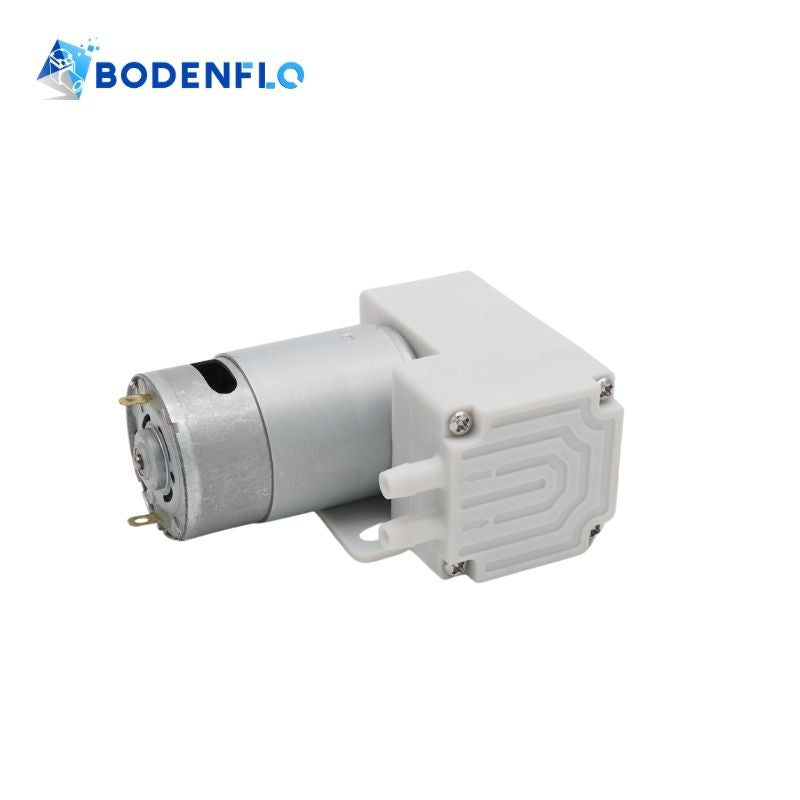

BD-04W Liquid Diaphragm Pump is a compact and high-performance DC pump designed for handling liquids with precision. Operating at 24V, it delivers up to 1.5 L/min flow and creates a maximum vacuum of -30 kPa, making it ideal for water applications. This small water pump is quiet, energy-efficient, and built with a durable DC brush motor, ensuring long service life and reliable operation.

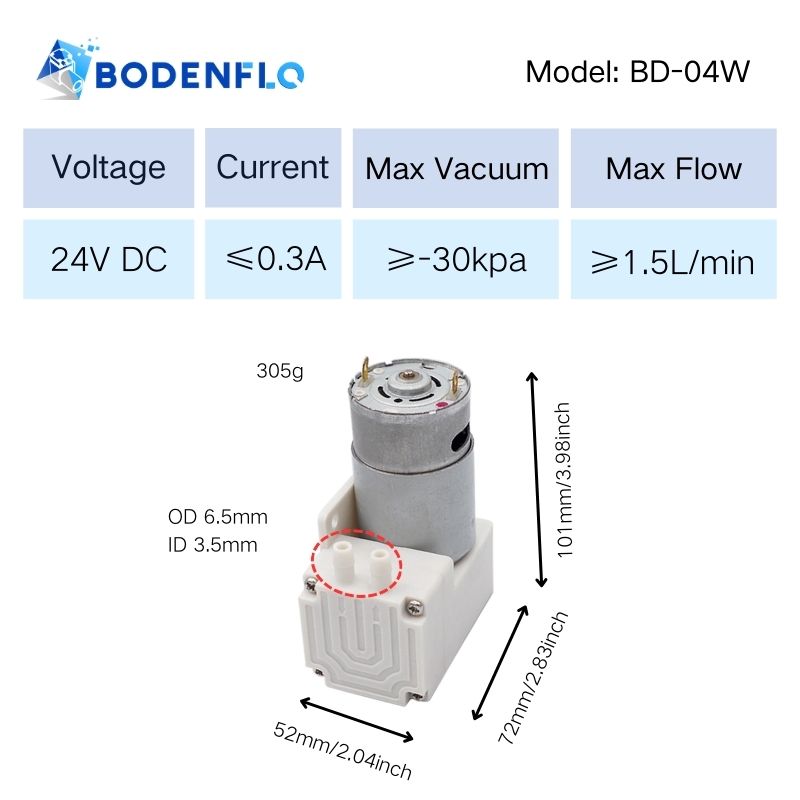

 BD-04W Technical Specifications:

• Name: Small Water Vacuum Pump
• Medium: Water
• Model: BD-04W
• Rated Voltage: 24V DC
• Current : ≤0.3A
• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -4.3511 psi)
• Max Flow: ≥1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brush Motor
• Life time: 1000 Hours
• Noise: ≤55dB
• Dimension: 101x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Liquid Diaphragm Pump:

• Self-Priming Design: Can operate without requiring liquid pre-loading, simplifying startup processes.
• Smooth Operation: Minimizes pulsation, delivering a steady, uninterrupted flow of liquids.
• Leak-Proof Construction: Designed with advanced sealing techniques to prevent leakage during operation.
• Low Heat Generation: Generates minimal heat, allowing it to function efficiently without overheating.
• Enhanced Durability: Reinforced components extend lifespan, making it suitable for long-term use.
• Quiet Efficiency: Maintains a low noise profile while still achieving optimal performance.

Common Applications:

• Water Purification Systems: Plays a key role in circulating and filtering water for home and industrial purification units.
• Medical Liquid Delivery Systems: Ensures precise liquid dosing in medical devices like infusion pumps.
• Solar Water Circulation Systems: Efficiently circulates water in solar heating applications, optimizing energy efficiency.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
