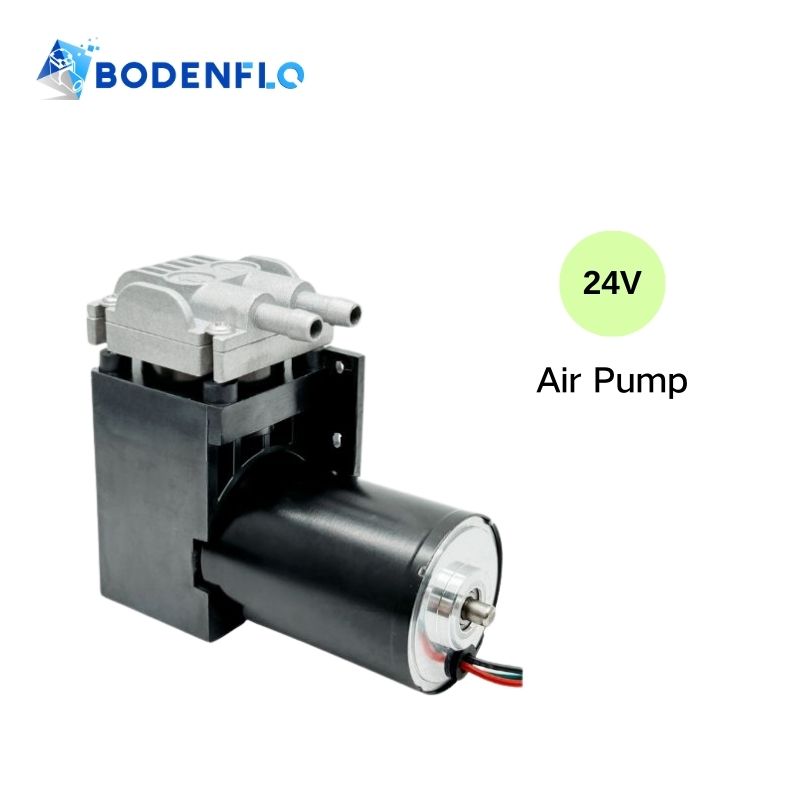

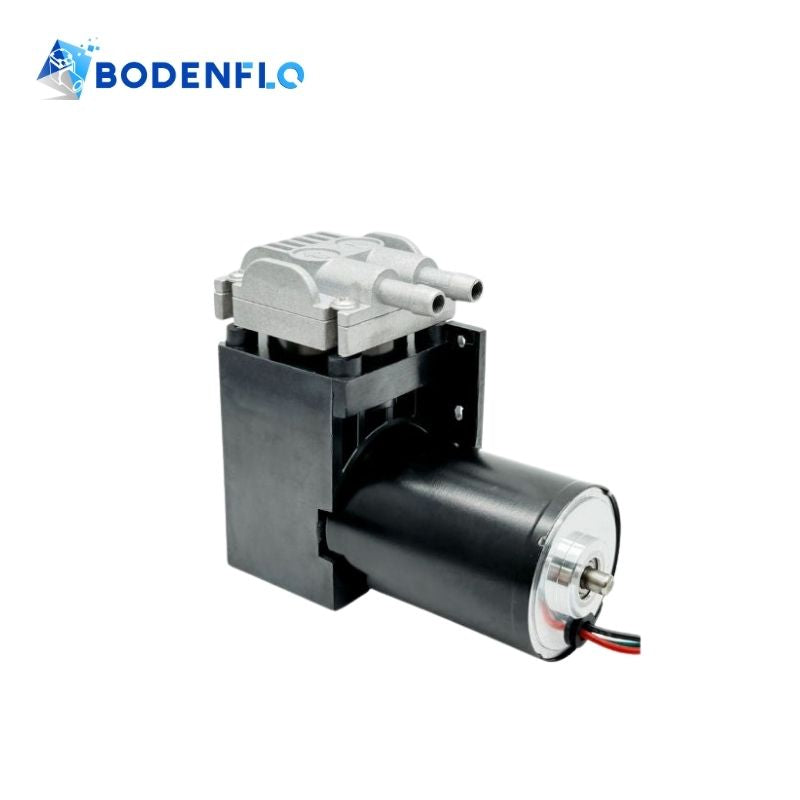

24V Small Piston Pump 5.5-6.5bar Brushless Motor Industrial Use BD-07AB-M 18-35L

The BD-07AB-M small piston pumps is designed for high-pressure applications that require both reliability and compactness. Featuring a 24V DC brushless motor, this pump delivers up to 650 kPa of pressure and 35 L/min of airflow, making it ideal for demanding applications in medical equipment, portable compressors, and ventilation systems. With its metal head construction, the pump ensures exceptional durability and a long service life of up to 3000 hours. Designed for high efficiency, this pump is built to perform consistently in industrial and medical, offering a robust and reliable solution for a variety of demanding tasks.

BD-07AB-M18L Technical Specifications:

• Name: Small Piston Pump
• Model: BD-07AB-M18L
• Rated Voltage: 24V DC
• Current : ≤1A
• Max Pressure: >550 kPa ( 5.5 bar/ 0.55 MPa / 79.7707psi)
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07AB-M26L Technical Specifications:

• Name: DC Air Pump
• Model: BD-07AB-M26L
• Rated Voltage: 24V DC
• Current : ≤1.5A
• Max Pressure: >600 kPa ( 6 bar/ 0.6 MPa / 87.0266psi)
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

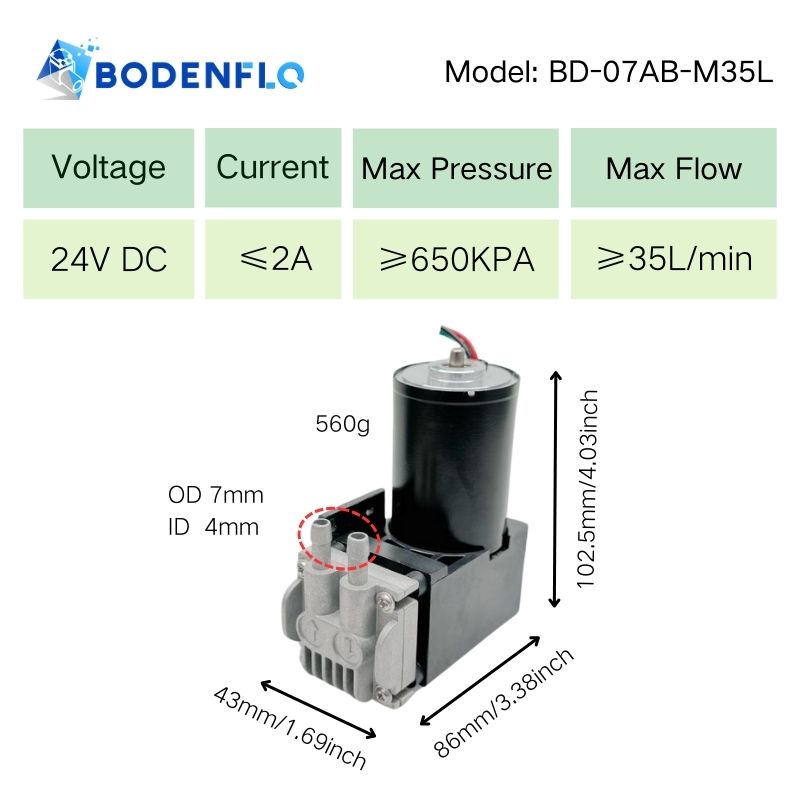

BD-07AB-M35L Technical Specifications:

• Name: Micro Compressor Pump
• Model: BD-07AB-M35L
• Rated Voltage: 24V DC
• Current : ≤2A
• Max Pressure: >650 kPa ( 6.5 bar/ 0.65 MPa / 94.2745psi)
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 3000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 102.5x86x43mm
• Weight: 560g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

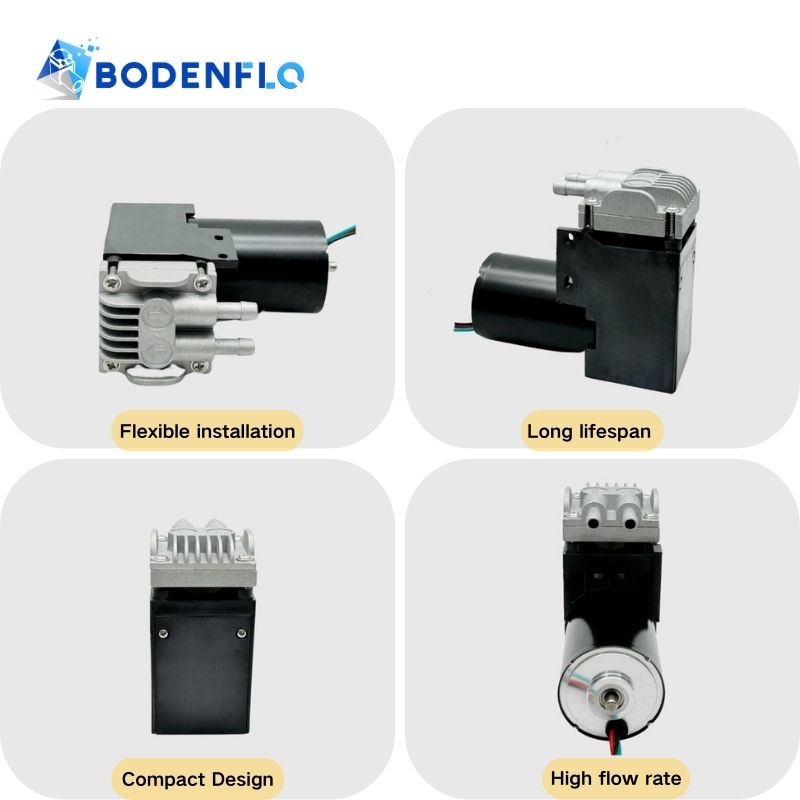

Key Features of Small Piston Pump:

• Compact and Durable: The metal head construction ensures robust performance in tight spaces.
• Energy Efficient: Powered by a brushless DC motor for lower energy consumption.
• Low Maintenance: Designed to require less maintenance over its extended lifespan.
• High Pressure Capability: Delivers reliable performance for demanding high-pressure tasks.
• High Temperature Resistance: Built to perform in environments with higher temperature ranges, suitable for various industrial and medical settings.

Common Applications:

• Coffee Machine:  Used in coffee machines to pressurize the air tank, which is then released when needed to ensure consistent pressure for brewing.
• Massage Equipment: Used in massage devices to generate air pressure for simulating deep tissue and relaxation massage techniques.
• Inflatable Devices: Used in inflatable products such as air mattresses and sports equipment, providing convenient inflation solutions.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
