24V -645mmHg Brushless Piston Pump Suction Flow 18L 26L 36L BD-07VB-M BODENFLO

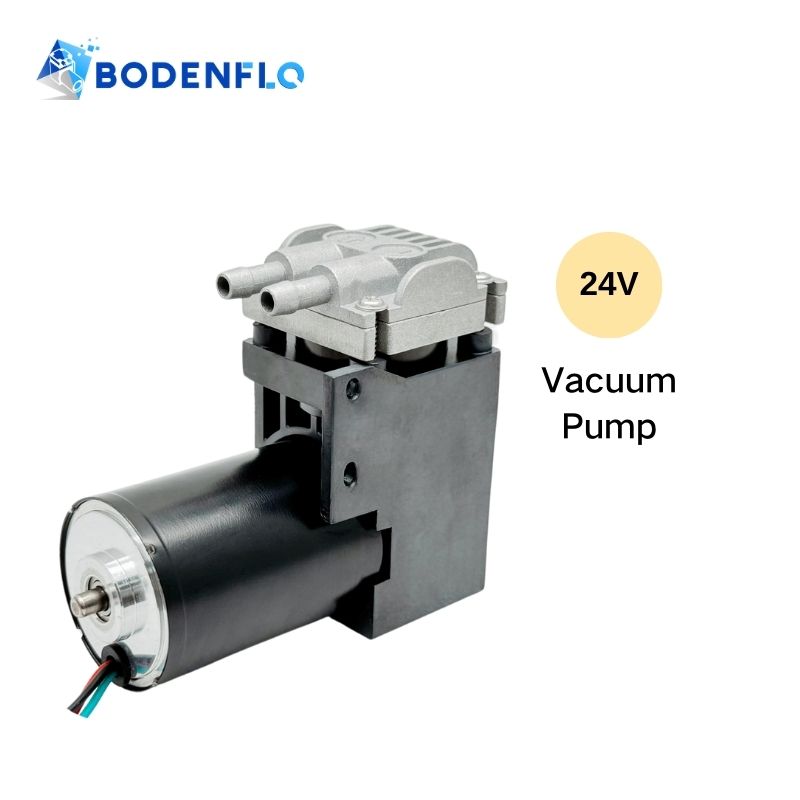

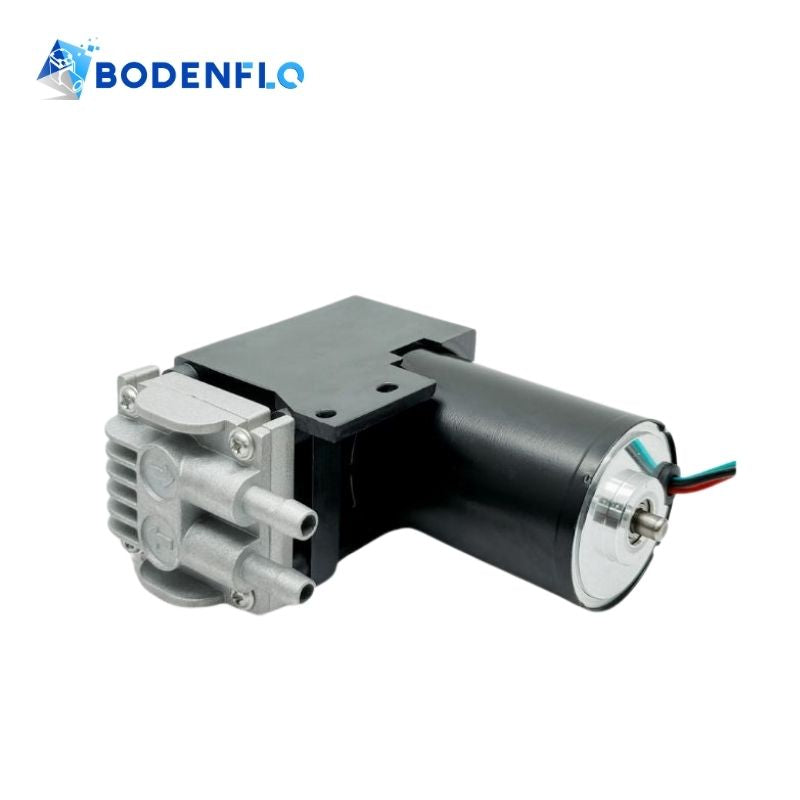

BD-07VB-M Small Piston Vacuum Pump is designed for high-performance vacuum applications, offering reliable suction with its 24V DC brushless motor. Ideal for medical, industrial, and beauty uses, it features a metal head construction for enhanced durability and a long service life of up to 3000 hours. With various flow rates (18 L/min, 26 L/min, 35 L/min), it ensures efficient operation across multiple applications while maintaining compactness and energy efficiency.

BD-07VB-M18L Technical Specifications:

• Name: Small Piston Vacuum Pump
• Model: BD-07VB-M18L
• Rated Voltage: 24V DC
• Current : ≤1A
• Max Vacuum: >-80 kPa ( -600mmHg /0.08 MPa )
• Max Flow: >18 L/min (18 LPM / 1080 L/H)
• Noise:★

BD-07VB-M26L Technical Specifications:

• Name: 24V Vacuum Pump
• Model: BD-07VB-M26L
• Rated Voltage: 24V DC
• Current : ≤1.5A
• Max Vacuum: >-85 kPa (-637mmHg / 0.085 MPa )
• Max Flow: >26 L/min (26 LPM / 1560 L/H)
• Noise:★★

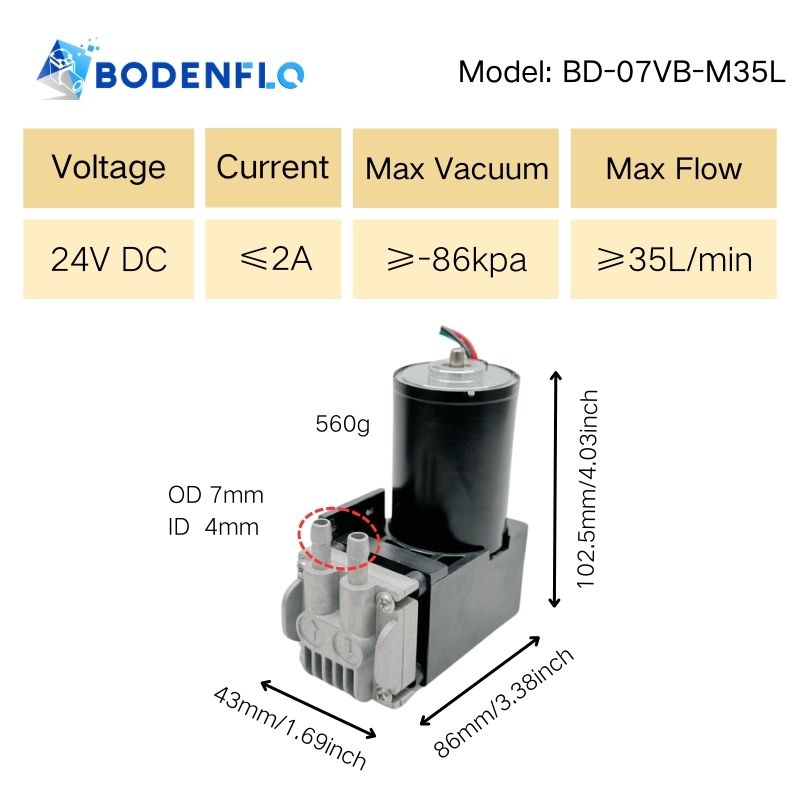

BD-07VB-M35L Technical Specifications:

• Name: Compressor Vacuum Pump
• Model: BD-07VB-M35L
• Rated Voltage: 24V DC
• Current : ≤2A
• Max Vacuum: >-86 kPa (-645mmHg / 0.086 MPa )
• Max Flow: >35 L/min (35 LPM / 2100 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brushless Motor
• Life time: 3000 Hours
• Noise: ≤65-70dB(with silencer can be reduce 1-3dB)
• Dimension: 102.5x86x43mm
• Weight: 560g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

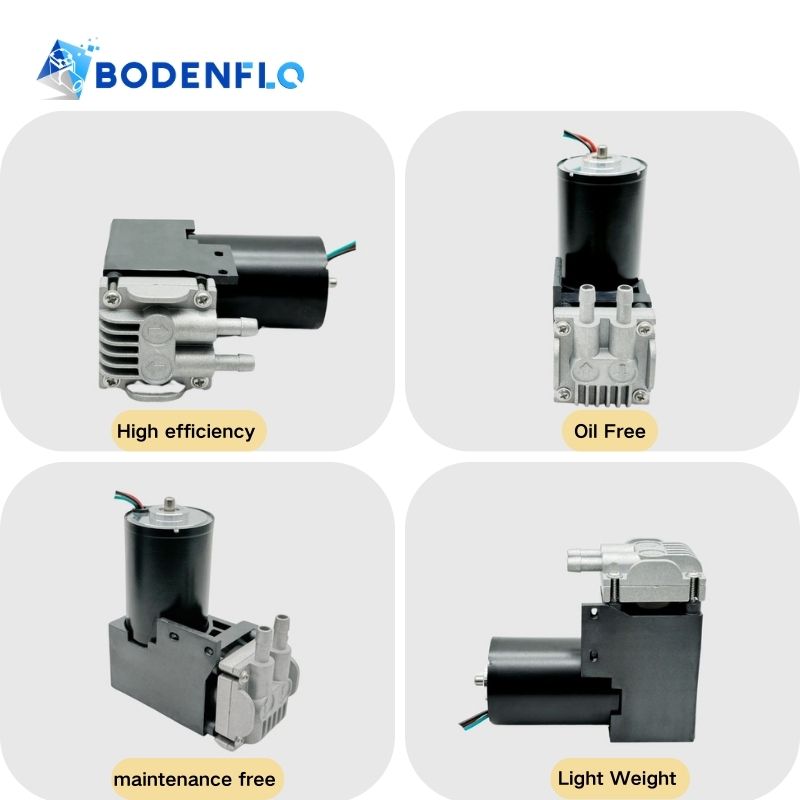

Key Features of Small Piston Vacuum Pump:

• High Vacuum Power: Provides strong suction, ideal for precision applications requiring reliable vacuum pressure.
• Compact & Durable Design: Robust metal head construction ensures durability without compromising on size, perfect for space-constrained environments.
• Low Power Consumption: Designed to operate efficiently, helping reduce overall energy usage and operational costs.
• Maintenance-Free: Fewer moving parts compared to traditional pumps, leading to less frequent maintenance needs.
• Versatile Flow Options: Offers flexible performance with different flow rate configurations to meet diverse application needs.

Common Applications:

• Dental Suction Equipment: Provides suction for dental vacuums to remove fluids and debris during procedures.
• Robotic Precision Handling: Used in robotics for safely gripping delicate items like glass or electronic components, ensuring efficient and damage-free handling in industries.
• Facial Vacuum Therapy: Used in facial treatment devices to provide gentle suction for removing impurities, improving circulation, and reducing the appearance of fine lines.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
